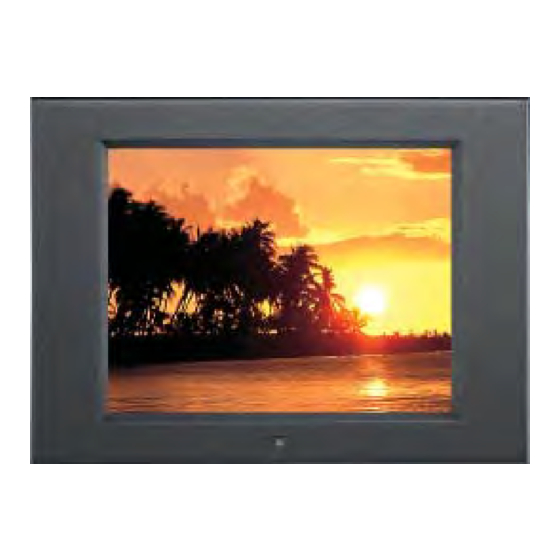

- Page 1 LCD display solutions User Manual 8.4” LCD LCD-AP8 Aluminum front bezel LCD-NAP8 Front NEMA4 / IP65 LCD-OP8 Universal Mounting Open Frame UM-UV-621-8-Q217V3 www.rackmountsales.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > LCD-AP8 / NAP8 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > LCD-OP8 Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Lcd-Ap8 / Nap8
< Part 1 > < 1.1 > Package Content - LCD-AP8 / NAP8 8.4" LCD Display LCD-AP8 / NAP8 8.4" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack... - Page 6 < 1.2 > Structure Diagram - LCD-AP8 / NAP8 Front view Rear case Rear view LCD panel 3mm protective glass ( NEMA 4 / IP65 front protection for NAP series ) 6mm aluminum front bazel Audio speaker ( for Audio or TV option )
- Page 7 < 1.2 > Dimension - LCD-AP8 / NAP8 8.4” LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-8-Q217V3 www.rackmountsales.com...
- Page 8 < 1.3 > Panel Mount Installation - LCD-AP8 / NAP8 M4*50mm screw M4*6mm screw Mounting bracket x 4 pcs x 4 pcs x 2 pcs Hardware set part no. UV-BK#1 Steps ■ Install 2 mounting brackets with 4 x M4*6mm screws ■...
- Page 9 < 1.3 > VESA mount Installation - LCD-AP8 / NAP8 8.4” LCD Display M4 screw VESA mount ( 75*75mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-8-Q217V3 www.rackmountsales.com...
-
Page 10: Part. 2 > Lcd-Op8
< Part 2 > < 2.1 > Package Content - LCD-OP8 LCD-OP8 8.4" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power AV1.2 upgrade I/O Audio Power S-Video BNC in - in - out PC Video Options :... - Page 11 < 2.2 > Structure Diagram - LCD-OP8 8.4" LCD Display Front view Rear view Rear case LCD panel Audio speaker ( for Audio or TV option ) Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...
- Page 12 < 2.2 > Dimension - LCD-OP8 Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-8-Q217V3 www.rackmountsales.com...
- Page 13 < 2.3 > Installation - LCD-OP8 8.4” LCD Display ( I ) Universal mount ( II ) VESA mount ( 75*75mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-8-Q217V3 www.rackmountsales.com...
-
Page 14: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations LCD-AP8/NAP8 LCD-OP8 Mechanical Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 75 x 75mm 75 x 75mm Other Mounting Panel mount Universal mount... - Page 15 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random LCD-AP8/NAP8 LCD-OP8 Physical Specifi cation Product ( W x D x H ) 264.7 x 62.8 x 192 mm 261.7 x 56.8 x 189 mm 10.4 x 2.5 x 7.6 inch...
-
Page 16: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... -
Page 17: Part 4 > Options
< Part 4 > Options 8.4” LCD Display < 4.1 > Option Table Options LCD-AP/NAP LCD-OP8 S-Video + Composite ( BNC ) Audio Touchscreen DC Power TV * Remote Controller ( 1 ) AV1.2 upgrade comes with RC-2 remote controller. ( 2 ) TV option comes with RC-2 remote controller. - Page 18 < 4.2 > AV1.2 Upgrade Options : - AV ( S-Video + Composite, BNC - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video BNC in - in - out PC Video AV1.2 upgrade option comes with RC-2 remote controller x 1 ( please refer to P.18 ) P.14...
- Page 19 < 4.3 > Options : Touchscreen & driver 8.4” LCD Display 8.4" USB Touchscreen Specifi cation Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Input Type Finger or Stylus Finger Resolution 2048 x 2048 2048 x 2048 Touch Point Accuracy Response Speed 15 ms...
- Page 20 < 4.3 > Options : Touchscreen & driver TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.eeti.com.tw/drivers_Win.html Step 2. Double click the Setup.exe Step 3.
-
Page 21: Tv ( Analog )
< 4.5 > Options : TV ( Analog ) 8.4” LCD Display Audio Power S-Video BNC in - in - out PC Video For TV option : ( 1 ) 1 x RC-2 remote controller included. ( 2 ) Casing dimensions will be changed. P.17 UM-UV-621-8-Q217V3 www.rackmountsales.com... - Page 22 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER EXIT BACK SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-UV-621-8-Q217V3 www.rackmountsales.com...
