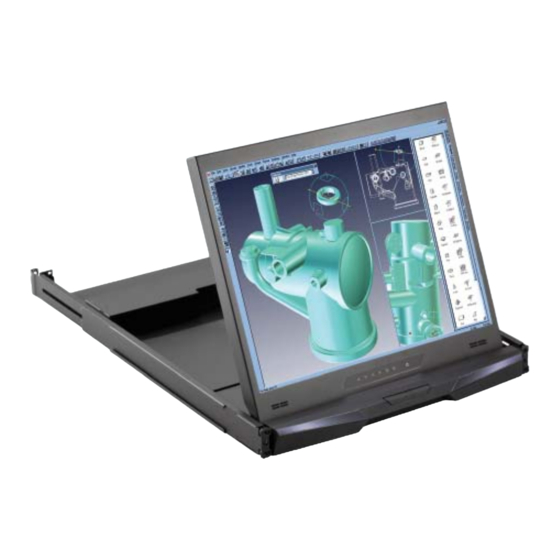

- Page 1 KVM switch and rackmount screen technology User Manual 20” LCD 1600 x 1200 RMD-151-20 1U LCD Drawer Options : - AV / HDMI / Audio - DC power UM-CV-751-RMD-20-Q113V1 www.rackmountsales.com...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 4 Contents < Part. 1 > RMD-151-20 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 >...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 6 < Part 1 > < 1.1 > Package Content RMD-151-20 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 7 Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm 13.5 kg 17.5 kg RMD-151-20 17.3 x 25.6 x 1.73" 23.4 x 33.9 x 5.5” 30 lb 39 lb The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, AV, audio &...
- Page 8 < 1.3 > Installation - How to install 1U 20" LCD Tray Step ■ Attach the left and right mounting bracket to Rear side Right bracket rack 19" mounting rails. ■ Adjust the mounting bracket to fi t your rack. ■...
- Page 9 < Part 2 > < 2.1 > Product Specifi cations RMD-151-20 Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. )
- Page 10 Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to û °C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 439.6 x 650 x 44 mm Specifi...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) RMD-151-20 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control...
- Page 12 < 2.2 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 13 < Part 3 > < 3.1 > Options : RMD-151-20 - HDMI ( HDMI 1.1, CEA-861-D ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) For AV2.2 upgrade, either HDMI or DVI-D is provided.
- Page 14 < 3.3 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. UM-CV-751-RMD-20-Q113V1 www.rackmountsales.com...
