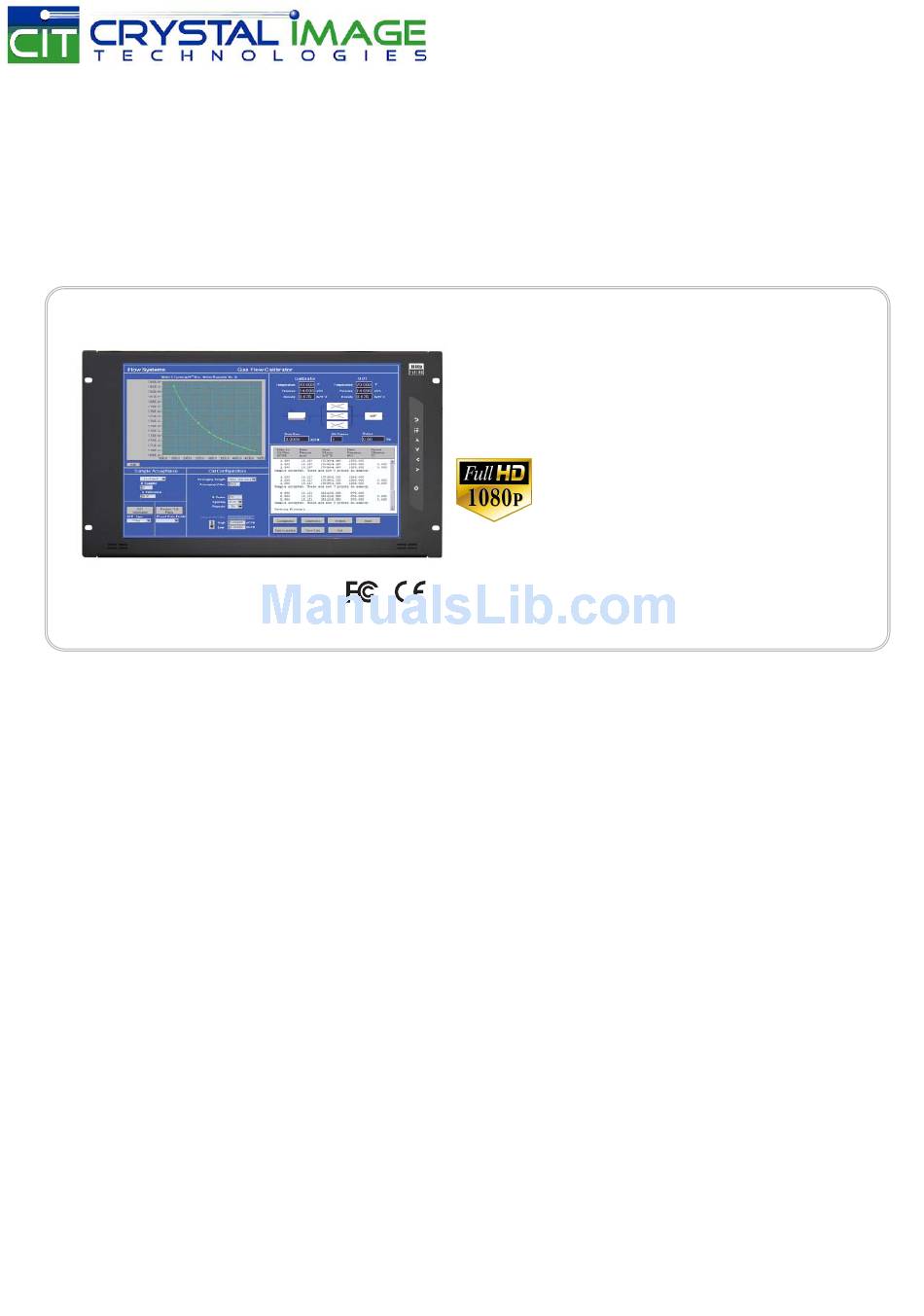

Page 1: User Manual

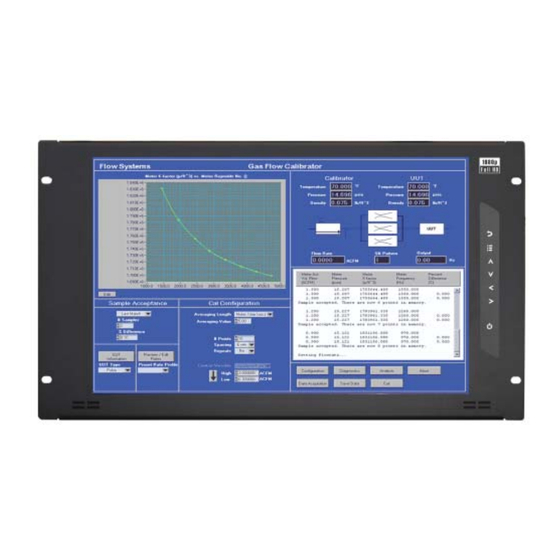

KVM switch and rackmount screen technology User Manual 17” FHD 1080p LCD RMP-161-F17 6U Rackmount Display Panel Options : - SDI / MCS - DC power - Touchscreen - MIL-type or lockable connector UM-CV-751-RP-F17-Q113V1 www.rackmountsales.com... -
Page 2: Legal Information
Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Table Of Contents
Contents < Part. 1 > RMP-161-F17 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD / Remote Controller Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.8 - 9... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Part. 1 > Rmp-161-F17
< Part 1 > < 1.1 > Package Content RMP-161-F17 RMP-161-F17 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 6 (W x D x H) Weight Weight 480 x 48 x 266 mm 529 x 124 x 451 mm 4.5 kg 6 kg RMP-161-F17 18.9 x 1.9 x 10.5 inch 20.8 x 4.9 x 17.8 inch 9.9 lbs 13.2 lbs UM-CV-751-RP-F17-Q113V1 www.rackmountsales.com...
-
Page 7: Installation
< 1.3 > Installation RMP-161-F17 Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. -
Page 8: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 600:1 Color 1.07 Billion, 10-bit... - Page 9 RMP-161-F17 Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 480 x 48 x 266 mm Specifi...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) RMP-161-F17 Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
-
Page 12: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 13 RMP-161-F17 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen...
-
Page 14: Options : 3G / Hd / Sd-Sdi Input
< Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty. -
Page 15: Part. 3 > Options
< 3.2 > Options : MCS RMP-161-F17 ( Multi-display Control ) More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of various CyberView LCD display up to 64 units. -
Page 16: Av3.0 Upgrade
< 3.3 > AV3.0 Upgrade Options : - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Audio DVI-D Power S-Video HDMI out - in - in Video PC P.12 UM-CV-751-RP-F17-Q113V1... -
Page 17: Options : Touchscreen & Driver
< 3.4 > Options : Touchscreen & driver RMP-161-F17 F17" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Method Stylus or Finger Activation Force ≤ 50g / Stylus=R0.8 Durability 10 million touches Response Time 15 ms Optical Transmittance 80% ±... - Page 18 < 3.5 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
-
Page 19: Mil-Type Or Lockable Connector
< 3.6 > Options : MIL-type or Lockable Connector RMP-161-F17 Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl... - Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. UM-CV-751-RP-F17-Q113V1 www.rackmountsales.com...
