Summary of Contents for Crystal Image Technologies AP-F17

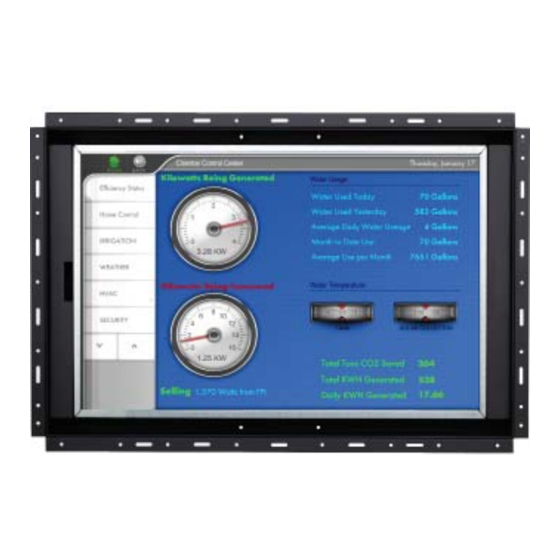

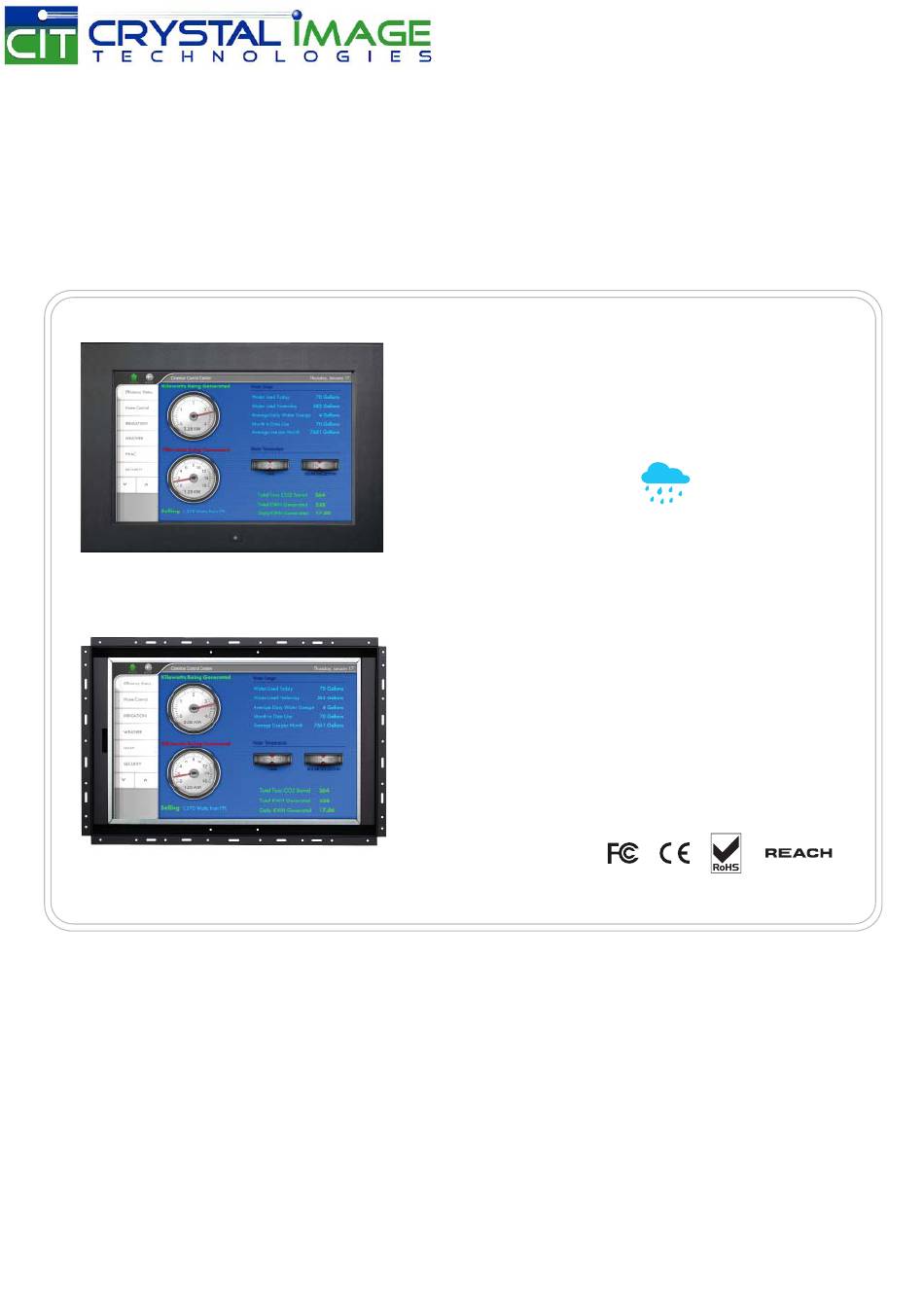

- Page 1 LCD display solutions User Manual 17” FHD LCD AP-F17 Aluminum front bezel NAP-F17 Front NEMA4 / IP65 OP-F17 Universal Mounting Open Frame...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > AP-F17 / NAP-F17 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > OP-F17 Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Ap-F17 / Nap-F17
< Part 1 > < 1.1 > Package Content - AP / NAP-F17 17" FHD LCD Display AP-F17 / NAP-F17 17” FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Mounting hardware X 1 pack... - Page 6 < 1.2 > Structure Diagram - AP / NAP-F17 Front view AP-F17 NAP-F17 Rear view Rear case LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model (W x D x H)
- Page 7 < 1.2 > Dimension - AP / NAP-F17 17" FHD LCD Display Front View Side View AP-F17 NAP-F17 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F17-Q215V1 www.rackmountsales.com...
- Page 8 < 1.3 > Panel Mount Installation - AP / NAP-F17 M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
- Page 9 < 1.3 > VESA mount Installation - AP / NAP-F17 17" FHD LCD Display M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-F17-Q215V1 www.rackmountsales.com...
- Page 10 < Part 2 > < 2.1 > Package Content - OP-F17 OP-F17 17” FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Basic I/O Power Power DVI-D DVI-D AV3.0 upgrade I/O with advanced features Audio Power S-Video DVI-D...
- Page 11 < 2.2 > Structure Diagram - OP-F17 17” FHD LCD Display Front view OP-F17 Rear case Rear view LCD panel Audio speaker, pair Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...
-
Page 12: Part. 2 > Op-F17
< 2.2 > Dimension - OP-F17 Front View Side View OP-F17 UNIT : mm Rear View 1mm = 0.03937 inch Bottom View UM-UV-621-F17-Q215V1 www.rackmountsales.com... - Page 13 < 2.3 > Installation - OP-F17 17” FHD LCD Display ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-F17-Q215V1 www.rackmountsales.com...
-
Page 14: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations Mechanical AP / NAP-F17 OP-F17 Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount Universal mount Protection 3mm protective glass... - Page 15 17” FHD LCD Display Safety FCC & CE certifi ed Regulatory Environmental RoHS2 & REACH compliant Operating Temperature 0 to 55°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical...
-
Page 16: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... -
Page 17: Part 4 > Options
< Part 4 > Options 17” FHD LCD Display < 4.1 > Option Table Options AP / NAP SDI *** HDMI * S-Video * + Composite ( BNC ) Audio Touchscreen MCS multi-display control DC Power MIL-type / lockable connector TV ( Analog ) * About SDI ( 1 ) The AD board will be upgraded to version 3.0, and this comes standard with HDMI, DVI-D,... - Page 18 < 4.2 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 19 < 4.3 > Options : MCS 17" FHD LCD Display More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
- Page 20 < 4.4 > AV3.0 Upgrade Options : ( HDMI 1.1, CEA-861-D ) - HDMI ( S-Video + Composite, BNC ) - AV ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Audio Audio Power S-Video DVI-D...
- Page 21 How to Use RC-1 Remote Controller 17" FHD LCD Display Switches on or off the TV POWER Turn on or off the speaker MUTE Switch to AV mode Select channels. For channel numbers 10 and above, enter the second digit within two seconds. 0- 9 Increase or decrease the speaker volume V + / -...
- Page 22 < 4.5 > Options : Touchscreen & driver F17" USB Touchscreen Specifi cation e-Resistive Model 5-Wire Resistive Technology Single Touch Point Finger or Stylus Input Type 2048 x 2048 Resolution Touch Point Accuracy 15 ms Response Speed ≤ 50 g Activation Force Surface Hardness 80% ±...
- Page 23 < 4.5 > Options : Touchscreen & driver 17" FHD LCD Display TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.eeti.com.tw Step 2.
- Page 24 < 4.6 > Options : DC Power Model 110 ~ 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 40 mA...
- Page 25 < 4.7 > Options : MIL-type or Lockable Connector 17" FHD LCD Display Input Part no. MIL Standard MS3470W8-33P MIL - DTL - 26482 DC Power MIL - type ( Male ) Connector MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
-
Page 26: Tv ( Analog )
< 4.8 > Options : TV ( Analog ) Audio Power S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and RC-2 remote controller. - Page 27 How to Use RC-2 Remote Controller 17” FHD LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-UV-621-F17-Q215V1 www.rackmountsales.com...
