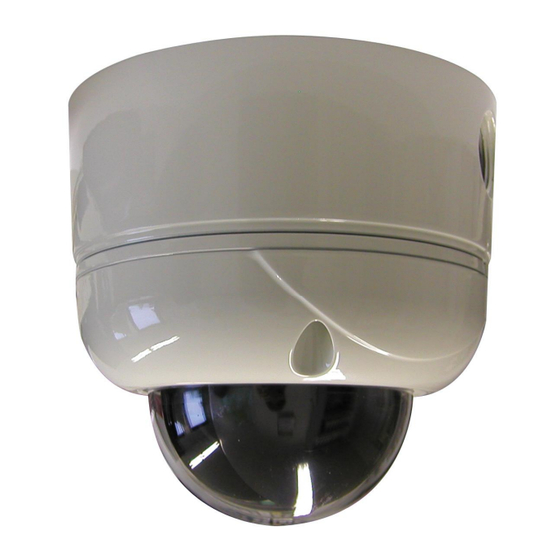

Santec VDC-610ID User Manual

Day/night speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

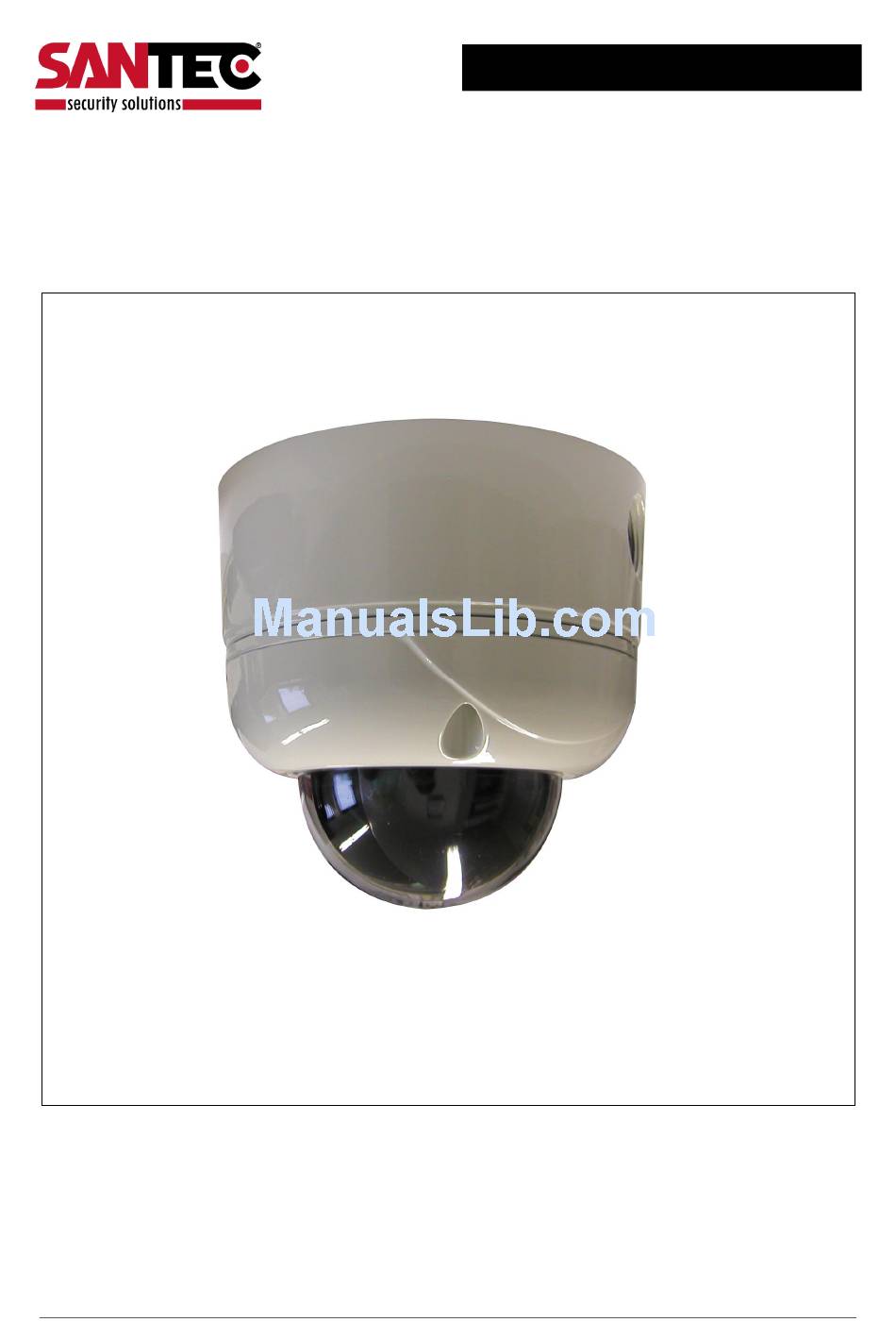

USER MANUAL
Day/Night Speed Dome Camera
Model
VDC-610ID
Version 1
/ 2008
RN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDC-610ID and is the answer not in the manual?

Questions and answers

Related Manuals for Santec VDC-610ID

Summary of Contents for Santec VDC-610ID

  • Page 1 USER MANUAL Day/Night Speed Dome Camera Model VDC-610ID Version 1 / 2008...
  • Page 2 – is forbidden. Errors and technical alterations are omitted. SANTEC is a registered trade mark of SANYO VIDEO Vertrieb AG Germany. Other names of firms or products are trade marks or registered trade marks of particular owner. They are not in any coherence with SVV AG.

  • Page 3: Table Of Contents

    U ser ma nu a l / VD C - 6 10I D Table Of Contents Warning & Caution What’s in the Box? General Features Names of Each Part Installation A. Connection Methods B. Mount Quick Operating Keys Diagnostic OSD Menu Setting A.

  • Page 4: Warning & Caution

    U ser ma nu a l / VD C - 6 10I D WARNING & CAUTION If you fail to read this information and handle the product incorrectly, death or serious injury may occur. The unit should be installed by the trained Always stop using when the product emits smoke or abnormal heat.

  • Page 5: General Features

    U ser ma nu a l / VD C - 6 10I D GENETAL FEATURES 100X Zoom Mini Speed Dome Quick Operation Keys 10X Optical Zoom with 10X digital zoom This camera provides quick functional keys in other to be easily controlled by any other controller or DVR.

  • Page 6: Names Of Each Part

    U ser ma nu a l / VD C - 6 10I D NAMES OF EACH PART 1. Surface Mount Adaptor 2. Cap Screw ( PT3/4 , 2EA ) 3. Dip Switch 4. Terminal Block 5. Main body _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ - S eit e 6 -...

  • Page 7: Installation

    INSTALLATION U ser ma nu a l / VD C - 6 10I D A. CONNECTION METHODS Loose the screws on the domes cover and remove it from the base. (Screws won’t be removed) Loose the screws which connect mount cover and Main base and separate dome cover from the main base.

  • Page 8: Mount

    U ser ma nu a l / VD C - 6 10I D B. MOUNT 1. Fix the surface mount adaptor with 4pcs of screws on the place where you want to install. (FIG.4) 2. When you use pipe, please note the standard size of pipe. (FIG.5) 3.

  • Page 9: Quick Operating Keys

    U ser ma nu a l / VD C - 6 10I D QUICK OPERATING KEYS As the merit of this product, it has lots of function keys to support the following functions. 1-64 + preset and 101~200 + preset are used for preset and 65-100 + preset used for functions. For example, to enter OSD MENU, press the button 95 +PRESET.

  • Page 10: Diagnostic

    U ser ma nu a l / VD C - 6 10I D DIAGNOSTIC When Power on, DIAGONOSTIC is operated. The following messages are displayed on the monitor. CAMERA ID : 001 BAUD RATE : 2400 BPS WAITING……… PAN ORIGIN CHECK OK TILT ORIGIN CHECK OK...

  • Page 11: Osd Menu Setting

    U ser ma nu a l / VD C - 6 10I D OSD MENU SETTING ready to operate. A. OSD MENU TABLE _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ - S eit e 11 -...

  • Page 12: Dome Set

    U ser ma nu a l / VD C - 6 10I D To enter OSD Menu, press the button 95 + PRESET. MAIN MENU DOME SETUP CAMERA SET AUTO SCAN TOUR PRAVACY PATTERN ALARM SECTOR EXIT * Use the joystick “up down” to move the position and “left right” to make selection B.
  • Page 13 U ser ma nu a l / VD C - 6 10I D B-3. DOME SET - MANUAL SPEED Manual Speed of Pan/Tilt is selectable from 10°/sec up to 200°/sec. The default setting is 100°/sec. B-4. DOME SET - AUTO FLIP Auto Flip is available and the default setting is OFF.
  • Page 14 U ser ma nu a l / VD C - 6 10I D A. OSD MAIN MENU TABLE (PAGE 11) The default setting is BLANK. ENTER PASSWORD BY ENTERING PRESET CODE PASSWORD *** CONFIRM *** Press any number from 001~255 with preset button on password blank and again it on confirm blank. Then “CONFIRMED”...
  • Page 15 U ser ma nu a l / VD C - 6 10I D B-8-4. DOME SET – [NEXT PAGE] – [SYSTEM STATUS] This page shows the information of this camera. SYSTEM STATUS PROTOCOL : PELCO D, P BAUD RATE : 2400 BPS DEFAULT SETTING FIRMWARE VER.

  • Page 16: Camera Set

    U ser ma nu a l / VD C - 6 10I D this process, the menu is returned to the previous page. * [PRESET CLEAR], [SECTOR CLEAR], [PRIVACY CLEAR], [PATTERN CLEAR] are same as [TOUR CLEAR]. LOAD OPTIMIZED DEFAULT ALL DATA INITIALIZING ARE YOU SURE? YES NO - To clear all data and wants returning to factory default, move joystick to the right direction when cursor is...
  • Page 17 U ser ma nu a l / VD C - 6 10I D C-2. CAMERA SET - MIRROR This feature shows left and right exchanged picture image like mirror. The default setting is OFF. (TS-PTZ10X) C-3. CAMERA SET – APERTURE Aperture enhances picture details by increasing gain of the caemra and sharpens the edges in the picture.

  • Page 18: Preset Set

    U ser ma nu a l / VD C - 6 10I D C-9. CAMERA SET – DSS MODE (DIGITAL SLOW SHUTTER) If DSS turns on, digital slow shutter is working. Per second, the electronic shutter will remain open to receive some more lighting.

  • Page 19: Auto Scan Set

    U ser ma nu a l / VD C - 6 10I D E. AUTO SCAN SET * 66 + preset button is working as AUTO SCAN after setting. AUTO SCAN SET START ANGLE : XXX.X.XX.X END ANGLE : XXX.X.XX.X DIRECTION : CW ENDLES...

  • Page 20: Tour Set

    U ser ma nu a l / VD C - 6 10I D cursor is at SAVE AND EXIT. E-8. AUTO SCAN – EXIT To escape this page, move joystick to the right direction. F. TOUR SET 8 Programmable tours can be set and each tour is available to set up to 64 preset steps. After setting the data to the each tour group, 71~78 + preset buttons are working as group tour # 1~8 TOUR SET TOUR NO...

  • Page 21: Privacy Set

    U ser ma nu a l / VD C - 6 10I D joystick to the right or left direction to select tour speed. The default setting is 200°/S. F-7. TOUR SET – SAVE To save the memorized data and escape this page, move joystick to the right direction when cursor is at SAVE.

  • Page 22: Pattern Set

    U ser ma nu a l / VD C - 6 10I D G-4. PRIVACY SET – SAVE After setting the privacy masking zone, to save the data, move joystick to the right direction when the cursor is on SAVE. After saving the data, the cursor moves to PRIVACY NO.2 automatically to prepare the next privacy masking zone.

  • Page 23: Alarm Set

    U ser ma nu a l / VD C - 6 10I D H-5. PATTERN SET –EXIT To escape this page, move joystick to the right direction I. ALARM SET 4 Alarm inputs are available and each alarm is activating to presets, group tours or patterns. ALARM SET ALARM NO : 01...

  • Page 24: Sector Set

    U ser ma nu a l / VD C - 6 10I D J. SECTOR SET Up to 8 programmable sectors are available with 16 characters. This feature is useful to memory the certain location such as parking zone or so on. When camera goes through this area, it shows the letter you memorized.

  • Page 25: Dip Switch Setting

    U ser ma nu a l / VD C - 6 10I D DIP SWITCH SETTING to operate. Mini Speed Dome camera provides up to 63 camera ID and it’s an adjustable ID with 1 of Dip switch. Open the camera case to set ID using DIP SW1. * Factory default: Camera ID = 1, PELCO-D Termination Baud rate...

  • Page 26: Protocol Setting

    U ser ma nu a l / VD C - 6 10I D B. PROTOCOL dip switches are used for Protocol Setting. Factory Default: Pelco-D or Pelco-P ( Auto detection) DIP SW1- 7 DIP SW1- 8 Pelco-D or Pelco-P C. BAUD RATE SETTING The 9 Dip Switch is used for BAUD RATE setting.

  • Page 27: Trouble Shooting

    U ser ma nu a l / VD C - 6 10I D TROBLE SHOTING If you have trouble in operating in your camera, refer to the following. PROBLEM SOLUTION Check if the power supply is DC12V. Check if RS-485 communication cable is connected correctly. No operating Check camera ID setting.

  • Page 28: Specification

    U ser ma nu a l / VD C - 6 10I D SPECIFICATIONS MODEL VDC-610ID 360˚ Endless Pan Rotation Angle 10˚ ~ 200˚/sec Manual Max 200˚ /sec Pan Speed Preset 0˚ ~ 90˚ PAN /TILT Tilt Rotation Angle 10˚ ~ 200˚/sec Manual Max 200˚...

  • Page 29: Dimensions

    U ser ma nu a l / VD C - 6 10I D DIMENSIONS _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ - S eit e 29 -...
  • Page 30 U ser ma nu a l / VD C - 6 10I D NOTES _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ - S eit e 3 0 -...
  • Page 31 U ser ma nu a l / VD C - 6 10I D NOTES _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ - S eit e 3 1 -...
  • Page 32 Y ou r d ea l er: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ w w w .
