Installation Guide

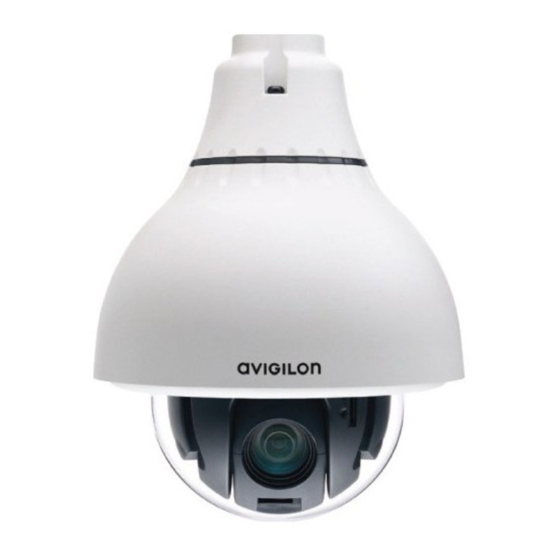

Avigilon™ High Definition H.264 PTZ IP Dome Camera Models:
1.0W-H3PTZ-DP20 and 2.0W-H3PTZ-DP20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2.0W-H3PTZ-DP20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avigilon 2.0W-H3PTZ-DP20

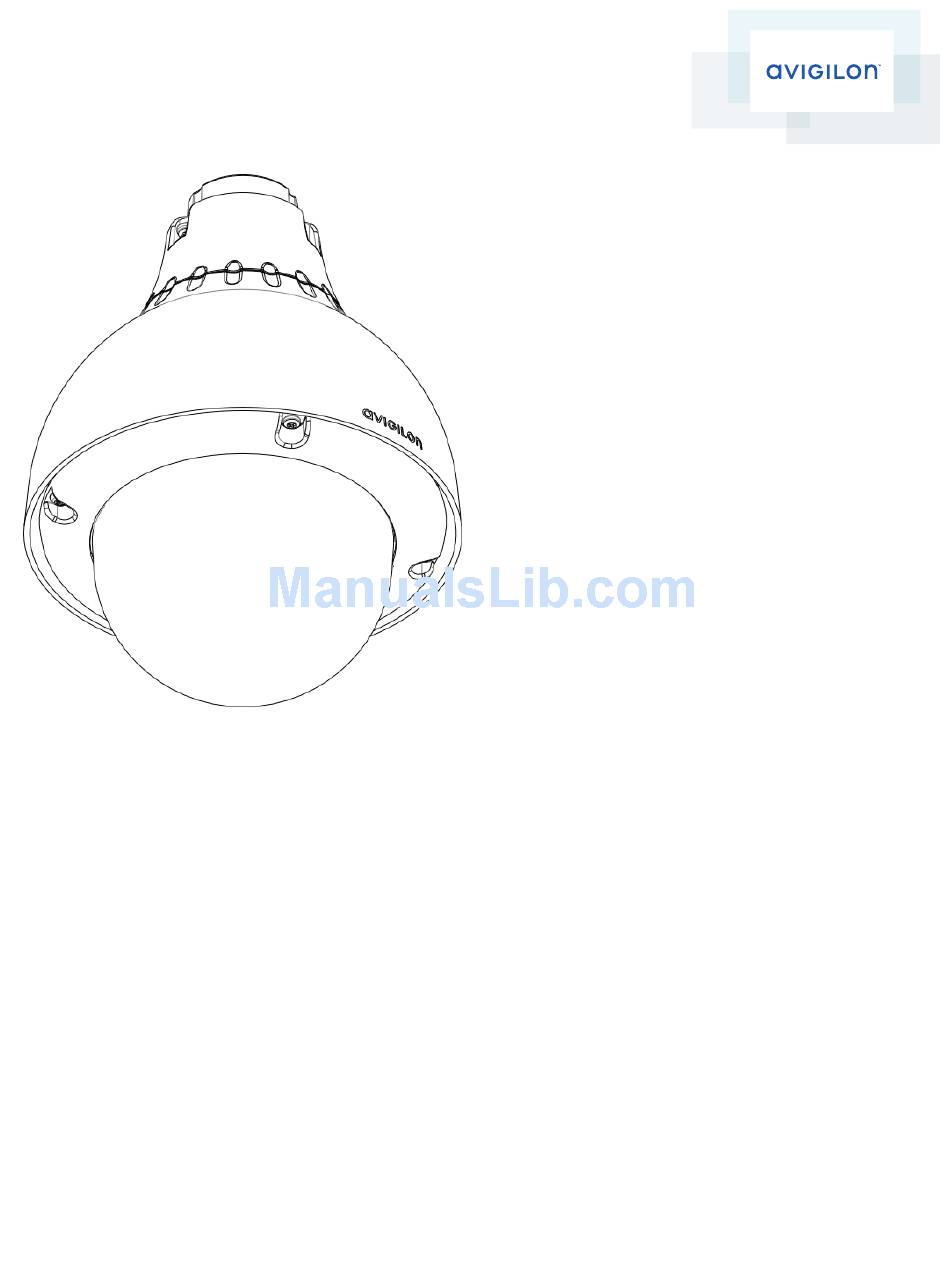

  • Page 1: Installation Guide

    Installation Guide Avigilon™ High Definition H.264 PTZ IP Dome Camera Models: 1.0W-H3PTZ-DP20 and 2.0W-H3PTZ-DP20...
  • Page 2 Ethernet (PoE) Plus IEEE802.3at Type 2 compliant Power Sourcing Equipment (PSE) rated 42.5-57 VDC, 25.5W min. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
  • Page 3: Fcc Notice

    Legal Notices © 2013 -2015 Avigilon Corporation. All rights reserved. Unless expressly granted in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon...
  • Page 4 This manual has been compiled and published covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Avigilon reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
  • Page 5: Table Of Contents

    Table of Contents Overview Front View Top View Pendant Mount Adapter Installation Camera Package Contents Precautions for Installing Near Salt Water Installation Steps Installing the Mount Adapter Connecting Cables Securing the PTZ Dome Camera Assigning an IP Address Accessing the Live Video Stream For More Information Cable Connections Connecting External Power...
  • Page 6: Overview

    Overview Front View 1. Serial Number Tag Product serial number and part number label. 2. Link LED Indicates if there is an active connection in the Ethernet port. 3. Connection Status LED Provides information about device operation. For more information, see LED Indicators on page 13 Overview...
  • Page 7: Top View

    Top View 1. External Power Accepts an external power connection when Power over Ethernet is not available. 2. Lanyard Anchor The safety lanyard attaches to the anchor to prevent the camera from falling during installation. 3. Ethernet Port Accepts an Ethernet connection to a network. Server communication and image data transmission occurs over this connection.
  • Page 8: Pendant Mount Adapter

    Pendant Mount Adapter 1. 1-1/2” NPT Mount Adapter Standard 1-1/2” NPT adapter for mounting the dome camera to a pendant mount bracket. 2. Tamper Resistant Screws Torx captive screws to fix the dome camera to the NPT adapter. Pendant Mount Adapter...
  • Page 9: Installation

    Follow these precautions to avoid camera issues when installing in a salt heavy environment: Use mounting accessories offered by Avigilon. All Avigilon accessories are tested to work with Avigilon cameras in the rated environments.
  • Page 10: Installing The Mount Adapter

    Accessing the Live Video Stream Installing the Mount Adapter CAUTION — The dome camera must be mounted as instructed below or problems with moisture may arise and will not be covered by the dome camera warranty. The dome camera must be mounted on a 1-1/2” NPT male threaded wall or ceiling mounting bracket. The mounting bracket is not included in the camera package.
  • Page 11 2. Pull the required cables through the mounting bracket then install the supplied connectors and wire assemblies. 3. Install the 1 1/2” NPT mount adapter. Installing the Mount Adapter...
  • Page 12: Connecting Cables

    4. Connect the safety lanyard from inside the NPT mount adapter to the anchor on the PTZ dome camera. Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. To connect the cables required for proper operation, complete the following: 1.
  • Page 13: Securing The Ptz Dome Camera

    ARP/Ping method. For more information, see Setting the IP Address Using the ARP/Ping Method on page 15 Network Video Management software application (for example, Avigilon™ Control Center). NOTE: The default camera username is admin and the default password is admin. Accessing the Live Video Stream...
  • Page 14: For More Information

    Web browser interface: http://<IP address>/ Network Video Management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is admin and the default camera password is admin. For More Information Additional information about setting up and using the device is available in the following guides: Avigilon™...
  • Page 15: Cable Connections

    Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the dome camera can be powered with 24 VAC or 24 VDC through the removable power connector: 1.
  • Page 16 1. Dark Red — +12 VDC, 50 mA max. output for relay drive 2. Grey — Relay ground return 3. Red — Relay input 1 4. Orange — Relay input 2 5. Pink — Relay output 1 6. Blue — Relay output 2 7.
  • Page 17 The video output signal is determined by the camera flicker control setting. When the camera flicker control is set to 60 Hz, the video output signal is NTSC. When the flicker control is set to 50 Hz, the video output signal is PAL.
  • Page 18: Led Indicators

    LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address.
  • Page 19: Resetting To Factory Default Settings

    Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. NOTE: Be careful not to scratch the dome bubble. Figure 1: The firmware revert button between the status LEDs.
  • Page 20: Setting The Ip Address Using The Arp/Ping Method

    Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a.
  • Page 21: Cleaning

    Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or finger prints Use a microfiber cloth or non-abrasive fabric to dry the dome bubble.
  • Page 22: Specifications

    Specifications Camera Lens 4.7-94mm, 20x zoom, F1.6 and automatic focus Audio Input/Output Line level input and output Video Output NTSC/PAL Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF compliance version 1.02, 2.00, Profile S (www.onvif.org) Password protection, HTTPS encryption, digest authentication, WS authentication, user Security access log, 802.1x port based authentication.
  • Page 23 Temperature -45 °C to + 50 °C (-50 °F to 122 °F) with external power Storage -10 °C to +70 °C (14 °F to 158 °F) Temperature Humidity 0-95% non-condensing Certifications UL 60950 CSA 60950 Safety CB Scheme IK10 Impact Rating (with H3PTZ-DP-CLEAR-IK only) Environmental Meets IP66 Weather Rating FCC Part 15 Subpart B Class B...
  • Page 24: Limited Warranty & Technical Support

    Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The warranty period shall be limited to a period of 1 year from date of purchase for all moving parts (including but not limited to fans, pan/tilt motors, lens motors, irises and lens assemblies).
