Avigilon 1.0-H3M-DO1 Installation Manual

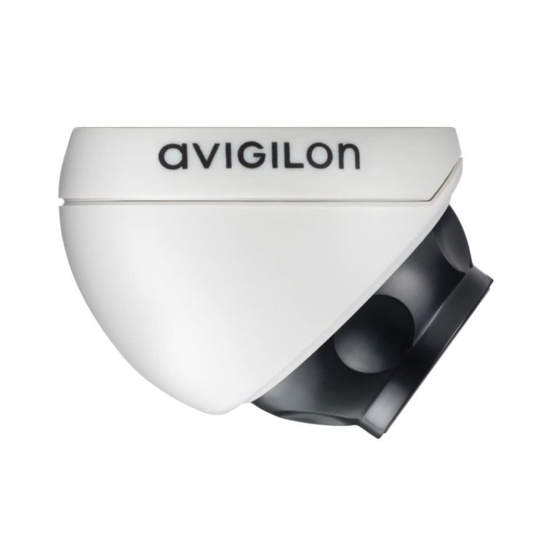

High definition h.264 ip micro dome camera
Hide thumbs
Also See for 1.0-H3M-DO1:
- Installation manual (138 pages) ,
- Installation manual (22 pages)
Related Manuals for Avigilon 1.0-H3M-DO1
Summary of Contents for Avigilon 1.0-H3M-DO1

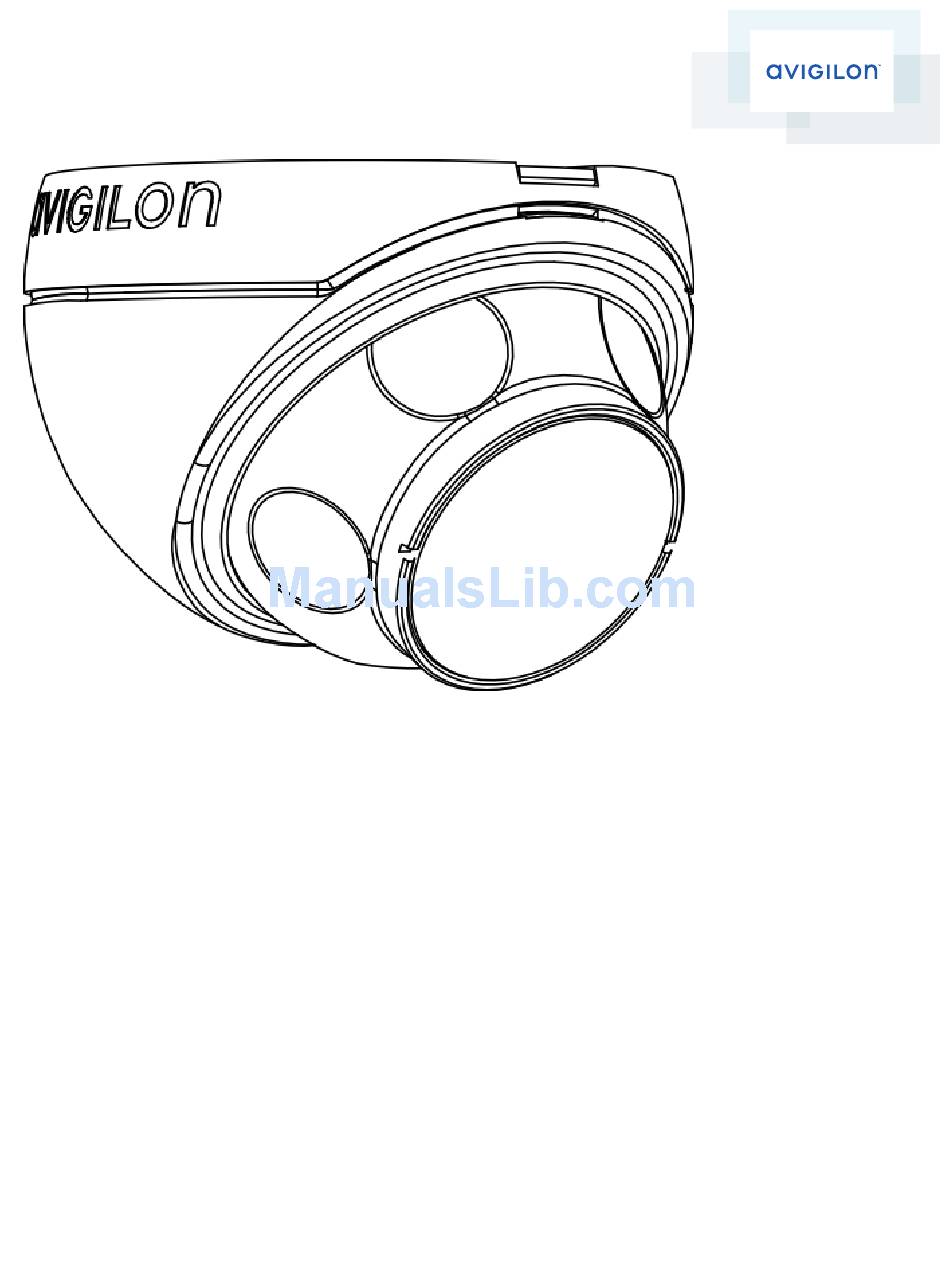

- Page 1 Installation Guide Avigilon™ High Definition H.264 IP Micro Dome Camera Models: 1.0-H3M-DO1 and 2.0-H3M-DO1...
-
Page 2: Important Safety Information
Do not use strong or abrasive detergents when cleaning the device body. Use only accessories recommended by Avigilon. Regulatory Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Fcc Notice
Legal Notices © 2013 -2014 Avigilon Corporation. All rights reserved. Unless expressly granted in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors. - Page 4 This manual has been compiled and published covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Avigilon reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
-
Page 5: Table Of Contents
Table of Contents Overview Front View Top View Installation Required Tools and Materials Camera Package Contents Installation Steps Adding the Mounting Holes Connecting PoE Assigning an IP Address Accessing the Live Video Stream Mounting the HD Micro Dome Camera Aiming the HD Micro Dome Camera For More Information LED Indicators Reset to Factory Default Settings... -
Page 6: Overview
Overview Front View 1. Cable Assembly 2. HD Micro Dome Camera 3. Horizon Markers Provides a reference point for aligning the video image with the horizon line. 4. Ethernet Port Accepts power and Ethernet connection to the network. The camera can only be powered by Power over Ethernet (PoE). Server communication and image data transmission also occurs over this connection. -
Page 7: Top View
7. Serial Number Tag Product serial number and part number label. Top View 1. Tamper Proof Screw TORX tamper-resistant captive screw to fix the dome cover to the base. Top View... -
Page 8: Installation
1 1/4” Hole Saw 3/16” drill bit for drywall or mineral fiber ceiling tile installation Camera Package Contents Ensure the package contains the following: Avigilon™ HD Micro Dome Camera Mounting hardware Rubber boot T10 TORX tamper resistant key Mounting template sticker... -
Page 9: Adding The Mounting Holes
Adding the Mounting Holes NOTE: If the camera is installed outdoors, the cable assembly must be stored inside an outdoor enclosure. Only the HD Micro Dome camera is rated for outdoor use. Ensure that any openings to the enclosure are properly sealed. -
Page 10: Assigning An Ip Address
6. If you installed the rubber boot, slide the boot over the end of the cable assembly. 7. Tuck the cable assembly away. If you are storing the cable inside the wall, push the cable assembly through the larger hole in the mounting surface. -
Page 11: Accessing The Live Video Stream
Avigilon Camera Installation Tool software application. Web browser interface: http://<IP address>/. Network Video Management software application (for example, the Avigilon Control Center software). NOTE: The default username is admin and the default password is admin. Mounting the HD Micro Dome Camera 1. -
Page 12: Aiming The Hd Micro Dome Camera
a. Move the camera away from the mounting holes. Figure 2: The mounting screws. b. Drive the supplied screws through the mounting holes and into the mounting surface. You may use other hardware that is appropriate to the mounting surface. Aiming the HD Micro Dome Camera 1. - Page 13 2. Hook the forward edge of the dome cover to the base and loosely trap the camera. Figure 3: Hook on the dome cover. 3. While the camera is trapped by one hand, use your other hand to hold the dimples along the sides to move and aim the camera.
-
Page 14: For More Information
Additional information about setting up and using the device is available in the following guides: Avigilon Camera Installation Tool User Guide Avigilon Control Center Client User Guide Avigilon High Definition H.264 Web Interface User Guide The manuals are available on the Avigilon website: http://avigilon.com/support-and-downloads... -
Page 15: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 16: Reset To Factory Default Settings
Reset to Factory Default Settings If the camera no longer functions as expected, you can choose to restore the camera to its factory default settings. Use the firmware revert button to reset the camera. Figure 5: The firmware revert button on the cable assembly. 1. -
Page 17: Setting The Ip Address Through The Arp/Ping Method
Setting the IP Address Through the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a. -
Page 18: Specifications
Specifications Camera Lens Lens 2.8mm, F2.0 Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF compliance version 1.02, 2.00, Profile S ( www.onvif.org) Password protection, HTTPS encryption, digest authentication, WS authentication, user Security access log, 802.1x port based authentication. IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Streaming Protocols Zeroconf, ARP RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,RTP/ RTSP/HTTPS/TCP, HTTP... - Page 19 Environmental Meets IP66 Weather Rating FCC Part 15 Subpart B Class B Electromagnetic EN 55022 Class B Emissions IC ICES-003 Class B EN 55024 Class B EN 61000-4-2 EN 61000-4-3 Electromagnetic EN 61000-4-4 Immunity EN 61000-4-5 EN 61000-4-6 EN 61000-4-11 Specifications...
-
Page 20: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
