APPLICATION
A PC/MAC application has been developed to enable users to control every function of the Echolution 2 via USB.
The application also enables firmware updates and extensive preset management including the ability to
import, export and audition presets.
PLEASE take a moment to download the E2 Application from our website at:
www.pigtronix.com/E2application
Starting the Application: To load and change presets on the E2, connect the via USB. To change preset
parameters without connecting the E2, Create a Virtual E2.
If you would like, you can change the view of the application to either the Filter Pro or the Ultra Pro by the
Display Type drop menu.
Note: The functionality does not differ with each view, and both are compatible with any Echolution pedal.
Presets List: On the left of the screen, there is a list of all of the current presets stored in the E2. This list is
ordered in the same way of that at the end of this manual. By DOUBLE-CLICKING, the selected
preset loads on the E2. Once a preset is selected, it will be displayed in bold in the Presets List.
Buttons for several options are displayed under the Presets List: Save To: This allows the user to save to
currently displayed settings to any preset. When Save To is clicked, a window will pop up, addressing the
32 |
p i g t r o n i x . c o m
user to highlight the preset from the Preset List which he would like to overwrite these settings to. When the
desired preset is highlighted, click save. Save Preset/Bank to File: This saves an individual preset or bank
to a file Load Preset/Bank to File: This loads an individual preset or bank to a file

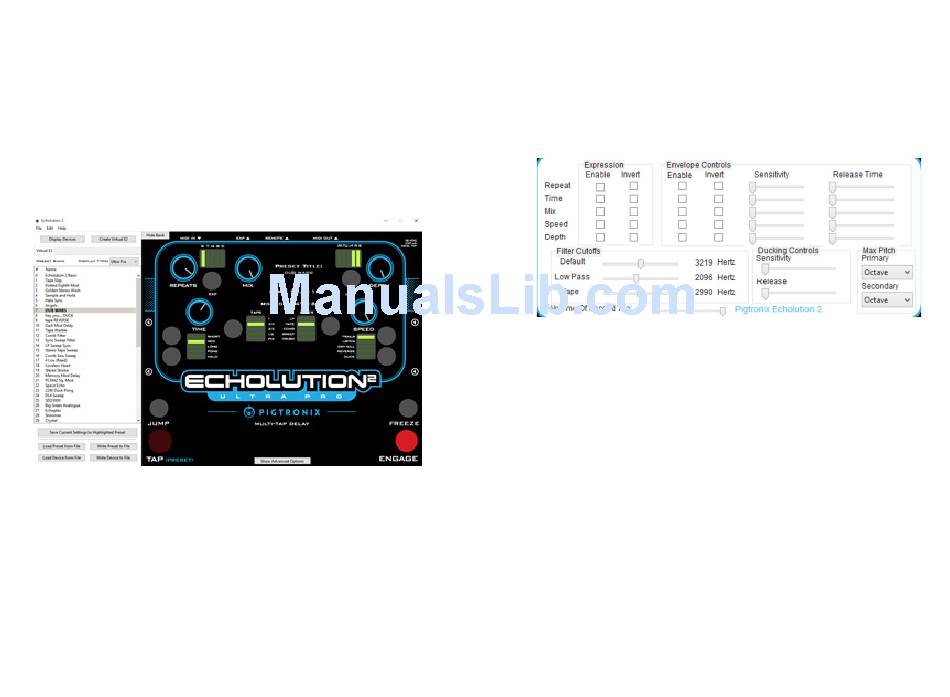

ADVANCED OPTIONS
To access this feature, click the 'Show Advanced Options' button, located under the Echolution 2 logo on
the application.
Each row represents a knob on the E2, named accordingly. The first and second columns control parameters
for the expression pedal, and the last four columns control parameters for the envelope.
By clicking a box in an ENABLE column allow either the expression pedal or the envelope to control
the designated knob.
When a parameter is assigned expression pedal control, pointers for the heel and toe become visible around
that parameters associated control knob, moving these pointers set the range of control.
Note: When a parameter has any of these advanced mapping features enabled for the EXPRESSION
pedal, the LED for that parameter dimly illuminates to indicate the expression or envelope control; dimly lit
LED's indicate Secondary Controls. The brightly lit LED indicates the Primary Control. The Primary Control is
NOT subject to the range of control set by the pointers, but utilizes the FULL
NO Primary Control is desired, press the EXP
By clicking a box in an INVERT column (second and fourth columns), this 'inverts' the range. On an
expression pedal, the HEEL setting becomes the TOE setting and vice versa. Similarly, the envelope's range inverts.
ENV SENSITIVITY slider adjusts the sensitivity of the envelope, left being the least sensitive, and
The
right being the most. If playing with a guitar with a strong output, a lower sensitivity is favored. If playing
with a guitar with a weaker output, a higher sensitivity is favored.
E c h o l u t i o n 2 | E c h o l u t i o n 2 D e l u x e
APPLICATION
RANGE of the knob. If
button until there is not brightly lit LED.
