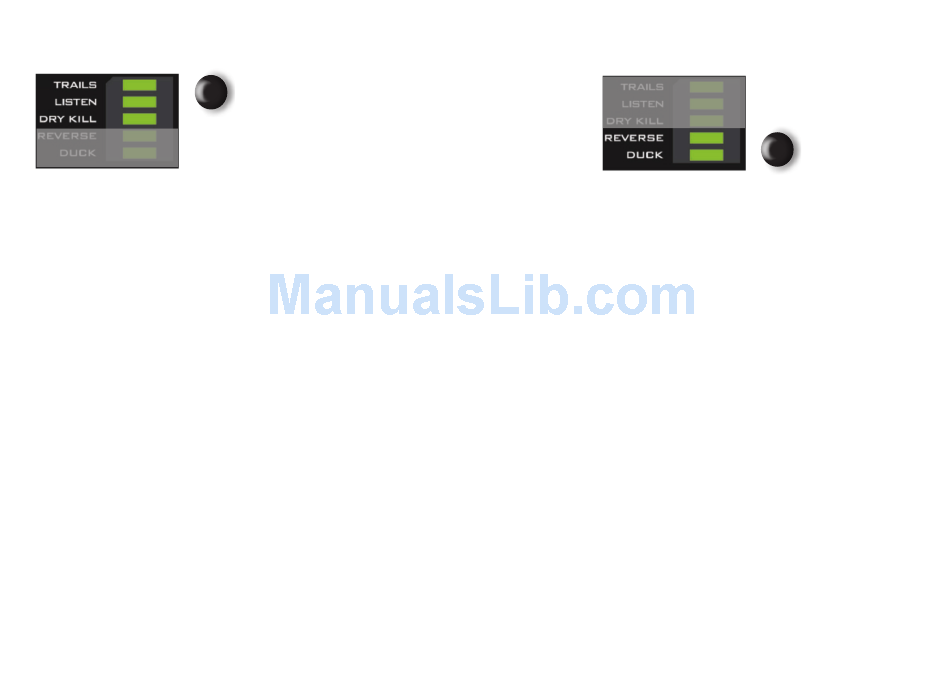

TOUCH SWITCHES — DELAY LINE I/O
SHORT PRESS cycles between:
TRAILS - old echos "spill over" after bypass for
smooth transitions.
LISTEN - echo material is recorded (although not
heard) while in bypass.
NORMAL- normal bypass (no LEDs lit up).
LONG PRESS turns on DRY KILL - this cuts out the analog clean signal from the mix.
DRY KILL is useful for special effects or when using a parallel effects loop on an amp or when
adding delay to a full mix
BOOT OPTION: DRY KILL DURING BYPASS -
This can be toggled by HOLDING the DELAY LINE I/O switch during the power-up
Engage is off.
procedure of the E2.
14 |
p i g t r o n i x . c o m
UPPER BUTTON
enables Dry Kill when
TOUCH SWITCHES — SPECIAL FUNCTIONS
SHORT PRESS turns on REVERSE – reverses tape in delay mix
LONG PRESS turns on DUCK – lowers delay mix with higher input signal
ADJUSTABLE FILTER CUTOFF FREQUENCY
The default filter, LP filter, and Tape filter can have different settings for each preset. To change
the corner frequency of the currently enabled filter, Press and hold both the Filter Selection and
Bypass Selection Touch Switches, and turn the Speed knob while still holding down the switches.
Factory Settings : Default Filter = Fully CW
LP Filter = 11 o'clock
Tape Filter = 9 o'clock
Any changes made to these settings can be saved to the current Preset using the Preset Encoder
( See 'Preset Saving' in the 'Presets' section).
BOOT OPTION: GENERATE MIDI CLOCK -
This can be toggled by HOLDING the SPECIAL FUNCTIONS switch during the
its own MIDI Clock.
power-up procedure of the E2.
