E c h o l u t i o n 2 | E c h o l u t i o n 2 D e l u x e

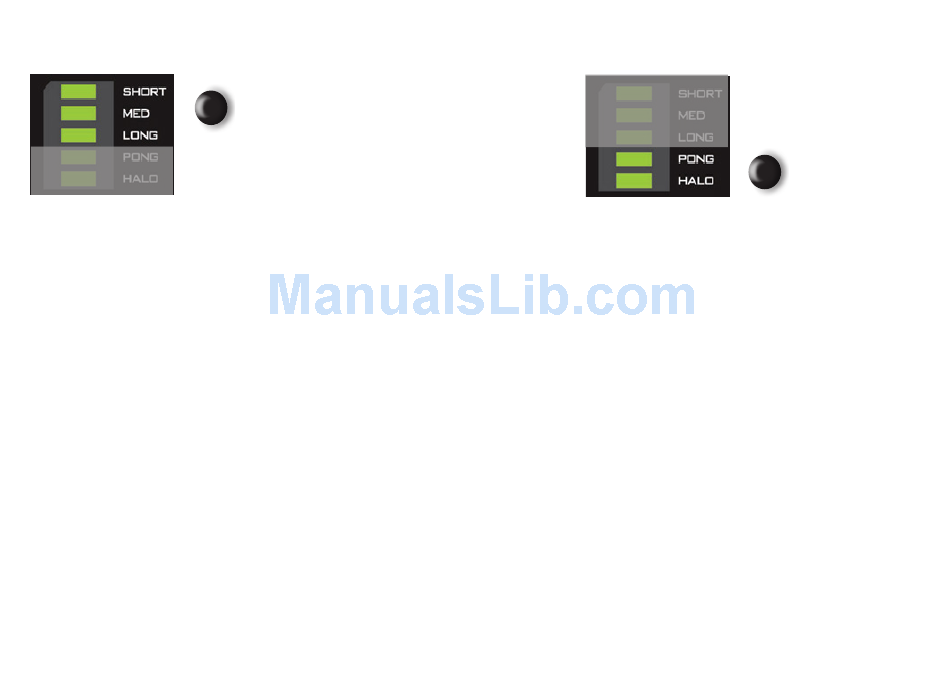

TOUCH SWITCHES — DELAY TIME RANGES
SHORT PRESS cycles between:
Short - 10ms → 100ms
Medium - 100ms → 1sec
Long - 1sec → 10sec.
LONG PRESS turns OFF the delay line. This allows the filters and modulation
sections to be used with no delay
BOOT OPTION: NON-PITCHED MIDI TRACKING -
the MIDI beat clock to change without causing the delay to pitch shift.
by HOLDING the DELAY TIME RANGES switch during the power-up procedure of the E2.
18 |
p i g t r o n i x . c o m
UPPER BUTTON
allows
This can be toggled
TOUCH SWITCHES — SPECIAL EFFECTS
SHORT PRESS turns on PING PONG. With one tap running, the echo
bounces from left to right. With two taps running, each tap is assigned to one side and
they swap sides on every repeat. We recommend that PING
when both outputs are used in stereo.
LONG PRESS turns on HALO. This causes the echoes to cascade up in octaves
on each repeat.
BOOT OPTION: COPY MIDI CLOCK -
This can be toggled by HOLDING the SPECIAL EFFECTS switch during the power-
Clock Out.
up procedure of the E2.
E c h o l u t i o n 2 | E c h o l u t i o n 2 D e l u x e
LOWER BUTTON
PONG be used only
Copies MIDI Clock In to MIDI
| 19
p i g t r o n i x . c o m
