Luxul AMS-4424P Quick Install Manual

Av series 26-port gigabit stackable poe+ l2/l3 managed switch
Hide thumbs Also See for AMS-4424P:
Table of Contents

Advertisement

Quick Links

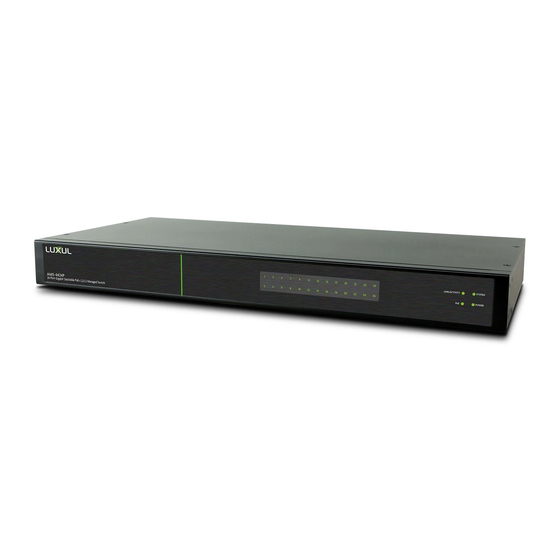

AV Series 26-Port Gigabit Stackable
PoE+ L2/L3 Managed Switch
Use the AMS-4424P to:
Use the AMS-4424P to:
Optimize Streaming Media and HDMI
„
Over IP Performance
Offer Seamless Network Expansion
„
Up To 384 Ports
Connect up to 24 PoE-Enabled Devices
„
(Max Output 250 Watts)
Enhance Performance with Layer 2
„
and Layer 3 Functionality

Quick Install Guide

Simply Connected
AMS-4424P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMS-4424P and is the answer not in the manual?

Questions and answers

Related Manuals for Luxul AMS-4424P

Summary of Contents for Luxul AMS-4424P

  • Page 1: Quick Install Guide

    Simply Connected Quick Install Guide AMS-4424P AV Series 26-Port Gigabit Stackable PoE+ L2/L3 Managed Switch Use the AMS-4424P to: Use the AMS-4424P to: Optimize Streaming Media and HDMI „ Over IP Performance Offer Seamless Network Expansion „ Up To 384 Ports Connect up to 24 PoE-Enabled Devices „...

  • Page 2: Document Conventions

    No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights.

  • Page 3: Package Contents

    Activity and PoE mode indicators as well as System and Power LEDs. AMS-4424P Front Panel View Rear Panel The rear panel of the AMS-4424P Switch includes 1 console port, 24 Gigabit RJ45 Ports and 2 optical expansion ports that accommodate both 1 Gigabit SFP and 10 , as well as LED indicators for each port.

  • Page 4: Led Indicators

    10/100Mbps device connected to the port. Flashing The Link/Activity LED fl ashes when a port is receiving or transmitting data. There is nothing connected to the port. 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450 LUX-QIG-AMS-4424P 036150505...

  • Page 5: Preparing For Installation

    AMS-4424P Rear Panel View Power Input: Please use the included power cable PREPARING FOR INSTALLATION System Requirements Ethernet Cables to connect the AMS-4424P to Ethernet enabled devices „ Computer equipped with a Web browser. Supported Web browser versions „ include Microsoft I.E. 9.0, Firefox 3.6, Safari 5.0, Chrome 6.0, Opera 10.6 and up.

  • Page 6: Before Connecting To The Network

    Check the power cord to confirm a secure connection. „ Avoid placement in direct sunlight. „ When installing the AMS-4424P on a flat surface, attach the rubber feet to the „ bottom of the device to avoid scratching the surface. AMS-4424P INSTALLATION Installing the AMS-4424P in a Rack The AMS-4424P can easily be installed in a standard 19”...

  • Page 7: Desktop Setup

    Desktop Setup For use as a desktop device, position and apply the included rubber feet to the bottom of the AMS-4424P. © 2015 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners...

  • Page 8: Network Connections

    SFP module and cable options. Stacking the AMS-4424P The AMS-4424P support stacking of up to 16 Switches (total of 384 Ports) enabling you to Manage the stacked Switches in one easy to use interface. Stacking in the AMS-4424P is Enabled by default and requires an SFP+ (10Gbps) link to be con- nected between Switches.
  • Page 9 Simply Connected NOTE: While the AMS-4424P support SFP and SFP+ Adapters only SFP+ Adapters will operate with the Stacking function of the Switch. Standard SFP (1Gbps) Adapters will result in a normal switched connection. Stacking Stacking the AMS-4424P One Management Interface for the AMS-4424P ©...

  • Page 10: Default Ip Address

    Default IP Address The AMS-4424P default IP address is 192.168.0.4. This address can be changed. However, for hassle free installation of other plug and play Luxul devices, it is recommended that the default IP value be maintained. Login The AMS-4424P is not equipped with internal DHCP server.

  • Page 11: Advanced Settings

    „ ACCESSORIES OUT OF THE REACH OF CHILDREN! The AMS-4424P may become warm when in use for extended time periods. This is normal and is not a „ malfunction. DO NOT install where it will be exposed to paper, cloth or other flammable materials.

  • Page 12: Industry Canada

    This device complies with part 15 of the FCC Rules. Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul AMS-4424P is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
