Luxul AMS-1208P Quick Setup Manual
Ethernet switch for west penn wire av over ip devices by west penn wire
Hide thumbs
Also See for AMS-1208P:
- Quick setup manual (32 pages) ,
- Quick install manual (9 pages) ,
- Quick install manual (9 pages)
Related Manuals for Luxul AMS-1208P
Summary of Contents for Luxul AMS-1208P

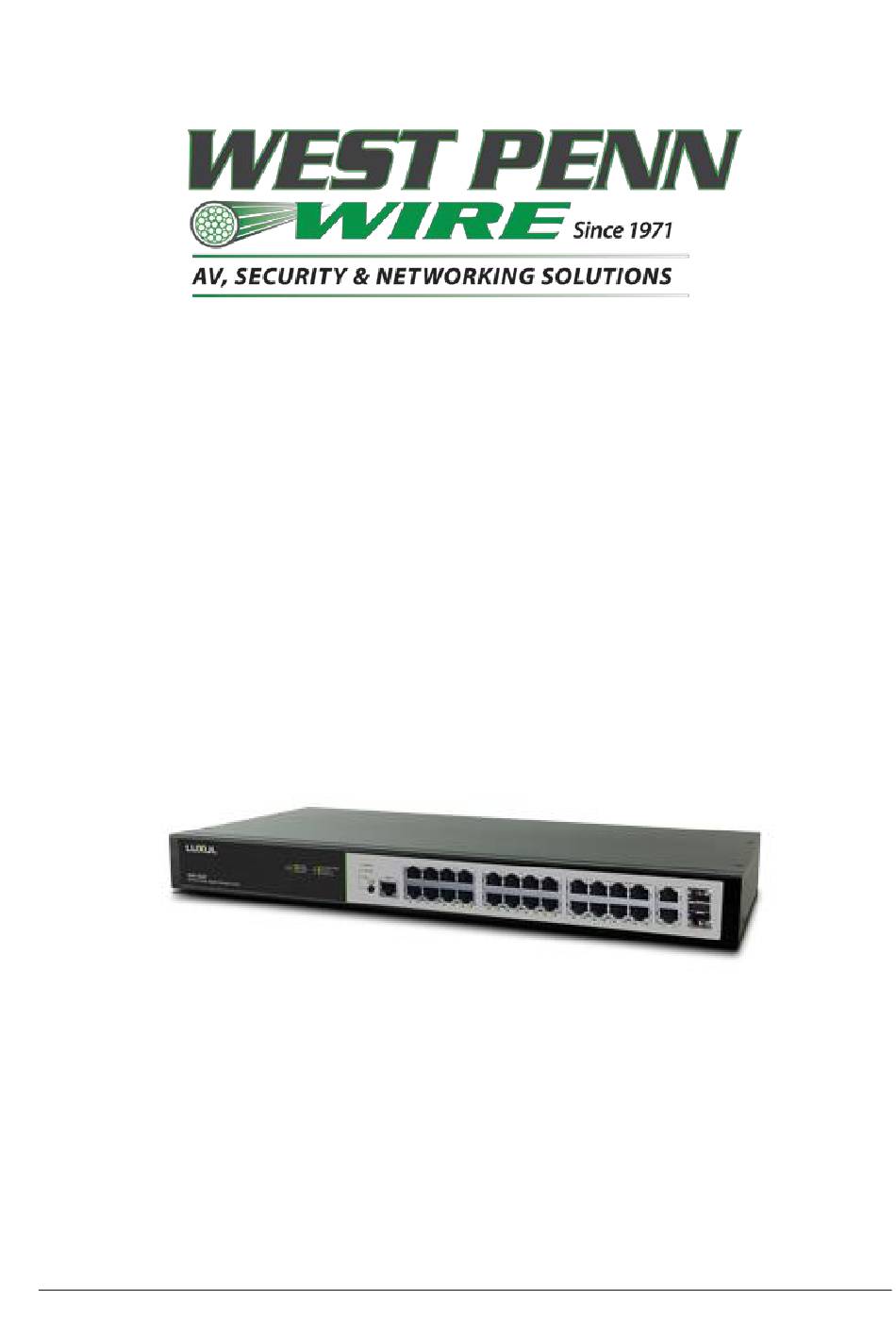

- Page 1 Luxul Ethernet Switch Quick Setup Guide For West Penn Wire AV over IP Devices West Penn Wire...
-
Page 2: Table Of Contents
Luxul Ethernet Switch Quick Setup Guide Contents Introduction ....................... 3 WPW Ethernet Switch Setup Requirements ............. 3 Ethernet Switch Setup ....................4 3.1. Enabling IGMP ....................4 3.2. Enabling Jumbo Frames ................5 Preparing for System Installation ................6 West Penn Wire... -
Page 3: Introduction

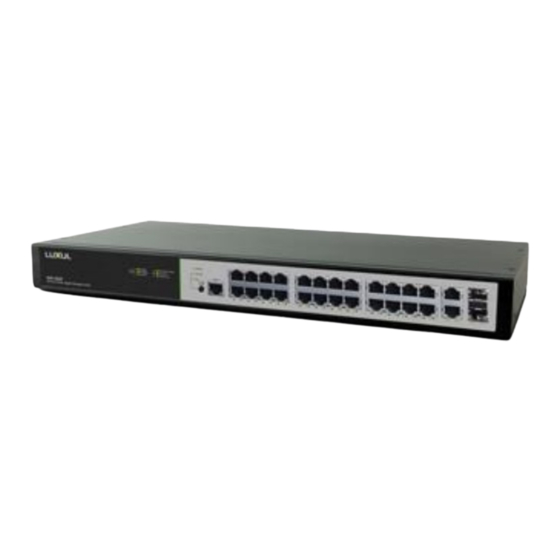

Introduction This document covers the basic setup requirements for a Luxul Ethernet Switch. The setup examples and screen shots shown are for the Luxul model AMS-1208P, but these instructions are similar and applicable to other Luxul Ethernet Switch models. WPW Ethernet Switch Setup Requirements... -
Page 4: Ethernet Switch Setup
Luxul Ethernet Switch Quick Setup Guide Ethernet Switch Setup 3.1. Enabling IGMP Follow the steps below to enable the IGMP feature on the Ethernet Switch. For further details on navigating through the Ethernet Switch web server menus, please refer to the Ethernet Switch manual. -
Page 5: Enabling Jumbo Frames
Luxul Ethernet Switch Quick Setup Guide Navigate to the menu: [Configuration → IPMC → IGMP Snooping → VLAN Configuration] Click [Add New IGMP VLAN] Enter the settings shown below, and then click [Save] Step 3: Save the above configuration changes Navigate to the menu: [Administration →... -
Page 6: Preparing For System Installation
Luxul Ethernet Switch Quick Setup Guide Step 1: Enable Jumbo Frames Navigate to the menu: [Configuration → Ports → Ports] For each port, set the “Maximum Frame Size” allowed, which in this case is the value “9600”, and then click [SAVE]... - Page 7 Luxul Ethernet Switch Quick Setup Guide 800-245-4964 sales@westpennwire.com www.westpennwire.com West Penn Wire...
