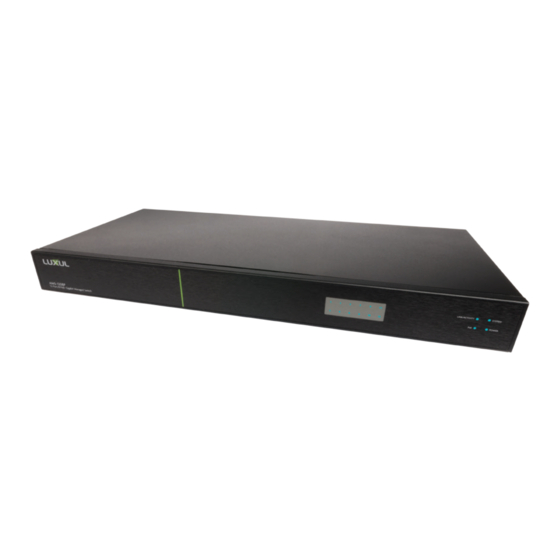

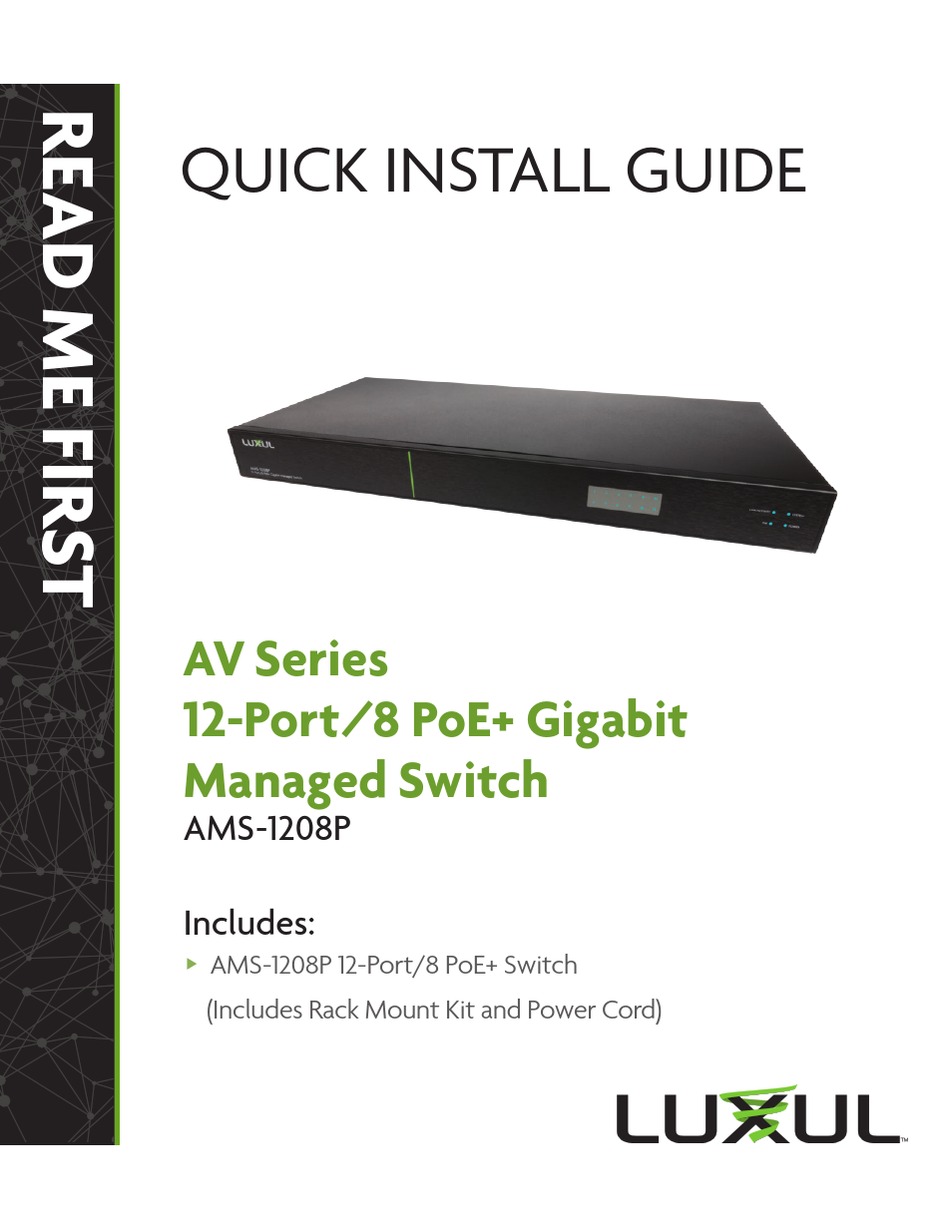

- Page 1 QUICK INSTALL GUIDE AV Series 12-Port/8 PoE+ Gigabit Managed Switch AMS-1208P Includes: AMS-1208P 12-Port/8 PoE+ Switch „ (Includes Rack Mount Kit and Power Cord)
- Page 2 INSTALLATION AND SETUP Physical Installation The AMS-1208P can easily be installed in a standard 19” rack. Two mounting ears are included for installing and stabilizing the switch. When attaching the mounting ears and installing the switch in a rack, please refer to the following illustration: Rack-Mounting the AMS-1208P Use the included screws to attach the mounting ears to each side „...
- Page 3 The AC input socket is on the rear panel. The built-in power supply supports 100~240VAC at 50/60Hz. Network Cabling Luxul recommends Category-5, super Category-5 or Category-6 unshielded twisted pair (CAT5/CAT5e/CAT6 UTP). To ensure best performance and stable data transmission at 1000 Mbps, use Category-6 shielded twisted pair.
- Page 4 (the default IP address of the AMS-1208P). Once you’re finished configuring the switch, you can return your comput- er’s IP configuration to normal, typically “Obtain Automatically/DHCP.” Note: Visit http://luxul.com/ip-addressing to learn more about changing your computer’s IP address and getting connected. Access and Setup...
- Page 5 Logging In To access the AMS-1208P web configuration, open your web browser and enter the switch’s default 192.168.0.3 IP address in the address field. Log in to the switch using the default user name and password: Default IP: 192.168.0.3 Username: admin Password: admin Select the menu items on the left to view and/or modify the configuration.
- Page 6 LED Indicators The LED indicators on the AMS-1208P include System, Link/Act and PoE LEDs, and an LED for each port. These LED indicators show the operating status of the AMS-1208P and each port connection. Mode/Reset Button to Change LED Functionality Tapping the Mode/Reset button briefly switches the port indicators between displaying port link speed and PoE status.
- Page 7 Port PoE Green Switch is providing PoE power to a device. Status 1-8 Yellow PoE is off due to a fault or because the connected device is exceeding power limit. Port disconnected or link failed. Note: At startup, the port LEDs will flash briefly during a self-test. Mode/Reset Button to Reset/Restore The Reset button (located at the lower-left corner of the rear panel) is used to reset (reboot) the switch, or to restore the switch to factory...
- Page 8 Luxul product. © Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
