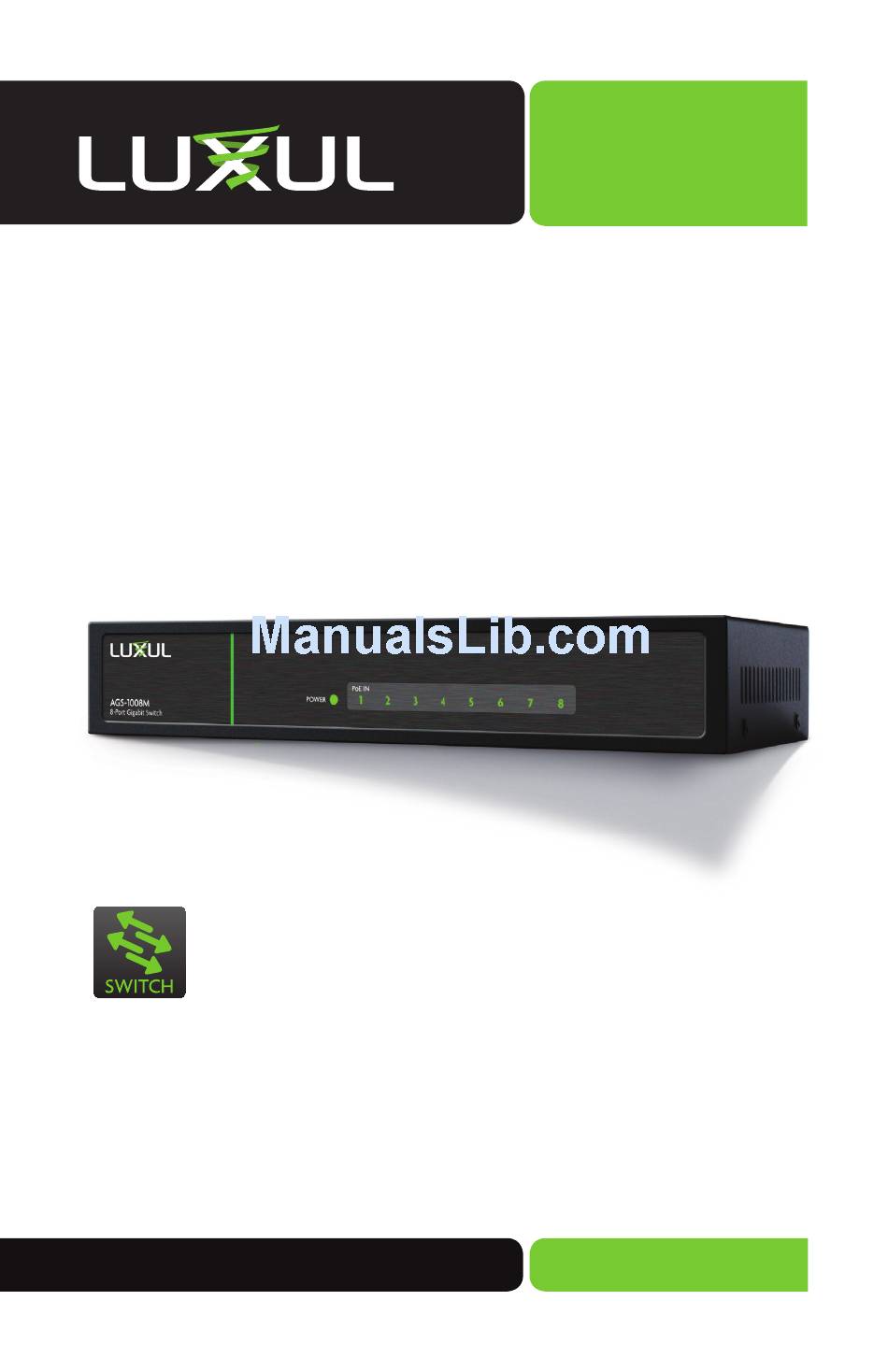

Quick Install Guide
Use the AGS-1008M to:
Expand Your Home or Offi ce Network with
„
8 Gigabit Ports
Deliver Ethernet Functionality in Remote or
„
Hard-to-Reach Locations
Future Proof Your Network with Gigabit
„
Speeds (10X Performance of Fast Ethernet)
Set-up a Dedicated Network for Optimizing
„
VoIP, Video, Security, or Gaming Applications.
Simply Connected
AGS-1008M
8-Port Gigabit Switch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGS-1008M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luxul AGS-1008M

Summary of Contents for Luxul AGS-1008M

  • Page 1 Simply Connected Quick Install Guide AGS-1008M 8-Port Gigabit Switch Use the AGS-1008M to: Expand Your Home or Offi ce Network with „ 8 Gigabit Ports Deliver Ethernet Functionality in Remote or „ Hard-to-Reach Locations Future Proof Your Network with Gigabit „...

  • Page 2: Document Conventions

    No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights.

  • Page 3: Package Contents

    AGS-1008M for return/replacement. HARDWARE DESCRIPTION Front Panel and The front panel of the AGS-1008M includes 8 Link/Activity LED’ s and one power LED. Please refer to the detailed description of these indicators in Section 1.4 below.

  • Page 4: Led Indicators

    Quick Install Guide AGS-1008M LED Indicators The LED indicators of the AGS-1008M include 1 Power indicator and 8 Link/Activity indicators. These LED indicators show the operating status of the AGS-1008M and each switch connection. The following chart shows the LED indicators of the AGS-1008M along with an explanation of the indicator’...

  • Page 5: Preparing For Installation

    Inspect the AC power cord to ensure that it is correctly connected and „ undamaged. To avoid electric shock, DO NOT open the AGS-1008M housing (no user service- „ able parts inside). Opening the AGS-1008M will void your warranty. It is recommended that the AGS-1008M is positioned away from direct sun light „...

  • Page 6: Desktop Setup

    When you want the device powered by PoE connect the AGS-1008M to another switch through the PoE In port. When you want the AGS-1008M to be powered by AC, plug the AC power adapter into a wall outlet and into the Port on the Device.

  • Page 7: Connecting To A Router Or Other Switch

    Du al- WA En ter pri se Internet Connecting the AGS-1008M to a Router or Switch When a device is properly connected, the Link/Activity LEDs for each port light up green/orange. Please refer to the LED Indicators section for defi nitions and troubleshooting.

  • Page 8: Fcc Statement

    This device complies with part 15 of the FCC Rules. Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul AGS-1008M is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For a copy of this report send a self addressed stamped envelope to: Luxul CE, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020.
