INSTALLATION AND SETUP Physical Installation The AMS-2624P can easily be installed in a standard 19” rack. Two mounting ears are included for installing and stabilizing the switch. When attaching the mounting ears and installing the switch in a rack, please refer to the following illustration:...
2 shared SFP combo ports; use only one of the same-numbered ports at a time. Use the included power cable to connect the AMS-2624P to a surge- protected outlet. The AC input socket is on the rear panel. The built-in power supply supports 100~240VAC at 50/60Hz.
Preparing for Access IP Addressing If the AMS-2624P is connected to a network with a 192.168.0.X address scheme, and your computer shares a similar address on the same network, you can skip to the next step, Access and Setup .

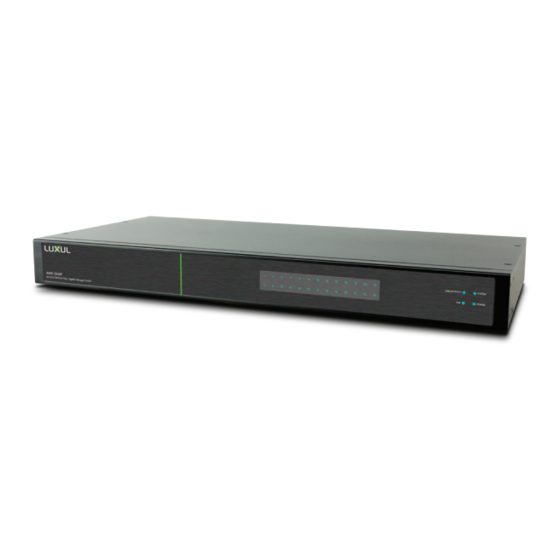

AMS-2624P Front Panel View Rear Panel The rear panel of the AMS-2624P Switch includes 1 console port, 24 1000Mbps RJ45 and 2 RJ-45/SFP combo ports, as well as LED indicators for each port. Each 1000Mbps port has one Link/Activity/PoE LED. A mode/reset button switches the display between Link/Activity and PoE modes.
Mode/Reset Button to Change LED Functionality Tapping the Mode/Reset button briefly switches the port indicator between displaying port link speed and PoE status. The following chart shows the LED indicators of the AMS-2624P along with an explanation of the indicator’s properties: Indicator...
Page 7
Link/Act and PoE LEDs turn off, then release the Reset button and the switch automatically restores factory default settings and reboots. Once the System LED starts flashing again, the AMS-2624P is running with factory defaults. CAUTION: Please note that restoring Default Settings will remove...
