QUICK INSTALL GUIDE

AV Series 26-Port Gigabit

Managed Switch

AMS-2600
Includes:
AMS-2600 26-Port Gigabit Managed Switch
„
Rack Mount Kit
„
Rubber Feet
„
Power Cable
„

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV Series and is the answer not in the manual?

Questions and answers

Related Manuals for Luxul AV Series

Summary of Contents for Luxul AV Series

  • Page 1: Quick Install Guide

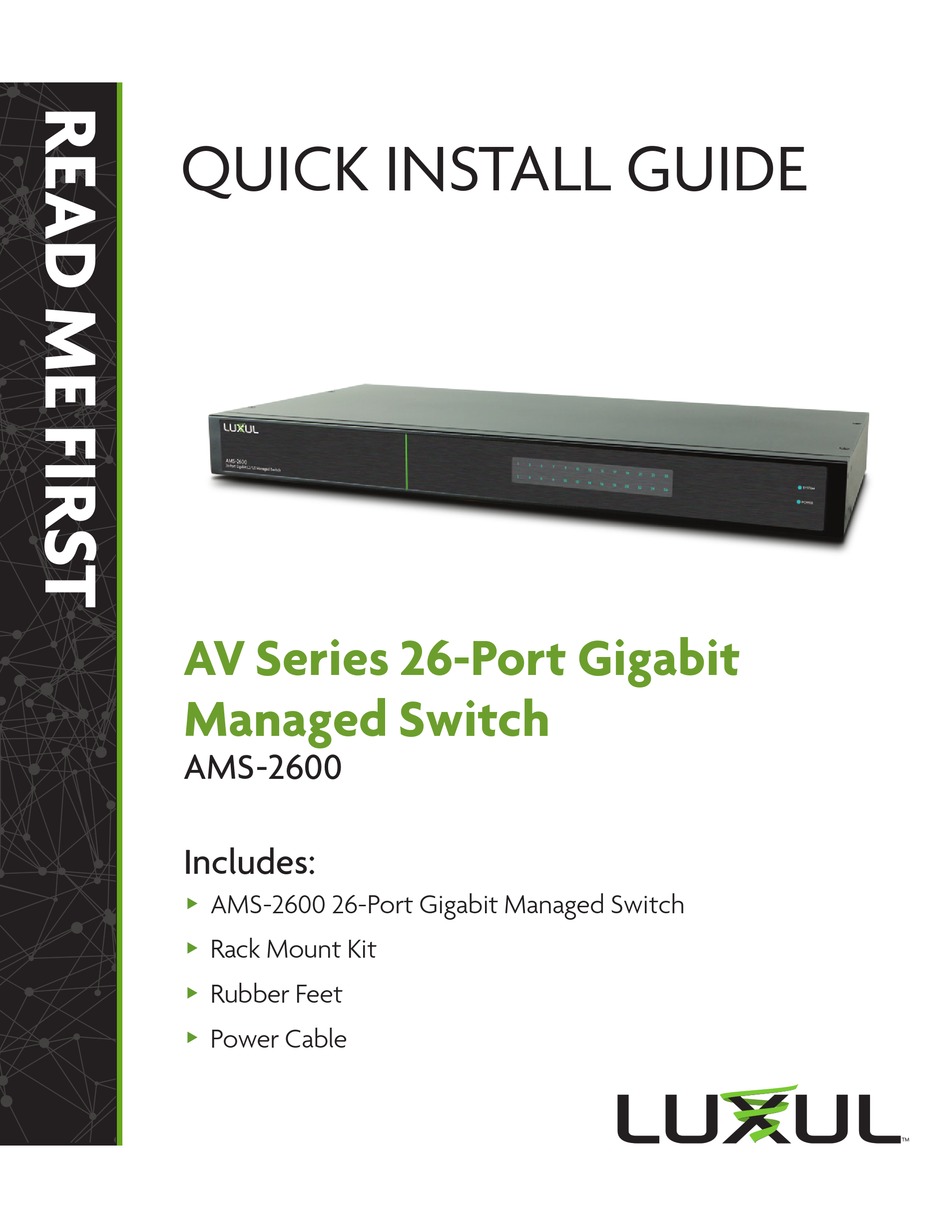

    QUICK INSTALL GUIDE AV Series 26-Port Gigabit Managed Switch AMS-2600 Includes: AMS-2600 26-Port Gigabit Managed Switch „ Rack Mount Kit „ Rubber Feet „ Power Cable „...

  • Page 2: Setup And Configuration

    SETUP AND CONFIGURATION Physical Installation The AMS-2600 can be rack-mounted or used as a desktop switch. Install the AMS-2600 in a stable/safe place to avoid any possible damage. Avoid place- ment in direct sunlight. Do not place heavy articles on the AMS-2600 and verify the ground connection of the outlet is functioning properly.
  • Page 3 The AMS-2600 supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/ full-duplex mode and 1000 Mbps full-duplex mode. Note: Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP) cabling. To ensure best performance and stable data transmission at 1000 Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).
  • Page 4 (the default IP address of the AMS-2600). Once you’re finished configuring the switch, you can return your comput- er’s IP configuration to normal, typically “Obtain Automatically/DHCP.” Note: Visit http://luxul.com/ip-addressing to learn more about changing your computer’s IP address and getting connected.

  • Page 5: Getting Connected

    Default IP: 192.168.0.2 Username: admin Password: admin Select the menu items on the left to view and/or modify the configuration. Refer to the Quick Setup Guide at Luxul.com for more detailed information on setup, IP configuration and routing.

  • Page 6: Hardware Operation

    Hardware Operation The front panel of the AMS-2600 switch features a Power LED, System LED and a Link/Activity LED for each port. The back panel of the switch includes (24) gigabit RJ-45 ports, two gigabit RJ-45 uplink ports with two shared SFP ports (combo ports), a power connector, and a switch to select blue or green front-panel LEDs.
  • Page 7 Back Indicator State Description Speed/ Green Gigabit device connected to the port. Link/Act Amber 10/100Mbps device connected to the port. Flashing Port is receiving or transmitting data. No device connected to the port or device is off. SELECTING FRONT-PANEL LED COLOR Use the switch on the rear panel of the AMS-2600 to select either blue or green for the Power and System LEDs on the front panel to best match the equipment in the rack where the switch is sharing space.

  • Page 8: Technical Support

    Luxul product. © Copyright 2017 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
