Page 1: Quick Install Guide

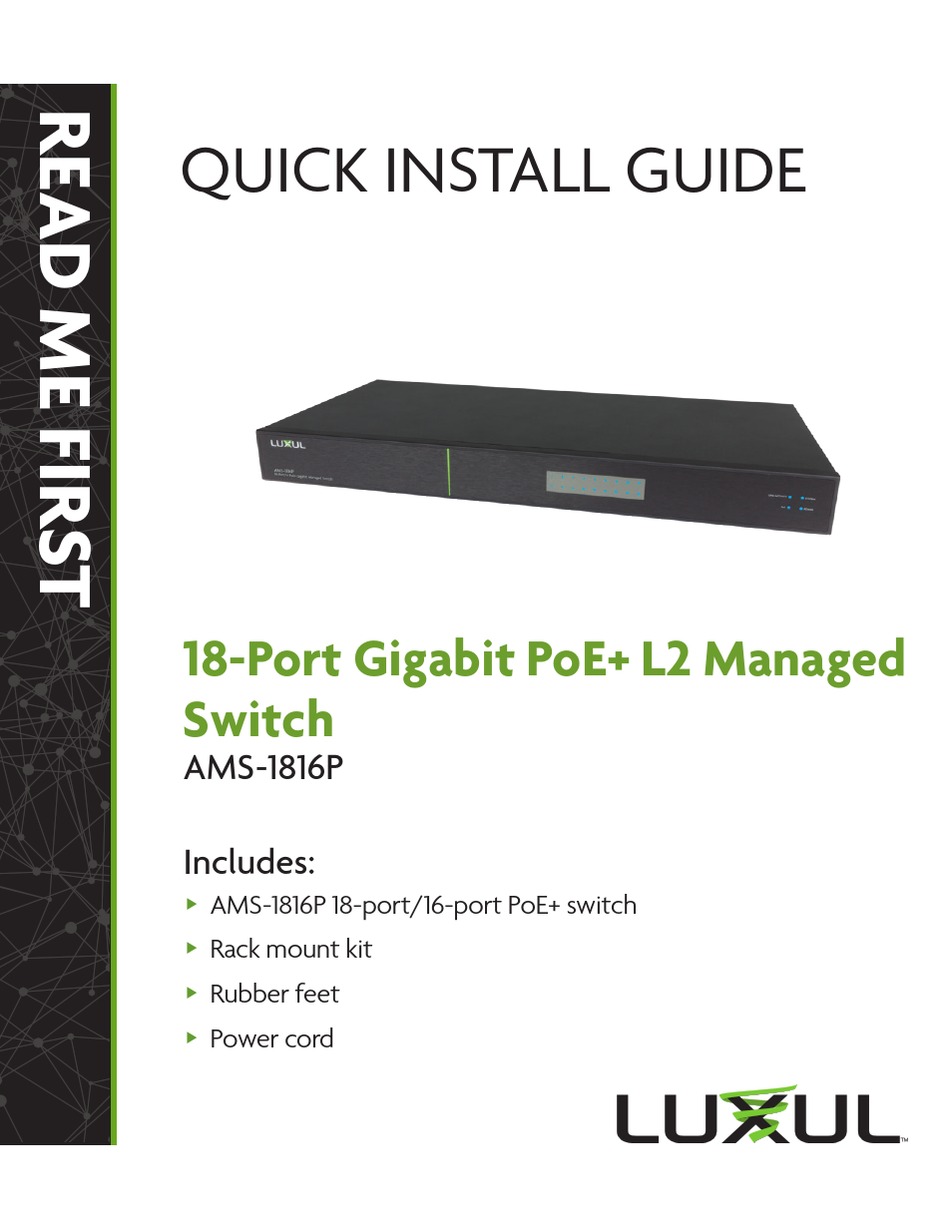

QUICK INSTALL GUIDE 18-Port Gigabit PoE+ L2 Managed Switch AMS-1816P Includes: AMS-1816P 18-port/16-port PoE+ switch „ Rack mount kit „ Rubber feet „ Power cord „... -
Page 2: Installation And Setup
INSTALLATION AND SETUP Physical Installation The AMS-1816P can easily be installed in a standard 19” rack. Two mounting ears are included for installing and stabilizing the switch. When attaching the mounting ears and installing the switch in a rack, please refer to the following illustration:... -
Page 3: Network Cabling
Ethernet port or fiber port with the same-numbered ports at a time. Use the included power cable to connect the AMS-1816P to a surge- protected outlet. The AC input socket is on the rear panel. The built-in power supply supports 100~240VAC at 50/60Hz. -
Page 4: Getting Connected
IP configuration to normal, typically “Obtain Automatically/DHCP.” Note: Visit http://luxul.com/ip-addressing to learn more about changing your computer’s IP address and getting connected. Access and Setup Getting Connected Use an Ethernet cable to connect your computer to the AMS-1816P, then power on the switch. -
Page 5: Hardware Operation

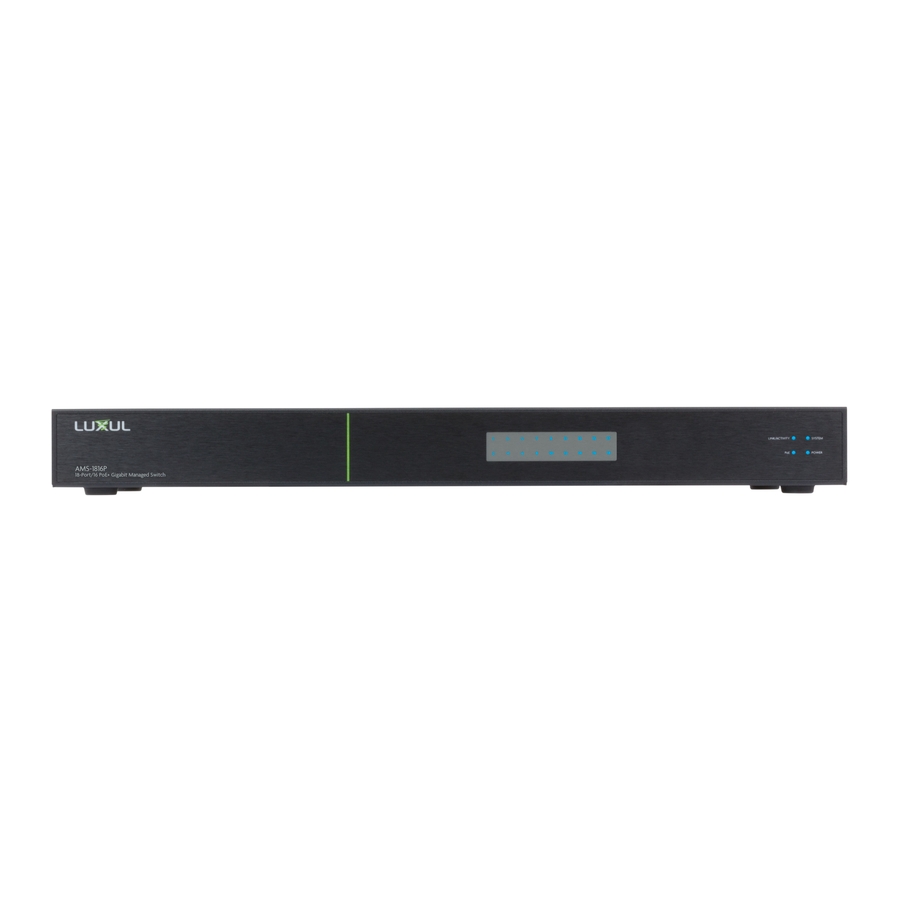

AMS-1816P Front Panel View Rear Panel The rear panel of the AMS-1816P includes 1 console port, 16 1000Mbps RJ-45 and 2 RJ-45/SFP combo ports, as well as LED indicators for each port. Each 1000Mbps port has one Link/Activity/PoE LED. The Mode/Reset button switches the display between Link/Activity and PoE modes. -
Page 6: Led Indicators
Mode/Reset Button to Change LED Functionality Briefly tapping the Mode/Reset button switches the port indicator between displaying port link speed and PoE status. The following chart shows the LED indicators of the AMS-1816P along with an explanation of the indicators’ properties: Indicator... - Page 7 Link/Act and PoE LEDs turn off, then release the Reset button. The switch will automatically restore factory default settings and reboot. Once the System LED starts flashing again, the AMS-1816P is running with factory defaults. CAUTION: Please note that restoring Default Settings will remove...
-
Page 8: Technical Support
Luxul product. © Copyright 2018 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
