- Page 1 Indoor Speed Dome Camera User Manual Camera Accessories CM-M806 CA-MFMK CA-510P25 CA-510PA50 CA-510C CA-510PA25 CA-510W CA-510PML CA-510WL CA-510P50 www.openeye.net...
- Page 2 No part of this documentation may be reproduced in any means, electronic or mechanical, for any purpose, except as expressed in the Software License Agreement. OpenEye shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is subject to change without notice.
- Page 3 Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty.
- Page 4 Installation and Storage Install electricity wiring carefully. Please note that input electricity to the unit is at tolerance of AC 24V ± 10%. The camera is capable of surge protection; ensure AC power model unit is grounded appropriately against damage by heavy current or electric shock.
- Page 5 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
- Page 6 OpenEye will warrant all otherwise out of warranty replacement parts and repairs for 90 days from the date of OpenEye shipment. The above warranty is the sole warranty made by OpenEye and is in lieu of all other warranties by OpenEye express and implied, including without limitation the warranties of merchantability and fitness for a particular purpose.
-
Page 7: Table Of Contents
Introduction ..................11 Overview ....................... 11 Product Features ....................11 Getting Started ................. 12 Camera Contents ....................12 Dome Setup and Cable COnnection ..............13 Dome Camera Setup ..................13 Switch Definition ................... 13 Dome Cable Definition and Requirements ............14 Cable Requirements: 24vAC Power ............ - Page 8 Setup & Configuration ................... 25 Connecting to the Camera ................25 Resetting the Camera .................. 25 Administrator/User Privileges ............... 25 Connecting Over the Internet ............... 26 Viewer Software ....................27 Viewer Tabs ...................... 27 Live ....................28 Setup ....................29 System Setting ......................
- Page 9 Video Compression ..................40 Advanced ..................41 System Setting ...................... 41 Network Setup ....................41 DDNS ......................41 Network Advanced ................... 41 QoS ......................41 SNMP Settings ..................... 42 UPnP (Universal Plug N’ Play) ..............42 Network Security ....................43 HTTP ......................
-
Page 10: Introduction

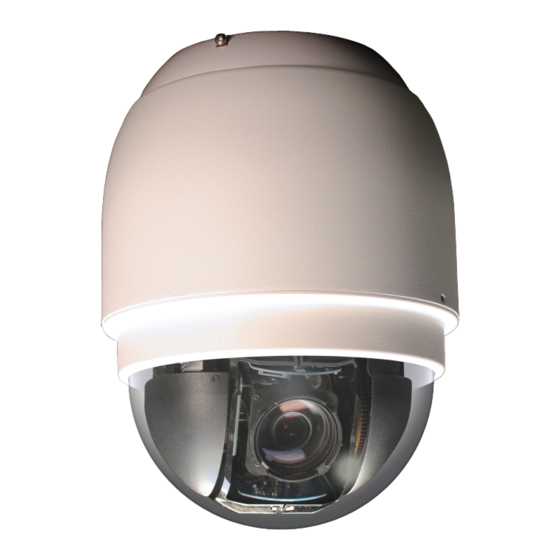

The CM-M806 is an IP PTZ camera capable of resolutions up to 1080p. The CM-M806 IP camera can transmit video at H.264 and MJPEG codecs. With digital wide dynamic rage, the CM-M806 is an excellent choice for installations with difficult lighting conditions. -
Page 11: Getting Started
Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Dome Body Optical Cover Screws Quick Start Guide Indoor Pendant Mount Hard Ceiling Mount... -
Page 12: Dome Setup And Cable Connection
Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. Dome Camera Setup Alarm input/output Reset button Setting switch Power Audio connection RJ-45 Connector SD card slot Do not change the settings on the camera’s setting switch. Leave the switch at the factory default settings. -
Page 13: Dome Cable Definition And Requirements
For operation, the IP dome camera requires a network cable to carry the video signals to the remote viewing site and a power cable to power the dome. The CM-M806 IP camera is capable of using Power over Ethernet or 24vAC power. -
Page 14: Ethernet Cable Connection
Connect one end of the CAT 5 Ethernet cable to the RJ-45 connector of the camera and the other end of the cable to the network switch or recorder. In some cases, you may need to use an Ethernet crossover cable when connecting the camera directly to the recorder. -
Page 15: 12-Pin Alarm Input / Output Connection
Using the 12-pin connector, installers can connect 4 digital alarm inputs and 2 digital alarm outputs. The alarm pins are serviceable for connecting alarm input and output devices such as sensors, sirens, or flashing lights to the surveillance system. For the definition of each pin, refer to the list below. -
Page 16: Dome Installation
Depending on your installation environment, the dome can be installed on the ceiling, on a wall, or a pole. The following section illustrates installation methods and procedures for installing the dome and mounting accessories. The dome dimensions are Ø6.5” (165.1 mm) x 8.6” (219.1 mm). 31970AF... -
Page 17: Installation
You can install your CM-M806 using the included Hard Ceiling Mount or Pendant Mount. Installation with Hard Ceiling Mount Mark the positions of the three screw holes in the Hard Ceiling Mount at your chosen location. Drill each hole using a 3/16” bit. -
Page 18: Optional Accessories
Mounting Accessories Ceiling Flush Mount Kit - Part Number: CA-MFMK 1 ½” Threaded Adapter - Part Number: CA-510PA50 1 ¼” Threaded Adapter - Part Number: CA-510PA25 Large Pole Mount - Part Number: CA-510PML 50 cm Pole - Part Number: CA-510P50 ... -
Page 19: Installation With Ceiling Flush Mount Kit
The Ceiling Flush Mount Kit consists of three pieces: the in-ceiling mount, the camera bracket, and the trim ring. Attach the camera to the Hard Ceiling Mount that is affixed to the camera bracket. Tighten the screw on the side of the camera to secure it to the camera bracket. -
Page 20: Camera Network Manager
IP addresses, manage users, configure video settings, and update firmware on multiple cameras at once. The Network Camera Manager software is pre-installed on all OpenEye Recorders, and included on the software CD with all OpenEye IP cameras. It is also available for download on the OpenEye website. Installation... -
Page 21: Starting Network Camera Manager
After installing the program on your PC or laptop, open the program to begin configuring your cameras. To access Network Camera Manager on an OpenEye recorder, you must operate the recorder in Windows Mode. In the Live Screen, click Exit. -
Page 22: Camera Configuration
Device Addressing The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Click Find Devices on the Device Addressing tab. To narrow your search by Camera Model, Project, or Camera Name, select your desired criteria from the appropriate lists. 31970AF... -
Page 23: Viewing A Network Camera
Enter the Username and Password for the camera. The username and password are case sensitive. It is strongly recommended that the password be changed after the initial setup to prevent unauthorized access. The default username and password for OpenEye IP cameras are as follows. Username – Admin Password – 1234 The viewer software is now opened in Internet Explorer. -
Page 24: Setup & Configuration
Connecting to the Camera Locate the camera on the IP Finder list. Double-click the camera to open the Viewer software in your web browser. Click Browse in the pop-up window. Log in to the camera with the appropriate User Name and Password. The default User name is admin and the default Password is1234. -
Page 25: Connecting Over The Internet
RTSP, however, is not suitable for transmission between two locations that are behind different routers. In this case, the client (for example, the OpenEye HVR or NVR server software) connects to the camera, and then requests a stream. The camera uses that... -
Page 26: Viewer Software
To access the setup menu, you need to install the viewer software on your PC or recorder. The viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings. -
Page 27: Live
Full Screen – This will display the live feed in full screen. Snapshot – Click the button, and a JPEG snapshot will automatically be saved in the appointed place. The default location is: C:\. If you are using Windows Vista or 7, you will need to change the Snapshot location. -
Page 28: System Setting
The Setup menu includes System Settings, Picture Setup, and Streaming Settings. The Setup menu displays limited setup options. For a complete list of setup options, see the Advanced section. Camera Name Host Name – The Host Name is used to identify the camera on your system. -
Page 29: Ip Address
Every network device has a unique Media Access Control (MAC) address that can be used for identification. The MAC address is located on the bottom of each camera, and on the box label (OpenEye Network Camera Manager also displays the MAC address for identification). Record your camera’s MAC... -
Page 30: Use Static Ip Address
Click Apply to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the address bar of your Internet Explorer. -
Page 31: User Setup
User Setup Manage the password for the Administrator account. To change the administrator password: Type a new Administrator Password, and then type again to confirm the password. Click Save. The user name and passwords are limited to 16 characters with no spaces permitted. There is a maximum of twenty user accounts. -
Page 32: Modify User
The sample image will change as you modify the picture settings. These settings can drastically affect the camera image. OpenEye suggests that these settings are only modified by a CCTV professional, or at the instruction or a technical support representative. -
Page 33: Exposure
Min Shutter Speed – Choose a pre-determined shutter speed. Manual Mode – Changing the shutter mode to manual will allow you to select the minimum shutter speed that the camera will use. This can drastically change the amount of light entering the camera. Click Set to save your changes. -
Page 34: Picture Adjustment
Each of the Picture Adjustment settings is set to the recommended default. Brightness – Adjust the image’s brightness on the camera. The Backlight value is adjustable from 0 (dim) ~ +20 (brightest). Sharpness – Increasing the sharpness level can make the image looked sharper; it especially enhances an object’s edge. -
Page 35: Add Detection Window
Use the Motion Detection dropdown to select a motion detection preset. Click Add. The selected motion detection square will be red. Arrange and size the motion detection window as desired. Click Save. Click to select the desired motion detection window. Click Delete. -
Page 36: Streaming Settings
Video Resolution The camera provides eight codec options under video resolution (two single streaming options, two sets of dual streaming options, two sets of tri- streaming options, and two sets of quad-streaming options): H.264 Only MJPEG Only H.264 + H.264 ... -
Page 37: Video Orientation
I-frame; increasing the file size of the stream, but decreasing the risk of video decoding errors. OpenEye recommends setting the GOP to be approximately twice the frame rate (e.g.: if the frame rate is 10 IPS, then set the GOP to 20). ... -
Page 38: Video Frame Rate
Video Frame Rate Setting the camera to transmit fewer frames can save bandwidth. Use the Frame Rate Control screen to adjust the frame rate of each stream. Each of the MJPEG and H.264 streams can have a separate frame rate setting from 1 to 30 frames per second. -
Page 39: Video Compression
Video Compression You can select an MJPEG / H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression inflation on the Live Screen. MJPEG compression settings include: High compression, low bitrate, low quality ... -
Page 40: Advanced
Network Setup The Network Setup settings will automatically be set at the recommended default after the camera connection is made. DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection;... -
Page 41: Snmp Settings
With Simple Network Management Protocol (SNMP) enabled, the camera can be monitored and managed remotely with a network management system. Contact your network administrator if you are not familiar with SNMP setup. Enable UPnP – When enabled, the camera will appear in My Network Places on Windows computers running UPnP on the same network. -
Page 42: Network Security
Network Security The camera can send alarm messages to a specific Hypertext Transfer Protocol (HTTP) site when motion is detected or when the sensor input is activated. You can assign alarm messages to up to two HTTP sites. IP Filtering allows you limit access to your IP cameras by IP address. You can “Allow” or “Deny”... -
Page 43: Alarm Application
Alarm Application The alarms menu is where alarm connections are configured. Alarm Switch – Designate when the alarm will be active; Off, On, or By Schedule. Alarm Type – Designate if the alarm is normally open or normally closed. NOH –... -
Page 44: Tampering And Network Failure Detection
Tampering and Network Failure Detection Tampering Alarm – Turn the Tampering Alarm On, Off, or On By Schedule. Tampering Duration – Designate the amount of time (in seconds) that tampering must occur in order for a Tampering Alarm to activate. Triggered Action –... -
Page 45: Mail, Http And Ftp Setup
SD Card All OpenEye IP cameras include an integrated microSD™ card slot that can be used to record video or images. The card slot is compatible with a microSD™ card up to 16GB. -
Page 46: Network Share
Network Share Network Share is a network protocol that runs a variety of different system platforms, allowing for file sharing between computers operating on Windows and computers operating on Unix. This serves as an additional storage type. Configuration requires the host IP address, share name, and credentials. Once configured, cameras can record events to the network share. -
Page 47: Recording Schedule
Recording Schedule The recording schedule allows you to set up scheduled recording to the microSD™ card or to Network Sharing. This section allows you to define recording schedules for the camera. For continuous recording: Select type of Recording Storage. microSD card™: save recorded data to the microSD™... - Page 48 This section allows you to establish schedules to use in other section. To create a schedule: Select a Schedule set (1-10). Check the desired week day check boxes. Select Day or Night. Designate a Start Time and Duration. Click Save. 31970AF...
-
Page 49: Interval Recording
Interval recording allows you to record in consistent intervals and save the files for later viewing. Turn Interval Recording On or Off. Designate the Time Interval (seconds). Designate the Trigger Action using the appropriate checkbox, and then use the dropdown menus to further manage the Trigger Action. Type a file name, and then choose how the file name is multiplied for multiple files. -
Page 50: Maintenance
Maintenance On the Maintenance page you can export the cameras current configuration, or import the configuration for a camera. Use the factory default page to reset the IP Camera to factory default settings if necessary. Do not import configuration files from different models of cameras. Export Configuration: Check the appropriate boxes for information that you want exported. -
Page 51: Software
Software Make sure the software upgrade file is available before starting the software upgrade. Click Browse and find the upgrade file. Do not change the file name, or the system will fail to find the file. Select the file name from the list under Step 2. Click Upgrade. -
Page 52: Picture Setting
Video Mask You can use the video mask page to define a privacy mask to keep users from viewing parts of the image. You can enable up to five privacy masks and choose a color to obscure the live view form users. Hot Spot The Spot feature allows you to transmit different parts of the camera image on separate streams. -
Page 53: Streaming Setting
Audio Audio Input Grain – sets the amplification that the camera applies to the incoming audio before transmitting. Audio Output Delay – Sets a delay in the audio transmission. This is used when there is significant lag in video transmission to help sync the audio and video. Volume –... -
Page 54: Specifications
Model CM-M806 Maximum Resolution 1080p (2MP) Sony 1/2.8” CMOS Image Sensor Video Compression H.264 / MJPEG 30 IPS @ 1080P [1920 x 1080 / 2MP] 30 IPS @ 1280 x 1024 / 1.3MP 30 IPS @ 720P [1280 x 720 / 1MP]... - Page 55 Power Consumption 24W Max Rated Amperage 0.97A (24vAC) Input Voltage 24vAC / PoE+ (802.3at) PoE Class Audio In / Out 1 / 1 Alarm In / Out 2 / 4 microSD Card Slot microSD / microSDHC 32GB max Weight 5.11lbs (2.32kg) Ø7.5"...
- Page 56 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
