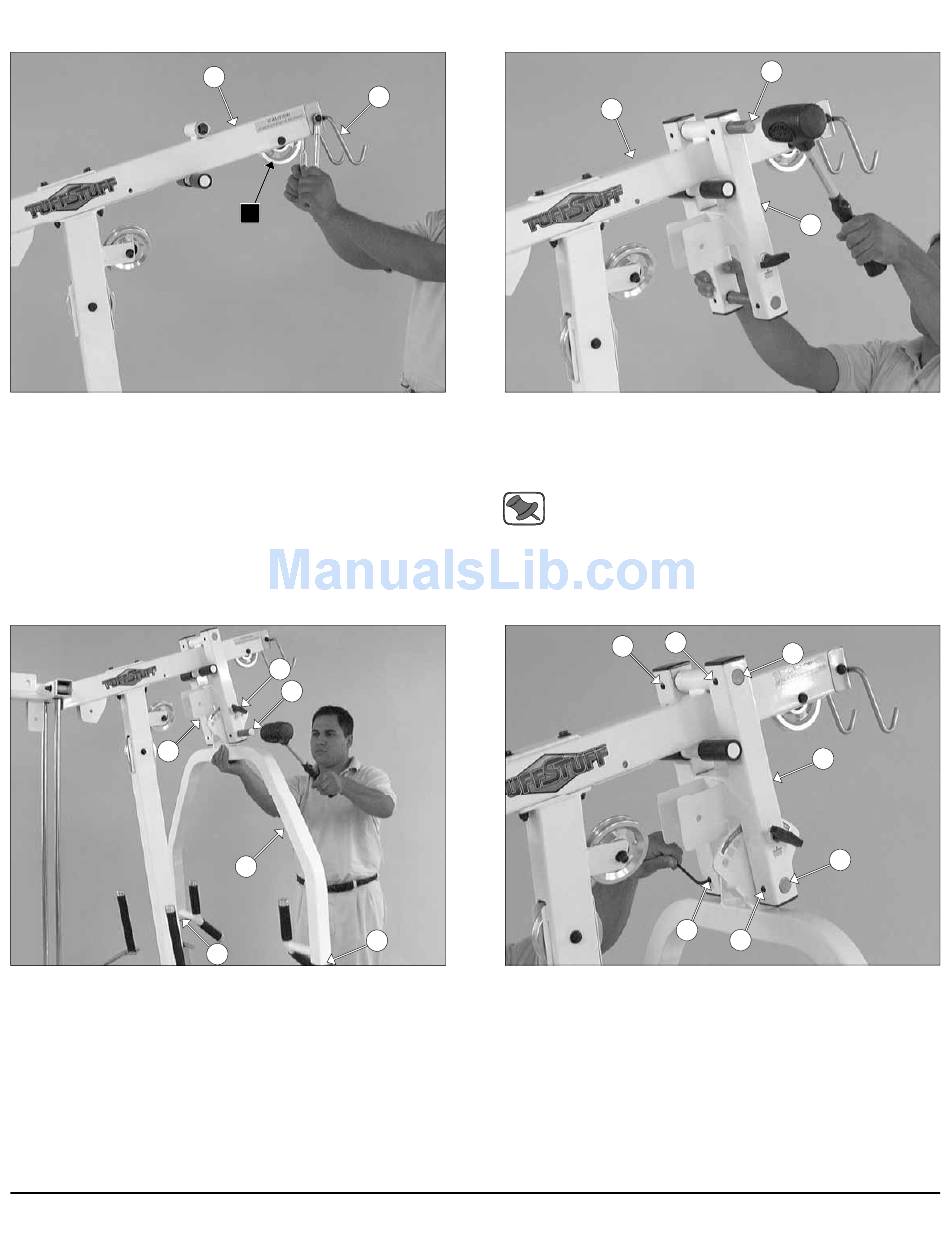

FIG. 21 Next, attach a Pulley 4 1/2 Rd (#67-Labeled A1) to the Top
Pulley Assembly (#49) using one Hex Head Cap Screw 3/8-16 X 2 1/2
(#99), two Flat Washers SAE 3/8" (#93), and one Nylon Insert Jam
Lock Nut 3/8-16 (#118). Next, attach the Lat Bar Holder 2 X 3 (#21) to
the Top Pulley Assembly (#49) using one Hex Head Cap Screw 3/8-
16 X 2 3/4 (#100), two Flat Washers SAE 3/8" (#93), and one Nylon
Insert Jam Lock Nut 3/8-16 (#118).
41
FIG. 23 Using a rubber mallet, insert two Plastic Insert Caps 2" Sq.
(#126) into the tube-ends of the Press Bar (#42). Next, insert the
Press Bar (#42) up into the Press Bar Selector Housing (#41) and
support in into place using the Pull Pin 1/2 X 3 1/2 (#130). Next, using
a rubber mallet, insert the Pivot Axle 1 X 8 1/8 (#39) into the Press
Bar Selector Housing (#41) and through the Press Bar (#42).
Apollo Modular Gym System (Base Unit)
49
21
A1
130
39
42
126
126
49
FIG. 22 Using a rubber mallet, insert one Pivot Axle 1 X 8 1/8 (#39)
through the holes of the Press Bar Selector Housing (#41) and
through the receptacle of the Top Pulley Assembly (#49) until the
Pivot Axle 1 X 8 1/8 (#39) is flush with both sides of the Press Bar
Selector Housing (#41).
Note: It is recommended to grease the Pivot Axles 1 X 8 1/8
(#39) with multi-purpose grease prior to assembling.
150
150
150
FIG. 24 Secure the two Pivot Axles 1 X 8 1/8 (#39) to the Press Bar
Selector Housing (#41) using four Set Screws 3/8-16 X 1/2 (#150).
Use the Supplied Hex Key 3/16" (#107) for securing these Set Screws
3/8-16 X 1/2 (#150) into the threaded sockets on the Press Bar
Selector Housing (#41). Next, clean the ends of the Pivot Axles 1 X
8 1/8 (#39) and apply four 1" Rd. Silver Mylar Decals (#77–Not shown).
These decals are used to hide and protect the ends of the axles.
