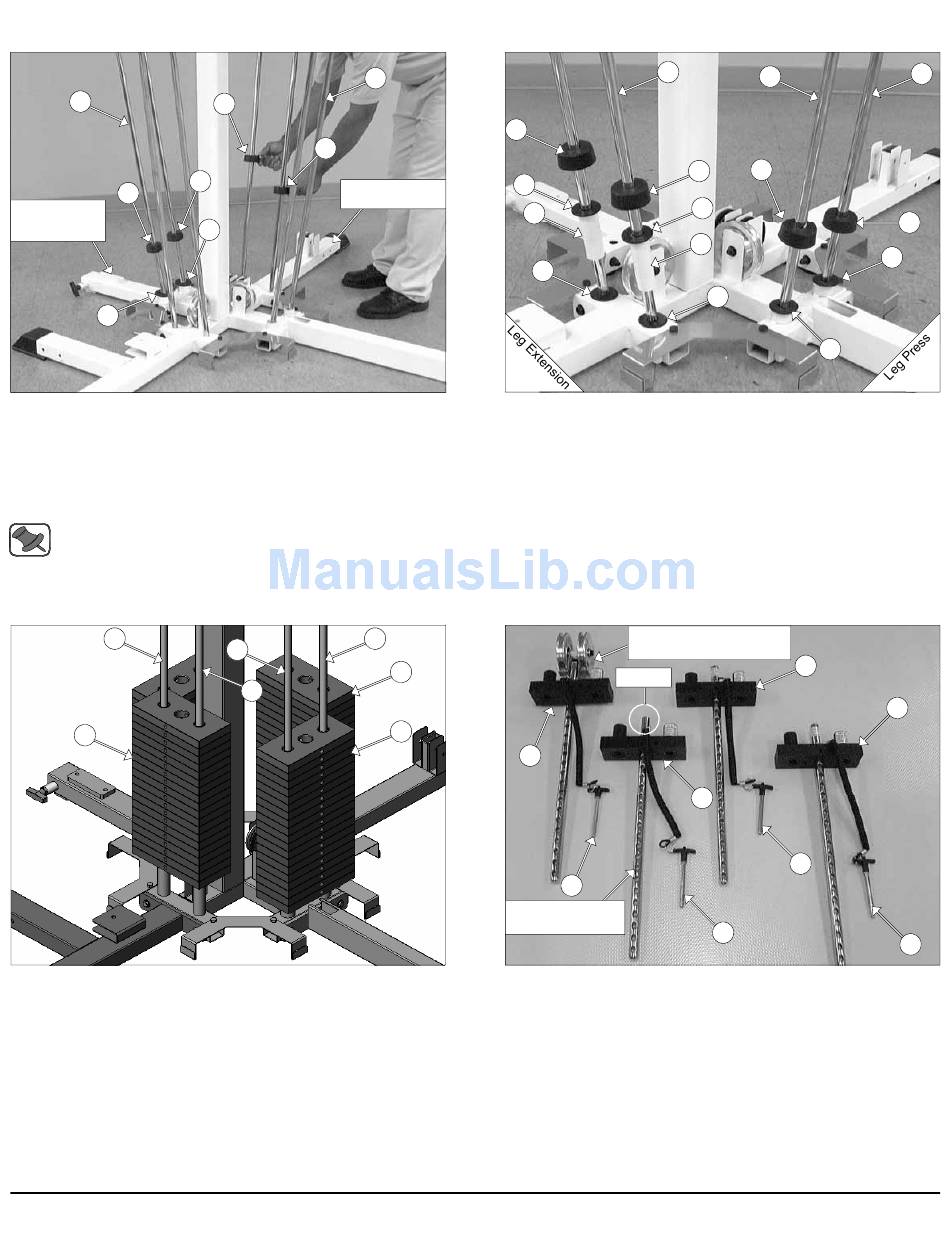

FIG. 5 Insert the eight Guide Rods (#10) into the receptacles of the
Weight Stack Frame (#53). Next, insert two Rubber Donuts (#136)
onto the Guide Rods (#10) located at the side of the Press Bar Station.
Next, on the side of the Single Column Station insert onto the Guide
Rods (#10) the following:
1. Two Flat Washers 3/4 X 2 (#92)
2. Two Rubber Donuts (#136)
Note: Lubricate the Guide Rods (#10) with a silcone or teflon
lubricant at this time.
10
56
FIG. 7 Carefully begin sliding the nineteen (19) 10 Lb. Weight
Plates (#56) over the Guide Rods (#10). Repeat the same process for
the other three stations.
Apollo Modular Gym System (Base Unit)
10
136
136
Press Bar Station
92
10
10
10
136
92
54
92
FIG. 6 On the Leg Extension/Curl Station insert onto the Guide
Rods (#10) the following:
1. Two Flat Washers 3/4 X 2 (#92)
2. Two Weight Stack Spacers (#54)
3. Two Flat Washers 3/4 X 2 (#92)
4. Two Rubber Donuts (#136)
On the Leg Press Station insert onto the Guide Rods (#10) the follow-
ing:
1. Two Flat Washers 3/4 X 2 (#92)
2. Two Rubber Donuts (#136)
56
56
58
31
To be used on the
Leg Press Station
FIG. 8 Locate the four Top Plate Selector Bars (#58) and assemble
Magnetic Selector Pins W/Coil 3/8 X 4 (#31) in the position as shown
above.
Assembly Instructions
10
10
136
136
92
54
92
Assembled to be used on
the Single Pulley Station
No Label
58
31
31
10
136
92
92
58
58
31
