Fig. 33; Note: Refer To The Cable Mapping Diagram On Fold-Out; For Further Detailed Illustration Of The Lat Cable (#22) Routing - TuffStuff Apollo Owner's Manual

22

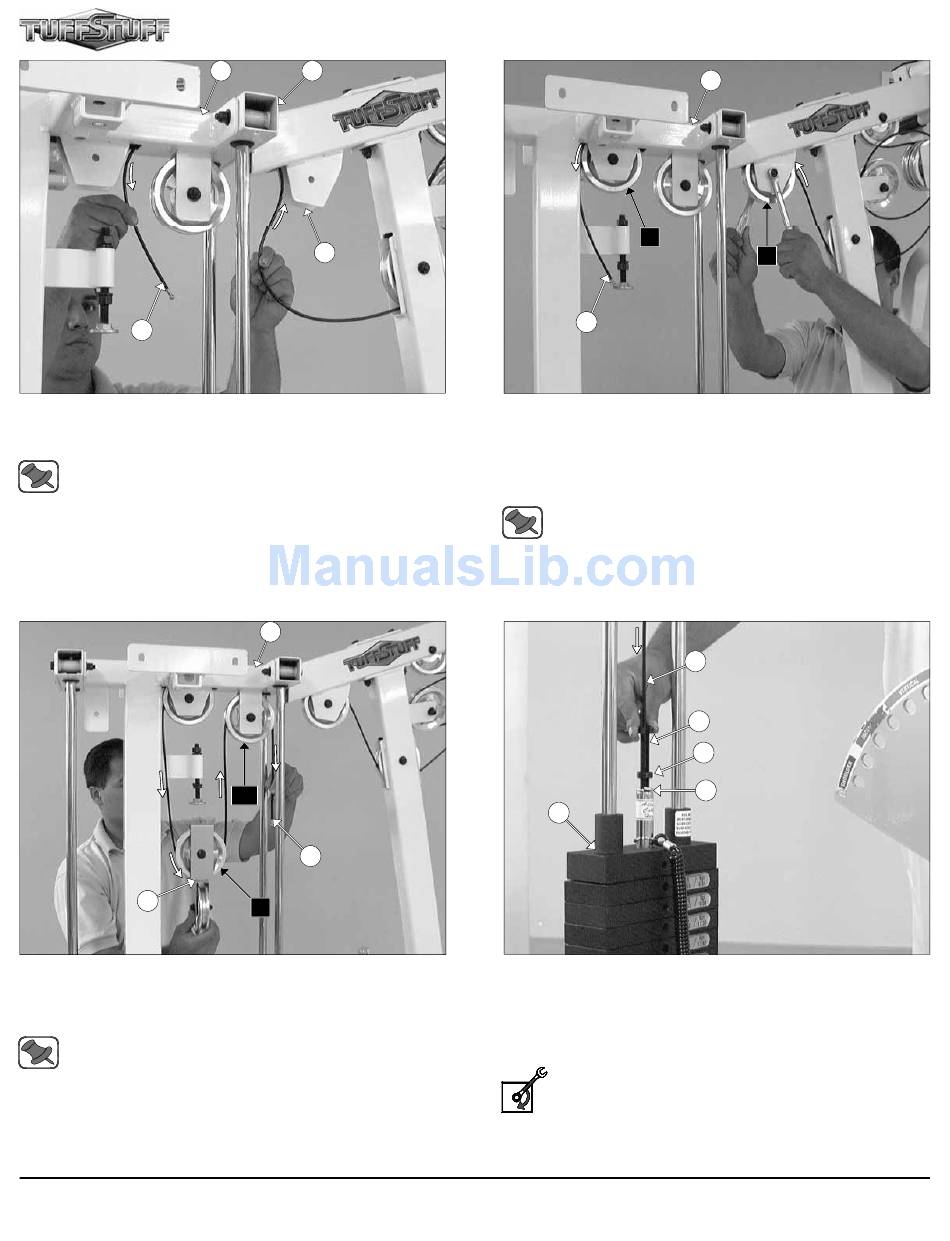

FIG. 33

Route the Lat Cable (#22) passing through the openings of
the Top Pulley Assembly (#49), the Press Bar Station Guide Rod
Retainer (#18), and the Weight Stack Frame (#53).
Note: Refer to the Cable Mapping Diagram on fold-out page 21

for further detailed illustration of the Lat Cable (#22) routing.

12
FIG. 35 Next, locate the Closed-End Double Pulley Bracket (#12)
and continue to route the Lat Cable (#22) down and under the Pulley 4
1/2 Rd. (#67-Labeled A9), then route up and over the Pulley 4 1/2 Rd.
(#67-Labeled A10).
Note: Refer to the Cable Mapping Diagram on fold-out page 21
for further detailed illustration of the Lat Cable (#22) routing.
11
53 18
49
53
A10
22
A9
A8
22
FIG. 34 Insert two Pulleys 4 1/2 Rd. (#67-Labeled A7, A8) into the
pulley brackets of the Top Pulley assembly (#49) and the Weight
Stack Frame (#53). Secure the pulleys into place using two Hex Head
Cap Screws 3/8-16 X 1 3/4 (#97), four Flat Washers SAE 3/8" (#93),
and two Nylon Insert Jam Lock Nuts 3/8-16 (#118). Be sure the cable
is routed properly into the groove of the pulleys.
Note: Refer to the Cable Mapping Diagram on fold-out page 21
for further detailed illustration of the Lat Cable (#22) routing.
58
FIG. 36 Attach one Split Hex Tap Bolt 1/2-13 X 3 1/2 (#151) to the
Lat Cable (#22). Then, thread one Finished Hex Nut 1/2-13 (#88) and
insert one Split Lock Washer 1/2" (#153) to the Split Hex Tap Bolt 1/2-
13 X 3 1/2 (#151).
Next, thread the Split Hex Tap Bolt 1/2-13 X 3 1/2 (#151) to the Top
Plate Selector Bar (#58).
Loosely Fasten: Do not completely fasten this hardware as-
sembly at this time, as it will be completely fasten later in the
assembly process to obtain proper cable tension.
Apollo Modular Gym System (Base Unit)
53
A7
22
151
88
