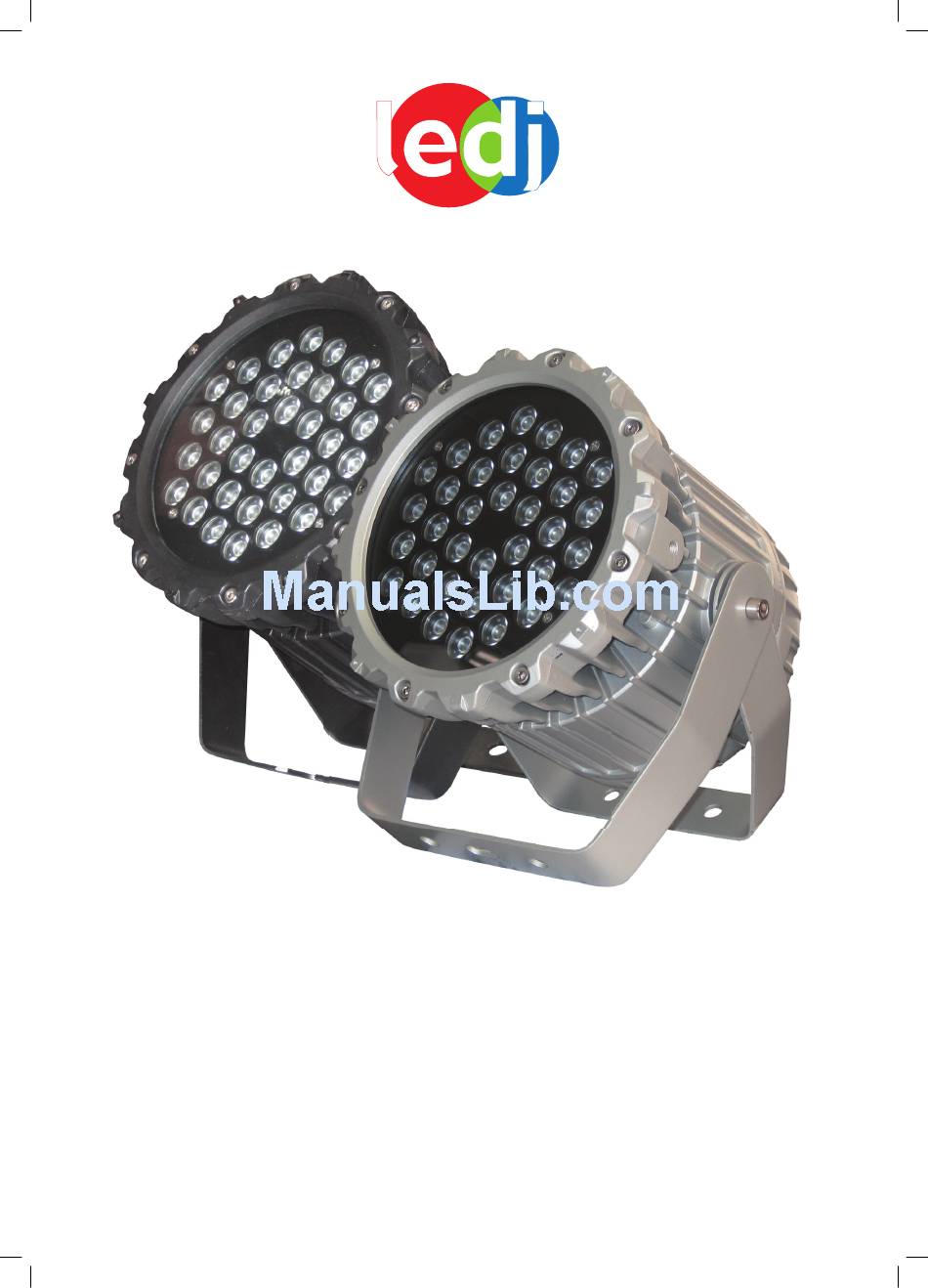

Page 1: User Manual

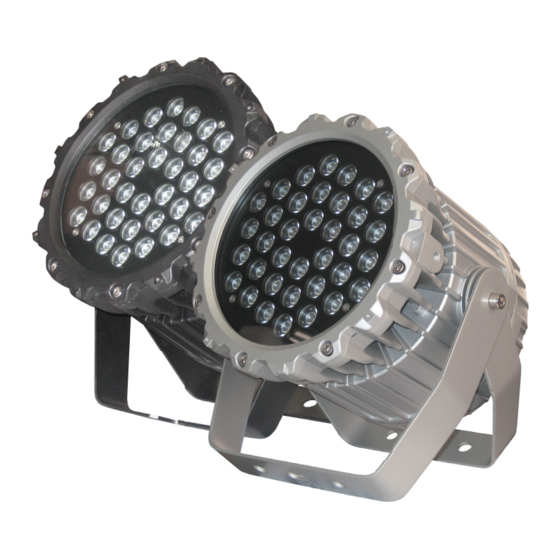

. p r o l i g h t . c o . u k LEDJ Xterior Wash Order code: LEDJ131 (1W - Silver) Order code: LEDJ132 (1W - Black) Order code: LEDJ133 (3W - Silver) Order code: LEDJ134 (3W - Black) - Page 2 Xterior Wash Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! THIS UNIT ONLY ACCEPTS AN INPUT VOLTAGE OF 240V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual...
- Page 3 Xterior Wash Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Xterior Wash Technical specifications You should find inside the LEDJ carton the following items: 1, Xterior Wash Unit 2, Instruction manual Technical Specifications: 400Hz flicker free 1W or 3W LEDs Voltage: AC 240 ~ 50Hz 36 Ultra bright 1W LEDs (R: 12, G: 12, B: 12)
- Page 5 Xterior Wash Operation There are 5 different operation modes to choose from: 1) Static colour mode 2) Colour change mode 3) Colour fade mode 4) Slave mode 5) DMX mode 1, Static colour mode Mode button - Press the “MODE” button under the LED display, to show “C000”, then press the “SET UP”...
- Page 6 Xterior Wash Operation 6 Channel DMX chart Channel Value Function 000-255 Master dimmer 000-255 Red (0 - 100%) 000-255 Green (0 - 100%) 000-255 Blue (0-100%) Blackout 5-84 Colour macro 85-169 Colour change 170-255 Colour fade 0-255 Strobe...
- Page 8 www.prolight.co.uk...
