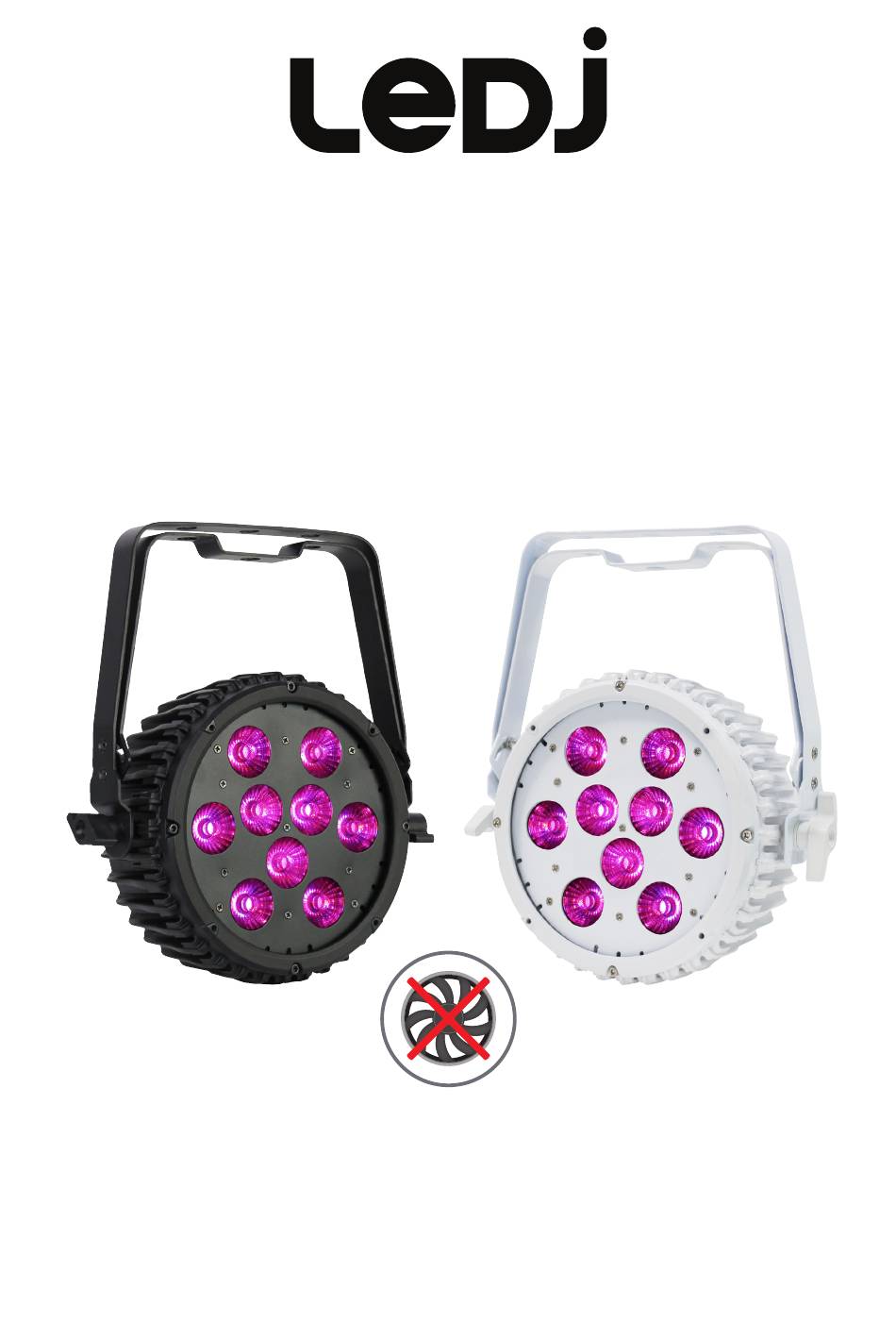

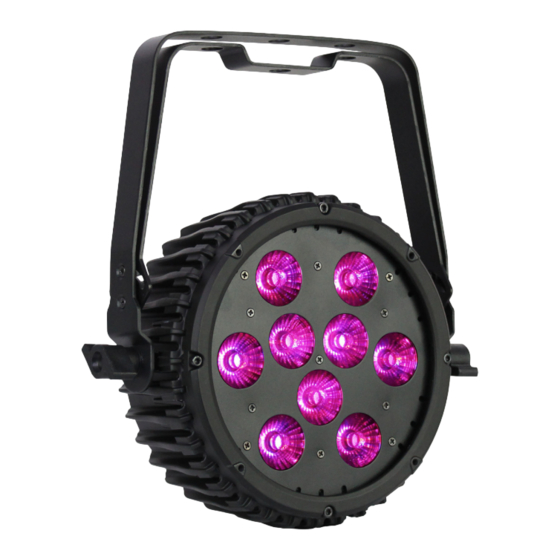

- Page 1 Intense 9HEX10 LED Slim Par 9 x 10W six-colour LEDs (RGBWAUV) User Manual Convection cooled, no fan! Order code: LEDJ254A (Black Housing) LEDJ254AZ (White Housing)
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 Product overview & technical specifications Intense 9HEX10 LED Slim Par Powered by 9 x 10W RGBWAUV LEDs within a compact, die-cast chassis the Intense 9HEX10 provides a smooth wash of vibrant colour. Featuring 6-in- 1 colour LEDs this fixture advances from standard RGB colour mixing with the addition of white for pastel shades, amber for rich, warm tones and UV for intense hues. The convection cooled chassis ensures silent running and features mounting points for the optional barn door/gel frame kit (LEDJ253A - Black/LEDJ253AZ - White). • 9 x 10W 6-in-1 colour LEDs (RGBWAUV) Specifications Intense 9HEX10 • Beam angle: 25° (field angle: 35°) Power consumption • 2244 Lux @ 2m (full on) Power supply 100~240V, 50/60Hz • 4.2kHz refresh rate Fuse T1.5A 250V • DMX channels: 2/3/3/4/4/5/6/8 Dimensions 295 x 260 x 93mm or 10 selectable Weight 2.6kg • Static colour, colour change, colour Order code LEDJ254A (Black Housing) fade, auto run, sound active and LEDJ254AZ (White Housing) master/slave modes • 0 - 100% dimming with variable strobe...
-
Page 4: Dmx Channel Mode
Operating instructions DMX channel mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. d001 To access the DMX channel mode, press the “MODE” button on the rear of the unit to show on the LED display. Now use the “UP” and “DOWN” buttons to set the desired DMX address. Now press the “ENTER” button to choose one of the 6, 8 or 10 DMX channel modes, press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MODE” button. 2 channel mode: Channel Value Function 000-255 Master dimmer (0-100%) 000-016 000-255 colour macro 017-033 Green 034-050 Blue 051-067 White 068-084 Amber 085-101 102-118 Yellow (R - 255, G - 200, A - 255) 119-135 Cyan (G - 255, B - 255) 136-152 Lavender (R - 170, B - 210) 153-169 Bright green (G - 255, A - 180) 170-186 Magenta (R - 255, B - 90, UV - 255) - Page 5 Operating instructions 3 channel mode: Channel Value Function 000-255 Master dimmer (0-100%) 000-255 Flash (speed 0-100%, 1Hz-20Hz) 000-004 Blackout 005-010 011-015 Green 016-020 Blue 021-025 White 026-030 Amber 031-035 036-040 Yellow (R - 255, G - 200, A - 255) 041-045 Cyan (G - 255, B - 255) 046-050 Lavender (R - 170, B - 210) 051-055 Bright green (G - 255, A - 180) 056-060 Magenta (R - 255, B - 90, UV - 255) 061-065 Turquoise (G - 255, B - 180, UV - 255) 066-070 Orange (R - 200, A - 200) 071-075 Cool white (R - 70, G - 190, B - 255, A - 200) 076-080 Warm white (R - 230, G - 255, B - 255, A - 255, W - 255) 081-150...
- Page 6 8 channel mode: 10 channel mode: Channel Value Function Channel Value Function 000-255 Red (0-100%) 000-255 Master dimmer (0-100%) 000-255 Green (0-100%) 000-255 Red (0-100%) 000-255 Blue (0-100%) 000-255 Green (0-100%) 000-255 White (0-100%) 000-255 Blue (0-100%) 000-255 Amber (0-100%) 000-255 White (0-100%) 000-255 UV (0-100%) 000-255 Amber (0-100%) 000-255 Master dimmer (0-100%) 000-255 UV (0-100%) 000-255 Strobe (slow-fast) No function 001-041 Program 1 - Static colour...
-
Page 7: Master/Slave Mode
Operating instructions Built-in program mode: Pr. 0 1 To access the built-in program mode press “MODE” until the display shows on the LED display. Pr. 0 1 Pr. 0 6 Use the “UP” and “DOWN” buttons to select a program from Press the “ENTER” button to confirm the setting. To change the speed of the selected program press the “ENTER” button and then use the “UP” and SP00 SP99 “DOWN” buttons to select any value from . Press the “ENTER” button to confirm the F500 F599 setting, then use the “UP” and “DOWN” buttons to select and value from for the strobe feature. Press the “ENTER” button to confirm the setting. Pr. 0 1 Pr. 0 1 In you are able to set a specific static colour. When in press the “ENTER”... -
Page 8: Sound-Active Mode
Operating instructions Sound active mode: SU00 To access the sound active mode, press the “MODE” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the SU. 0 0 SU. 3 1 sound sensitivity level from and press the “ENTER” button to confirm the setting. Value: 00 - 31 (00 = low, 99 = high) To exit out of any of the above options, press the “MODE” button. Auto mode: Auto To access the auto mode press “ENTER” until the display shows on the LED display. The fixture will now run through its built in programs. NOTE: The user can set up the speed and flash Pr. 0 2 Pr. 0 6 speed for under the built in programs mode. Changing this here will then take effect when running auto mode. -
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. It is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL9O, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual... -
Page 12: Optional Accessories
Optional accessories Please contact your local retailer to purchase these accessories. Optional barn door/gel frame Order code: LEDJ253A To keep up-to-date on the latest accessories and product range additions please visit www.prolight.co.uk www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual...
