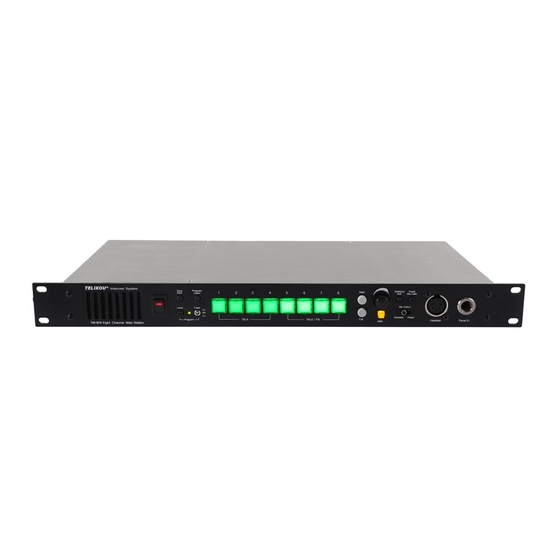

- Page 1 TELIKOU Intercom System TM-800 Main Station Instruction Manual © TELIKOU Systems All Rights Reserved...
- Page 2 TELIKOU TM-800 Eight Channel Main Station I. Introduction Thank you for choosing TELIKOU intercom product. TM-800 main station is suitable for television station, communication center, UB truck, live performance and any other environment which requires communication. We recommend you read through this manual to better understand the functions of TM-800。...
- Page 3 TELIKOU TM-800 Eight Channel Main Station Headset connector 4-pin XLR Male or 5-pin XLR Female Earphone: Dynamic 8-300 ohm Microphone: Dynamic 200 ohm The wiring of headset is as follow: Pin 1 --- Mic. common Pin 2 --- Mic. hot...
- Page 4 13. Tone Alert Level Control When TM-800 receives external call signal, the internal buzzer will sent a hum to panel speaker and earphone. This knob adjusts the hum level. 14. Program Listen Level Control This knob is used to adjust the volume level of background program level which heard from earphone and speaker.
- Page 5 17. Sidetone zero-adjusting The TM-800 uses full-duplex audio in which the talk and listen audio are sent and received on the same line. Thus, when you talk on a channel, you will also here your own voice back in the speaker or earphone.
- Page 6 1 Turn off all the microphones on sub-stations and belt packs. 2 Followed by A) and B), adjust sidetone on TM-800 main station. 3 Turn on the microphone on sub-station and belt packs one by one, and then adjust the Sidetone to satisfied level.
- Page 7 TELIKOU TM-800 Eight Channel Main Station Pin 2 --- Power (+24 VDC) Pin 3 --- Audio 22. Channel 5-8 Intercom Line connector and IFB Output 3-pin XLR male socket, The pin-out of the intercom connectors is as follows: Pin 1 --- Common (Shield)
- Page 8 B). Cable connection The standard TELIKOU intercom cable is connected with a pair of 3-pin XLR connectors. If longer cable is required, you can connect several cables together with head-end method.
- Page 9 V Troubleshooting Problem: Power LED wink Cause 1: Direct short on the intercom channel Solution 1: Remove all the intercom cables from TM-800. Check each channel one by one, until find the short channel. Cause 2: Overload Solution 2: Decrease the amount of remote stations.
-
Page 10: Power Supply
TELIKOU TM-800 Eight Channel Main Station stations to power lines or transformers. Solution 1: Relocate the offending unit. Cause 2: Intercom line cable is not wired properly; the shield of microphone cable is not connected to Pin-1 of 3-XLR Solution 2: Check intercom line cable. Make sure all the cables’ Pin-1 of 3-XLR connects correct.
