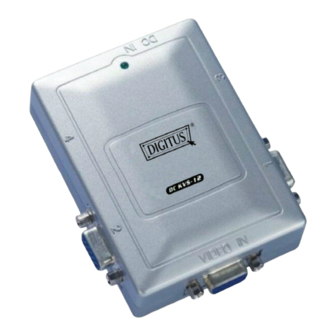

Digitus DC-KVS-12 User Manual

VIDEO
SPLITTER
(DC-KVS-12)
1 In 2 Out
(DC-KVS-14)
1 In 4 Out

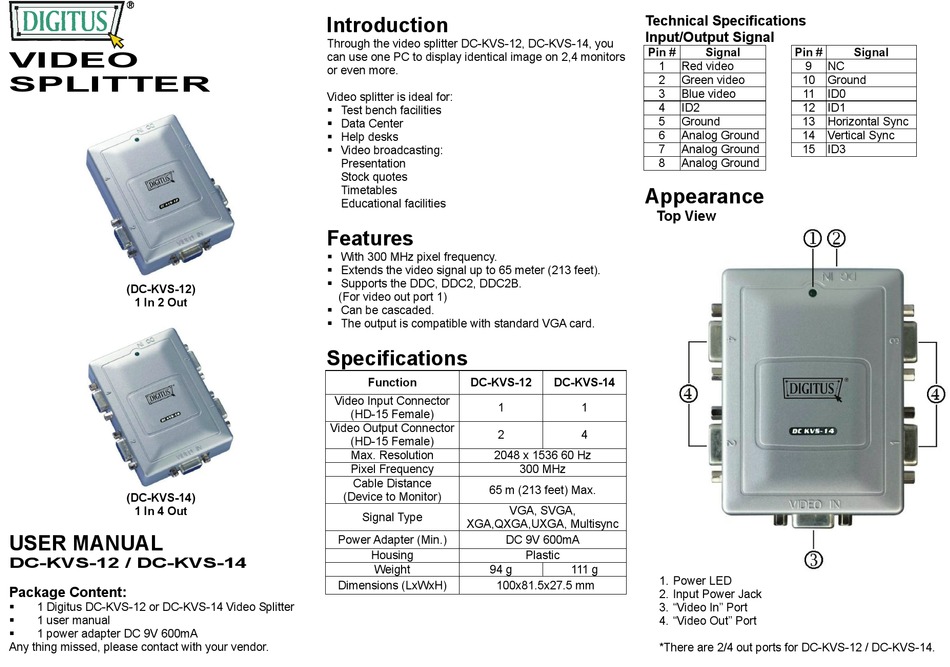

USER MANUAL

DC-KVS-12 / DC-KVS-14
Package Content:
1 Digitus DC-KVS-12 or DC-KVS-14 Video Splitter

 1 user manual
 1 power adapter DC 9V 600mA
Any thing missed, please contact with your vendor.
Introduction
Through the video splitter DC-KVS-12, DC-KVS-14, you
can use one PC to display identical image on 2,4 monitors
or even more.
Video splitter is ideal for:
 Test bench facilities
 Data Center
 Help desks
 Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities
Features
 With 300 MHz pixel frequency.
 Extends the video signal up to 65 meter (213 feet).
 Supports the DDC, DDC2, DDC2B.
(For video out port 1)
 Can be cascaded.
 The output is compatible with standard VGA card.

Specifications

Function DC-KVS-12
Video Input Connector
1
(HD-15 Female)
Video Output Connector
2
(HD-15 Female)
Max. Resolution 2048 x 1536 60 Hz
Pixel Frequency
Cable Distance
65 m (213 feet) Max.
(Device to Monitor)
Signal Type
XGA,QXGA,UXGA, Multisync
Power Adapter (Min.) DC 9V 600mA
Housing
Weight 94 g
Dimensions (LxWxH) 100x81.5x27.5 mm
Technical Specifications
Input/Output Signal
Pin #
1 Red video
2 Green video
3 Blue video
4 ID2
5 Ground
6 Analog Ground
7 Analog Ground
8 Analog Ground
Appearance
Top View
DC-KVS-14
1
4
300 MHz
VGA, SVGA,
Plastic
111 g
1. Power LED
2. Input Power Jack
3. "Video In" Port
4. "Video Out" Port
*There are 2/4 out ports for DC-KVS-12 / DC-KVS-14.
Signal Pin # Signal
9 NC
10 Ground
11 ID0
12 ID1
13 Horizontal Sync
14 Vertical Sync
15 ID3
