Summary of Contents for Digitus DA-70156

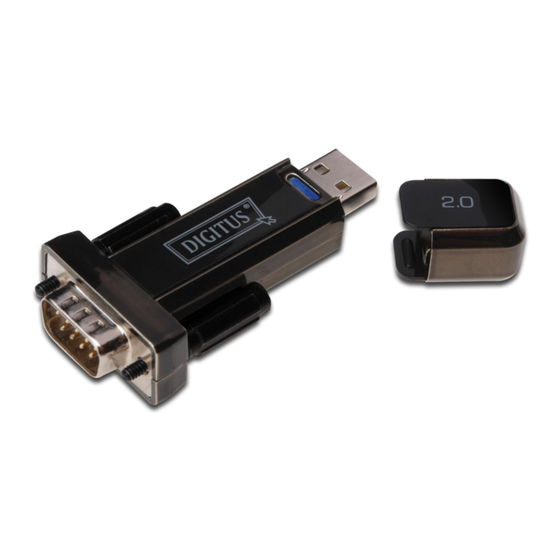

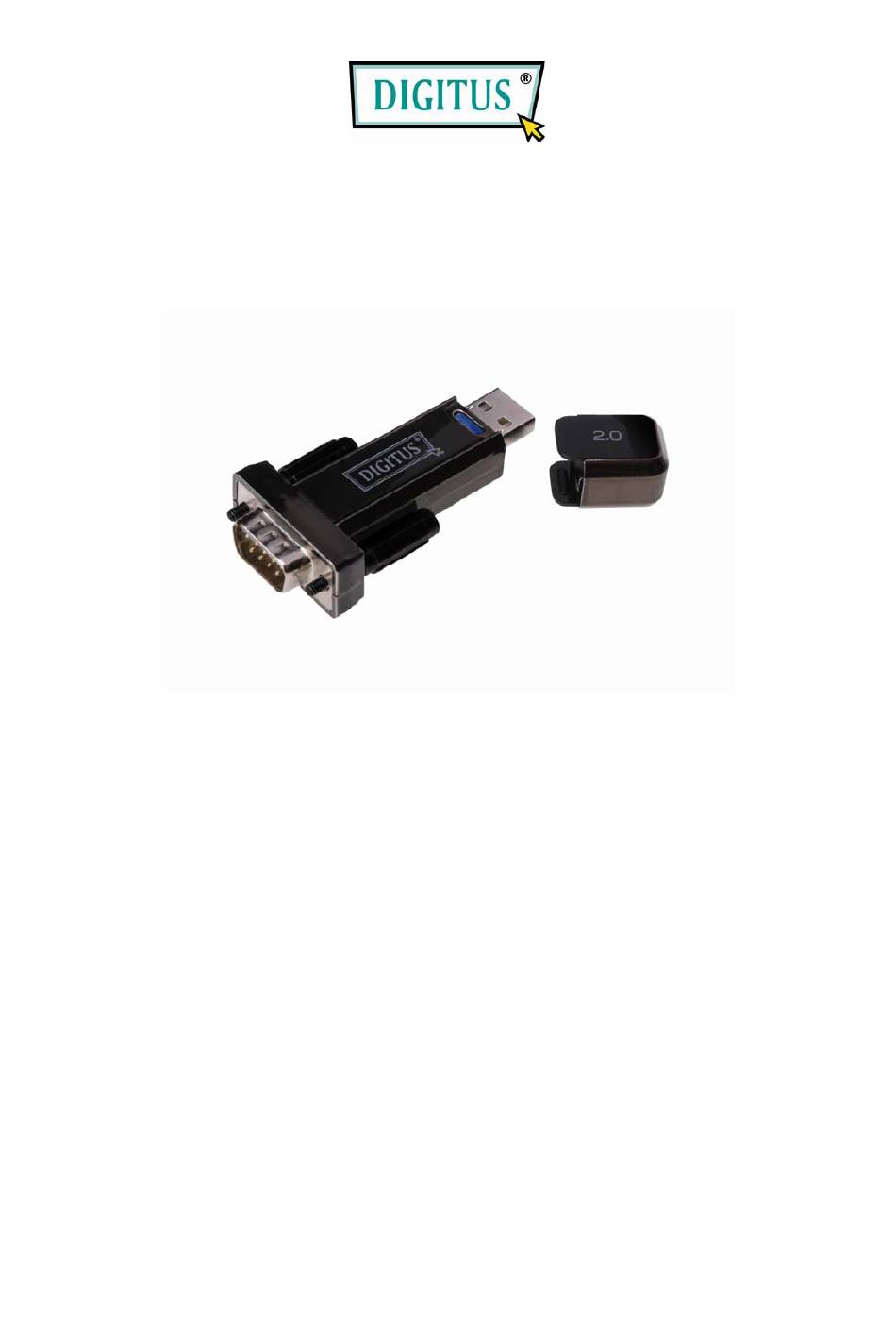

- Page 1 USB TO SERIAL CONVERTER User Manual (DA-70156) ELECTROSÓN...
- Page 2 Windows XP Installation Guide Step 1: Insert CD Driver of this product to the CD-ROM Step 2: Connect the device to a spare USB port on your PC, and find new hardware wizard, please refer to the f ollowing chart: ELECTROSÓN...
- Page 3 Step 3: Select “No, not this time“, click “Next” to continue. Step 4: Select “Install from a list or specific location (Advanced)”, click “Next” to continue. ELECTROSÓN...
- Page 4 Step 5: Select “Search removable media (floppy, CD-ROD…)”, click “Next” to continue. Step 6: Auto search for the corresponding driver in the CD. ELECTROSÓN...
- Page 5 Step 7: You will find two types of hardware wizard, one is for USB 2.0 TO RS232 Converter, another one is for USB 2.0 TO RS232 cable. Please choose the corresponding driver according to your product, click “Next” to continue. Step 8: The wizard has started installation and copy file to your system ELECTROSÓN...
- Page 6 Step 9: Click “Finish” to close the wizard. Step 10: Find new com port. ELECTROSÓN...
- Page 7 Step 11: Select “No, not this time“, click “Next” to continue. Step 12: Select “Install from a list or specific location (Advanced), click “Next” to continue. ELECTROSÓN...
- Page 8 Step 13: Select “Search removable media (floppy,CD-ROM…)”,click “Next” to continue. Step 14: Auto search for the corresponding driver in the CD. ELECTROSÓN...
- Page 9 Step 15: Choose one type of the driver for your product, click “Next” to continue. Step 16: The wizard has started installation and copy file to your system . ELECTROSÓN...
- Page 10 Step 17: Installation completed, click “Finish” to close the wizard. Step 18: Your new hardware is installed and ready to use. ELECTROSÓN...
- Page 11 Step 19: If you want to see it, right click “my computer”, and then click “Properties”. ELECTROSÓN...
- Page 12 Step 20: Select “Device Manager” in the “Hardware” of the interface “System Properties”, click it, you can see the hardware devices installed on your computer, please refer to the following chart: Step 21: Installation finished. Remarks: After installation, if you can see “USB Serial Converter” from the “Device Manager”, but can’t see “USB Serial Port (COM3)”, please continue next steps.
- Page 13 Step A: Right click “USB Serial Converter”, and then click “Properties”. ELECTROSÓN...
-
Page 14: Remove Driver
Step B: Select “Load VCP” in the “Advanced”, click “OK”. Step C: Move out USB TO RS232 on your computer. Connect the device to an old USB port on your PC again, now it is ok, please refers to the following chart: Congratulations, installation is successful. - Page 15 3，click “Clean System”, it appears the following interface： ELECTROSÓN...
- Page 16 4，Disconnect USB 2.0 To rs232 device from the pc，click “ok” it appears the following interface, then click „Yes” 5, please click “No” to uninstall driver 6, When Uninstall is completed, please click “Exit” to terminate the uninstall application. ELECTROSÓN...
- Page 17 Mac OS X Installation Guide 1 Welcome to the Mac OS X Installation Guide This document describes the procedure for installing the Mac OS X FTDIUSBSerial driver for FTDI's FT2232C, FT232BM, FT245BM, FT8U232AM and FT8U245AM devices. The driver is available for free download from the Drivers section of the FTDI web site.
- Page 18 When the computer has rebooted, plug in the device. If the device is installed properly, you will see entries in the /dev directory: /dev/cu.usbserial-xxxxxxxx /dev/tty.usbserial-xxxxxxxx where xxxxxxxx is either the device's serial number or, for unserialized devices, a location string that depends on which USB port your device is connected to. Note that for FT2232C devices port A is denoted by the serial number appended with "A"...
- Page 19 enabled from this screen by checking the On box and clicking Apply Now. At this point, it is possible to exit Network and use the device as a COM port. If you wish to set the device up a a modem for an Internet connection, select the new port from the Show list to display the window below.
- Page 20 Entries for this screen are specific to the Internet account for each user. If you do not know the required details, contact your Internet service provider. 3 Uninstalling FTDIUSBSerialDriver To remove the drivers from Mac OS X, the user must be logged on as root. Root is a reserved username that has the privileges required to access all files.
- Page 21 4 How do I know what my deviceID is? Launch the System Profiler utility, or Apple System Profiler for earlier versions of OS X. This can be accessed by going to the Finder and selecting Applications from the Go menu, then open the Utilities folder. Select USB under Hardware in the pane to the left and then select the appropriate device from the USB Device Tree.
- Page 22 If the device does not work after installing the driver, it is likely to be because the PID is supported by the driver. If this is the case, contact FTDI Support with the PID that needs to be added to the driver. If the VID is not 0x0403, it is likely that the device is not an FTDI device and we cannot support it.
- Page 23 Windows CE Installation Guide 1 Welcome to the Windows CE Installation Guide The purpose of this MANUAL is to provide users of USB 2.0 To RS232 with a simple procedure for installing drivers for their devices on PDAs and targets running Windows CE 4.2 and later.
