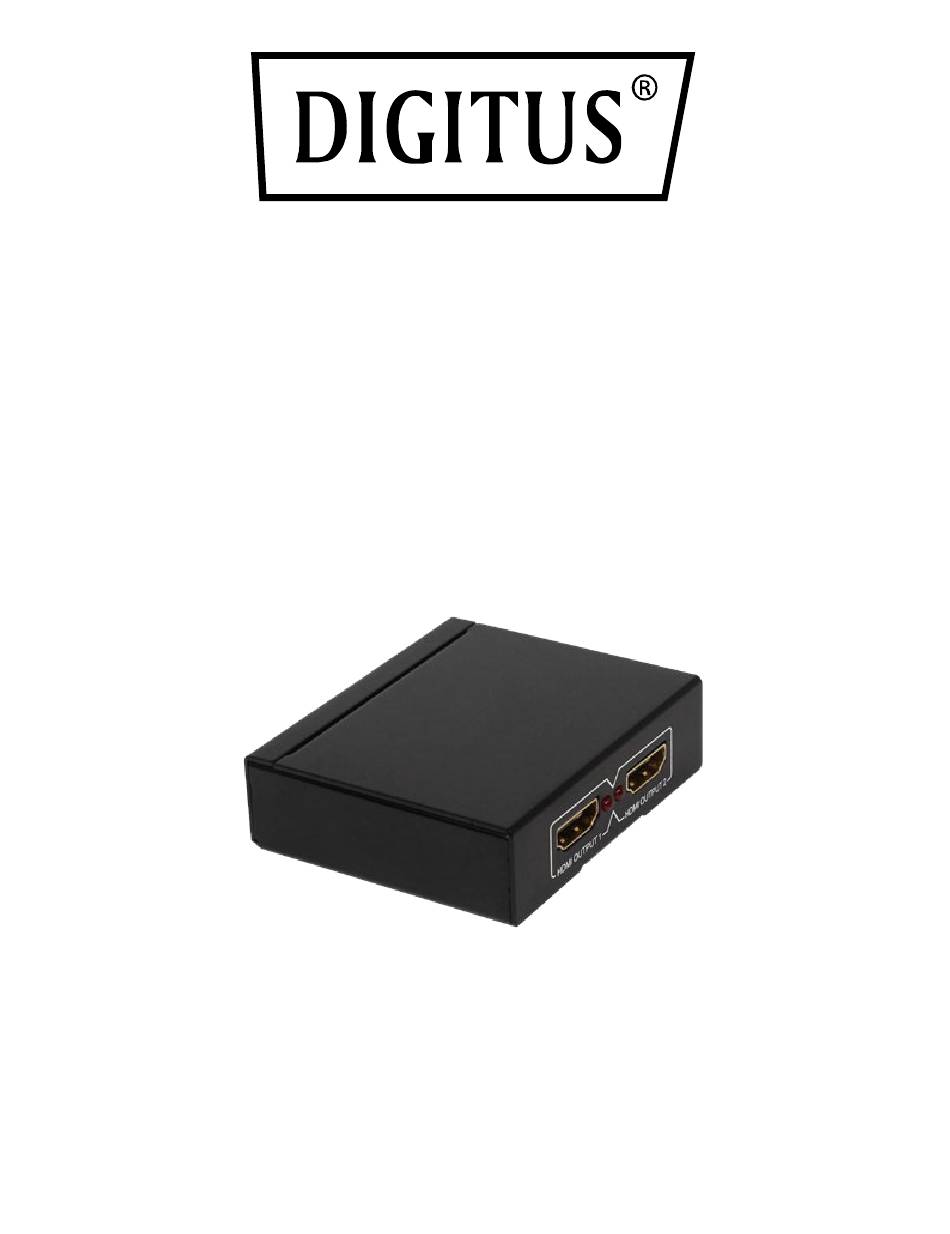

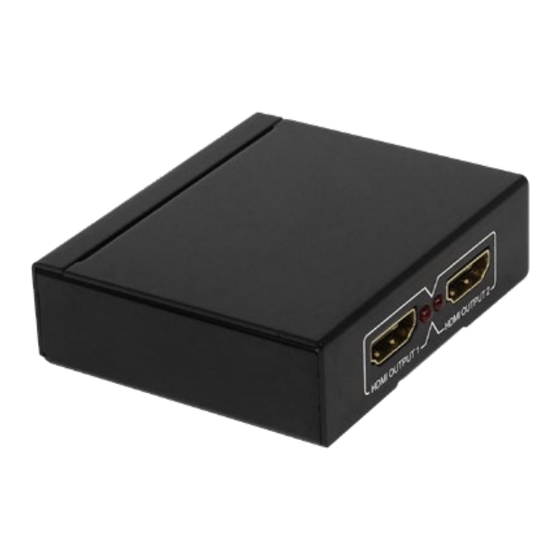

- Page 1 HDMI® Splitter, 1x2, 4K / 30 Hz Quick Installation Guide DS-45340...
-
Page 2: Table Of Contents
Table of Contents Introduction ........3 Feature ........... 3 Package Content ......4 Specifications ........4 Product Overview ......6 Application Example ....... 8... -
Page 3: Introduction
1. Introduction Splits an HDMI input signal onto two output displays. It supports a maximum resolution of 4K2K/30Hz. Via an EDID changeover switch, two modes can be selected (Copy: HDMI output 1 / Auto mode: Automatically compares HDMI output 1&2 and merges together a new EDID and plays this back to the HDMI input. -
Page 4: Package Content
3. Package Content 1x HDMI splitter 1x Power adapter (DC 5V/1A, 1.5 m) 1x User manual 4. Specifications Technical HDMI Compliance HDMI1.4b HDCP Compliance HDCP1.4 Video Bandwidth 2.97Gbps Video Resolution Up to 4K×2K@30Hz DTS-HD/Dolby-true HD Audio Formats /LPCM 7.1/DTS/ Dolby-AC3/DSD Color Depth... - Page 5 Connection 1x HDMI Type A Input (19-pin female) 2x HDMI Type A Output (19-pin female) Mechanical Housing Metal Enclosure Color Black Dimensions 60 x 70 x 20mm Weight 125g Power Supply DC 5V/1A Power 1.5W Consumption Operation 32 - 104°F / 0 - 40°C Temperature Storage -4 - 140°F / -20 - 60°C...
-
Page 6: Product Overview
5. Product Overview Name Function Description Use the switch to set EDID mode: Copy mode: Copy the EDID of HDMI OUTPUT 1 port to the EDID input port. switch Auto mode: Compare the EDID of two HDMI output ports automatically, and merge a new EDID to the input port. - Page 7 DC 5V 5V DC power supply port. HDMI signal input port. Connect HDMI to HDMI source device such as INPUT DVD or PS3 box with HDMI cable. Input Red LED is on when there is HDMI signal input. HDMI HDMI signal output port 1. OUTPUT Connect to HDMI display device such as HDTV or Monitor.
-
Page 8: Application Example
6. Application Example 1. Power Supply 2. TV or Monitor 3. DVD or Blu-ray Player... - Page 9 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
