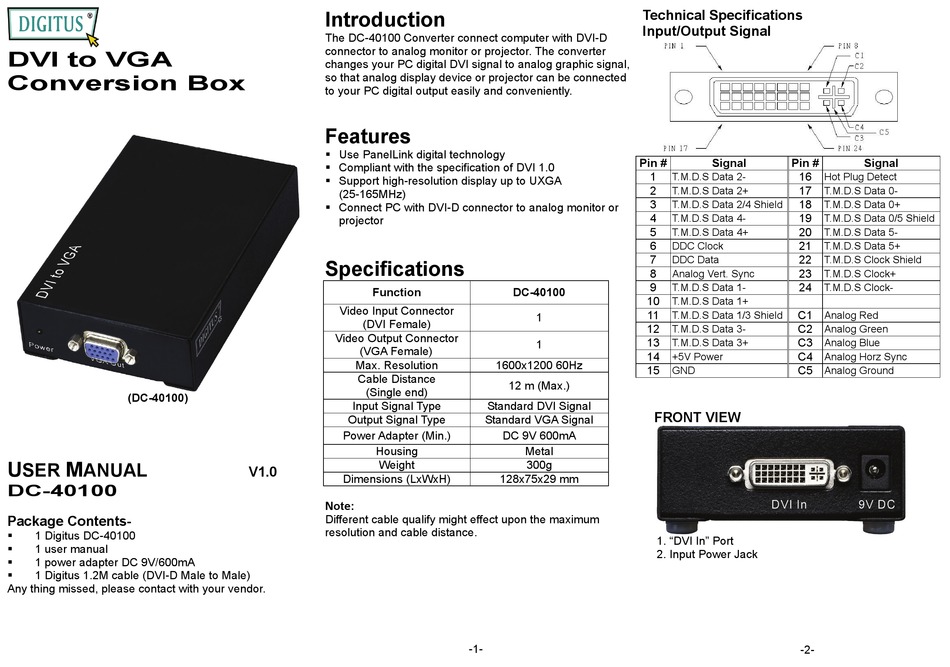

Digitus DC-40100 User Manual

DVI to VGA
Conversion Box
(DC-40100)
U M
SER ANUAL
DC-40100
Package Contents-
 1 Digitus DC-40100
 1 user manual
 1 power adapter DC 9V/600mA
 1 Digitus 1.2M cable (DVI-D Male to Male)
Any thing missed, please contact with your vendor.
Introduction
The DC-40100 Converter connect computer with DVI-D
connector to analog monitor or projector. The converter
changes your PC digital DVI signal to analog graphic signal,
so that analog display device or projector can be connected
to your PC digital output easily and conveniently.
Features
 Use PanelLink digital technology
 Compliant with the specification of DVI 1.0
 Support high-resolution display up to UXGA
(25-165MHz)
 Connect PC with DVI-D connector to analog monitor or
projector
Specifications
Function
Video Input Connector
(DVI Female)
Video Output Connector
(VGA Female)
Max. Resolution
Cable Distance
(Single end)
Input Signal Type
Output Signal Type
Power Adapter (Min.)
Housing
Weight
V1.0
Dimensions (LxWxH)
Note:
Different cable qualify might effect upon the maximum
resolution and cable distance.
Technical Specifications
Input/Output Signal
Pin #
DC-40100
10
11
1
12
13
1
14
1600x1200 60Hz
15
12 m (Max.)
Standard DVI Signal
Standard VGA Signal
DC 9V 600mA
Metal
300g
128x75x29 mm
-1-
Signal Pin #
1 16
T.M.D.S Data 2- Hot Plug Detect
2 T.M.D.S Data 2+ 17 T.M.D.S Data 0-
3 18
T.M.D.S Data 2/4 Shield T.M.D.S Data 0+
4 19
T.M.D.S Data 4- T.M.D.S Data 0/5 Shield
5 20
T.M.D.S Data 4+ T.M.D.S Data 5-
6 21
DDC Clock T.M.D.S Data 5+
7 DDC Data 22 T.M.D.S Clock Shield
8 Analog Vert. Sync 23 T.M.D.S Clock+
9 24
T.M.D.S Data 1- T.M.D.S Clock-
T.M.D.S Data 1+
C1
T.M.D.S Data 1/3 Shield Analog Red
C2
T.M.D.S Data 3- Analog Green
T.M.D.S Data 3+ C3 Analog Blue
C4
+5V Power Analog Horz Sync
C5
GND Analog Ground
FRONT VIEW
1. "DVI In" Port
2. Input Power Jack
-2-
