Summary of Contents for Digitus DS-40138

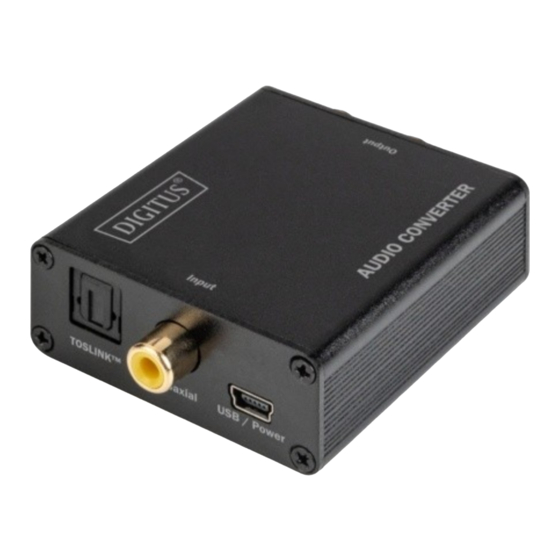

- Page 1 AUDIO CONVERTER, COAXIAL / TOSLINK™, DIGITAL <=> ANALOG Manual DS-40138...
- Page 2 Dear Customer Thank you for purchasing this Audio Converter. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1.0 Introduction The Digital TOSLINK™/Optical SPDIF to RCA Audio Converter lets you convert a 2-channel Digital Coaxial or TOSLINK™/Optical SPDIF input signal into an RCA and 3.5mm analog stereo output.
- Page 3 Ultra low jitter and high fidelity design using new receiver & D/A converter chips Auto sensing input selection with priority given to SPDIF; disable / disconnect SPDIF input for coaxial Input application 3.0 Specification Input Audio Coaxial or TOSLINK™ digital audio Output Audio L/R audio or 3.5 mm Input Audio Connector...
- Page 4 4.0 Package Content 1) Main Unit 2) USB Power Cable 3) User Manual 5.0 Panel Description...
- Page 5 6.0 Connection and Operation Gaming console R/L cable Blu-Ray / DVD 3.5 mm stereo cable TOSLINK™ cable Amplifier Coaxial cable Headphones Before installation, please make sure all devices you wish to connect have been turned off. 1) Connect the audio source device to the Converter using appropriate TOSLINK™...
- Page 6 Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
