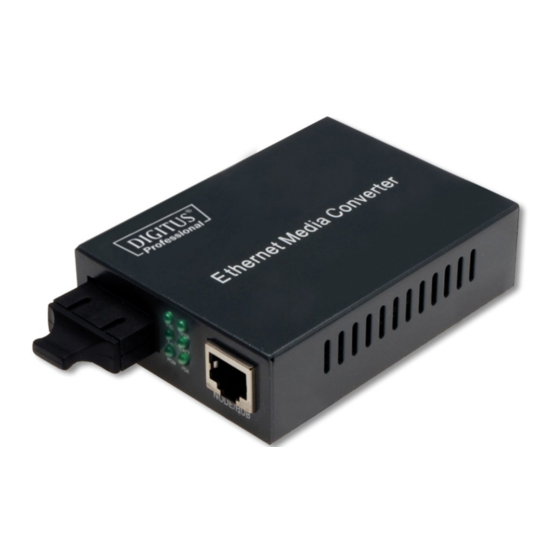

10/100Base-TX to 100Base-FX
1. Overview
IEEE802.3u Ethernet supports two types media for network connection
such as 10/100Base-TX and 100Base-FX. The bridge media converter
is designed with a switch controller and buffer memory that connects
two types segments operation smoothly. This converter can be used as
standalone unit or as slide-in module to the 483mm (19") converter rack
Chassis for use at a central wiring closet.
2. Check List
Before you start installing the Converter, verify that the package
contains the following:
Media Converter
User's Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DN-82010-1
Summary of Contents for Digitus DN-82010-1
-

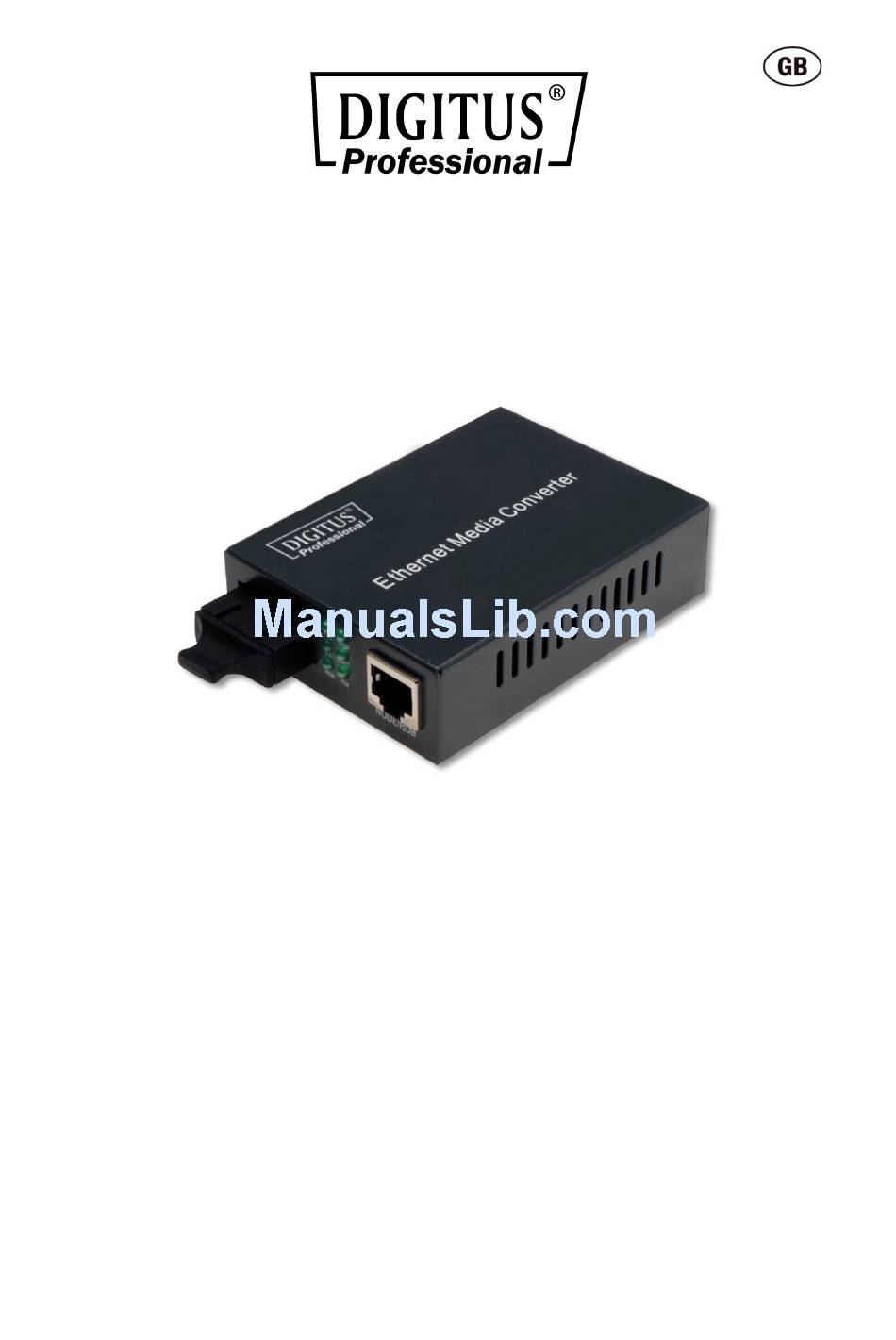

Page 1: Media Converter
10/100Base-TX to 100Base-FX Media Converter User’s Manual 1. Overview IEEE802.3u Ethernet supports two types media for network connection such as 10/100Base-TX and 100Base-FX. The bridge media converter is designed with a switch controller and buffer memory that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the 483mm (19”) converter rack Chassis for use at a central wiring closet. -
Page 2: Technical Specifications
- The TP-Fiber Converter - AC-DC Power Adapter (for external models) or Power Cord (for internal models) - The User’s Manual Please notify your local sales distributor immediately if any of the mentioned items is missing or damaged. 3. Technical Specifications IEEE802.3, IEEE802.3U, 10/100Base-TX, Standards 100Base-FX... -
Page 3: Installing The Converter
4. Installing the Converter Standalone unit: → Verify the AC-DC adapter conforms to your country AC power requirement and insert the power plug → Connect the media cable for network connection Slide-in unit: → The slide-in Media Converter and Converter Rack Chassis should supplied only from the same source, both Media Converter Rack Chassis are built to match each other at dimension, DC jack, DC receptacle and power safety. -
Page 4: Led Description
Fig. 2 Converter Front Panel for external power Fig. 3 Rear Panel 5. LED Description LED indicator lamp Status Description Connection status display for Fiber Link. “ON” indicates that Fiber link is in correct connection. FX Link/Act Active status display of fiber link. Blink “Blink”... -
Page 5: Troubleshooting
6. Connecting to TP, Fiber Device Default: 10/100Mbps Nway Converter TP Port a. Auto-Negotiation for Nway TP partner 10/100TX b. Half-Duplex for non-Nway TP partner, Class II hub, or 10Base-T device 100Mbps with duplex mode selectable: Converter Fiber Port a. Full-duplex for 100Fdx fiber link partner 100FX b. - Page 6 3. Is the ”Link action” LED illuminated on the fiber cable port? Check the fiber cables for proper connection. Verify that the TX and RX cables are connected to the RX and TX ports, respectively, on the 100Base-FX device. ...
