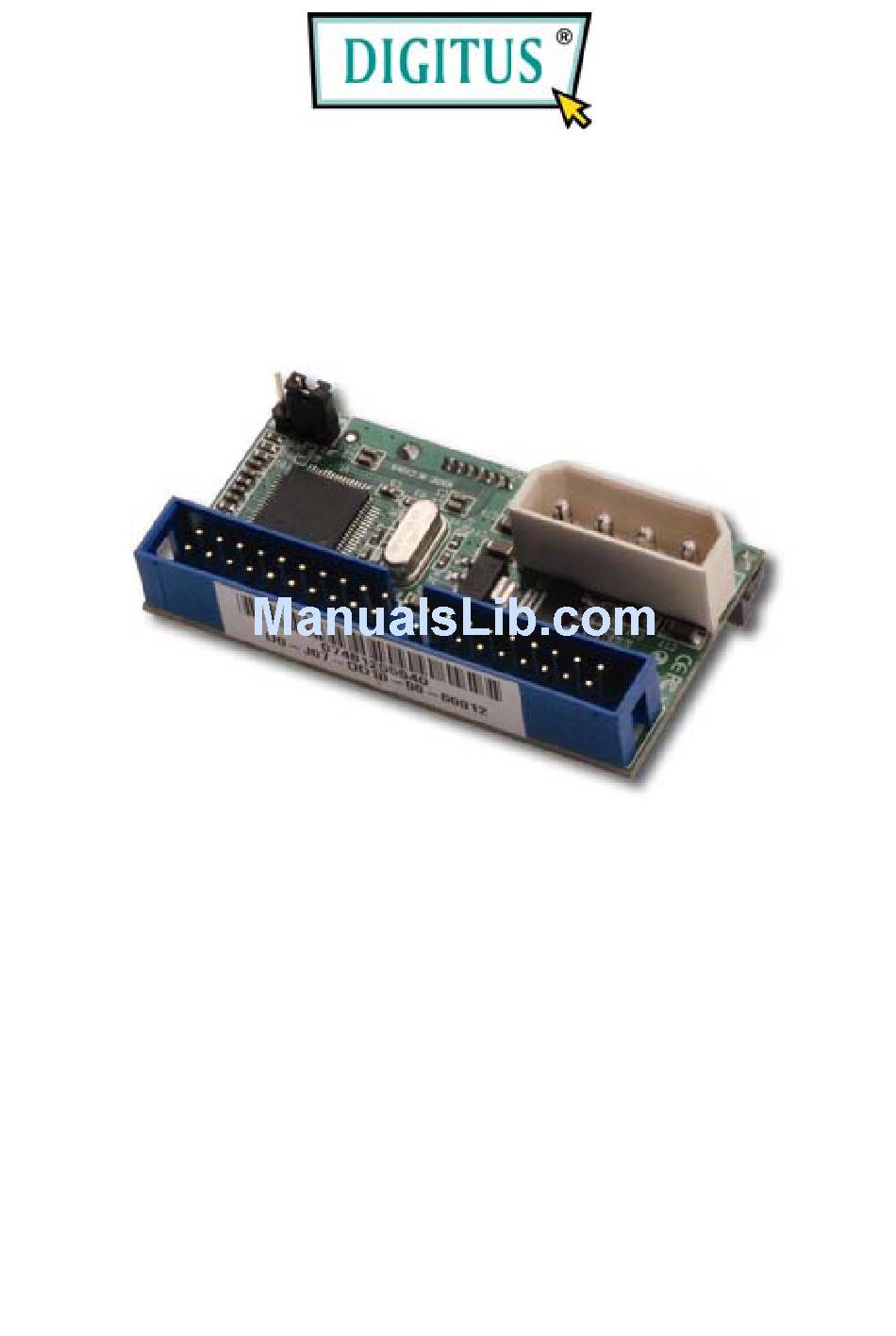

- Page 1 IDE - SATA Converter User Manual...
-
Page 2: Overall Features

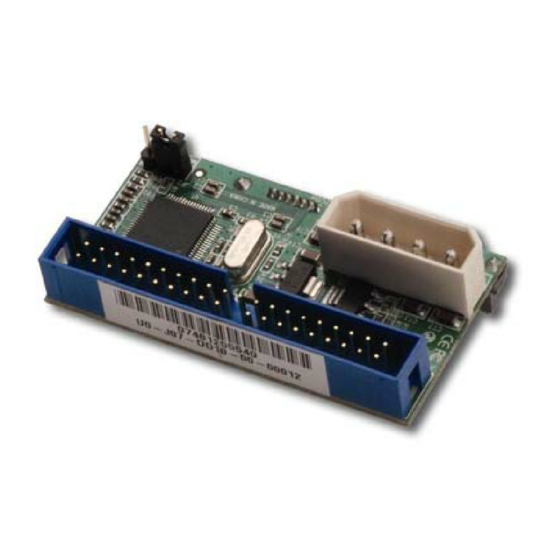

Introduction This Bridge Board is a converter solution for the Serial ATA Device. It has a standard 22 pin SATA port which can interface to a Serial ATA device (hard disk, CDROM, DVD, CD-RW, etc). It accepts Parallel ATA (IDE) commands through the 40 pin IDE connector form the host, decodes the commands and converts them to Serial ATA commands to the device. -
Page 3: Hardware Installation
Serial ATA Features Compliant with Serial ATA 1.0 specifications Supports Serial ATA Generation 1 transfer rate 1.5Gb/s Hardware Installation Decide the master or slave of this future IDE device choose the right choice by jumper. Connect the SATA 150 to... - Page 4 PATA Converter to your SATA device. Plug the IDE cable to SATA PATA Converter please remind the direction of IDE PIN. Plug the 4 PIN power cable to SATA 150 to PATA Converter.
- Page 5 Note: Please make sure that your PC is shut down during your hardware installation. This SATA 150 to PATA Converter with your SATA device is not hot swap device and please shut down your computer before your want to connect this device.
