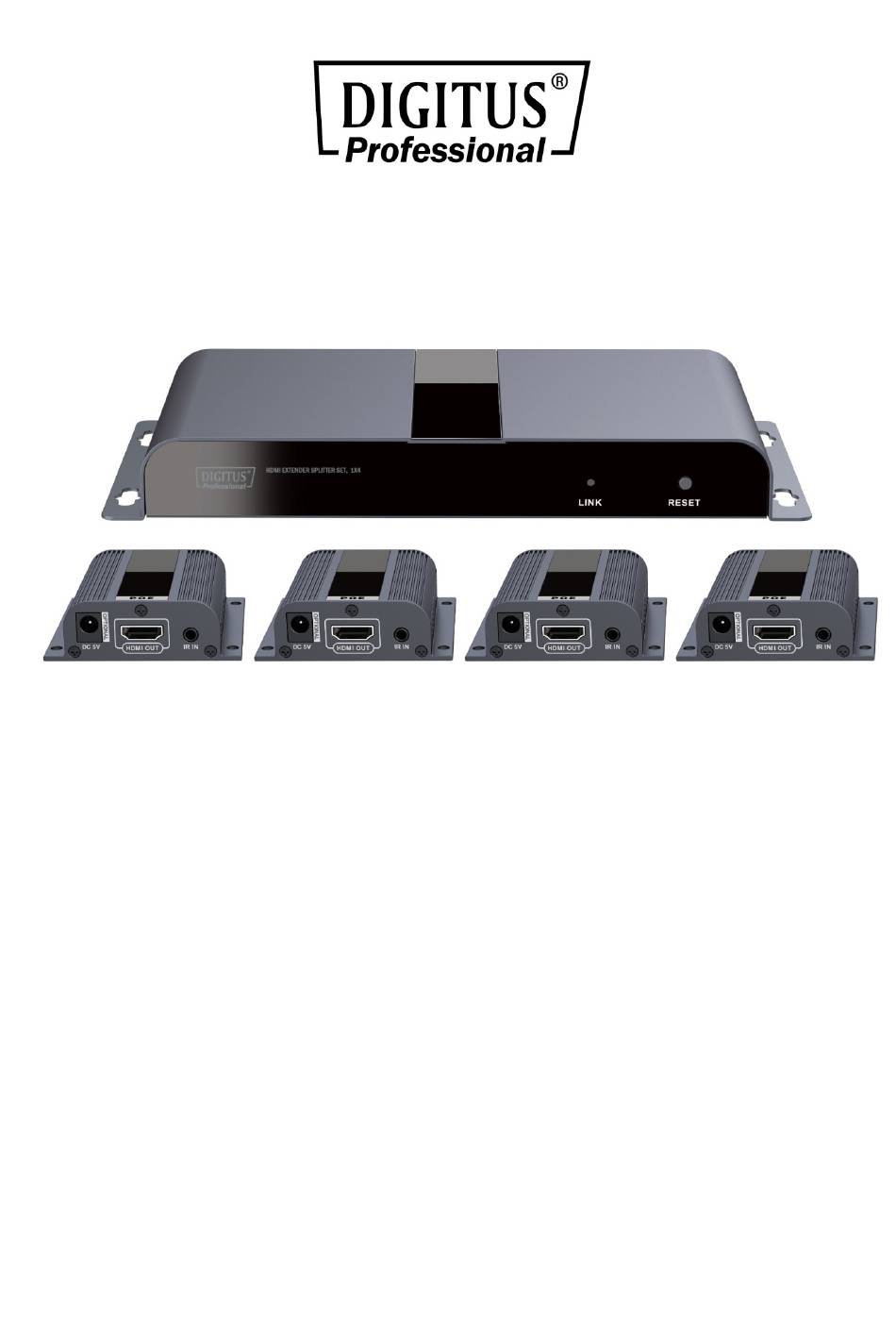

HDMI EXTENDER SPLITTER SET, 1X4
Manual
DS-55303
The Digitus HDMI Extender Splitter Set, 1x4 offers an extender and
splitter solution of up to 40 m for the highest demands. It is used to
transmit digital video and audio signals to a maximum length of up to
40 m and to distribute them to up to four monitors/screens. The highest
supported video resolution is 1080p / 60Hz. The transmitter unit
features an EDID switch, which can be used to regulate resolution and
audio format of the output signal. The transmitter also has an HDMI
Loop Out Port, which allows you to connect a local monitor. Thanks to
PoC (Power over Cable) support, it is only the transmitter unit that needs
to be powered. The package includes four infrared units (1x transmitter,
4x receivers), which can be used for the remote control of the connected
input source.
Advertisement
Table of Contents
Related Manuals for Digitus DS-55303
Summary of Contents for Digitus DS-55303
- Page 1 Manual DS-55303 The Digitus HDMI Extender Splitter Set, 1x4 offers an extender and splitter solution of up to 40 m for the highest demands. It is used to transmit digital video and audio signals to a maximum length of up to 40 m and to distribute them to up to four monitors/screens.
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Do not mix up the Transmitter and Receiver, and the IR blaster and IR receiver. 2. Do not plug-in/out the cables, when it is in using. 3. Use DC 5V power supply only. Make sure the specification matched if using 3rd party DC adapters. -
Page 3: Installation Requirements
Specification Part No. DS-55303 Technical Input HDMI×1 (Type A, 19 pin, female) Output RJ45×4 Transmission distance 40 meters via CAT6 480i@60Hz, 480p@60Hz, 576i@50Hz, Video support 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Audio format PCM DTS AC3 TMDS signal 0.5~1.5Vp-p (TMDS) DDC signal... -
Page 4: Panel Description
Panel Description 1. Transmitter unit (TX) ① Power input (DC5V) ② EDID dip switch ③ IR signal output to connect with blaster extension cable ④ HDMI input ⑤ HDMI output ⑥ RJ45 signal output ⑦ Power/signal indicator ⑧ Reset button Receiver unit (RX) -
Page 5: Installation Procedures
① LENGTH: for adjusting to the length of network cable ② RJ45 signal input ③ RJ45 indicator led it lights on all the time with HDMI signal transmission, flashes with no signal transmission ④ DC5V power input (OPTIONAL) ⑤ HDMI signal output ⑥... - Page 6 2. Connection HDMI input HDMI extender splitter power Cable HDMI Out Receiver Remarks: Please do not remote control two or RX units' IR cable at the same time, which to avoid interference. 3. Connection instruction: 1) Connect the HDMI signal source device to the Transmitter HDMI input port with HDMI cable.
- Page 7 4) Connect HDMI EXTENDER RX's HDMI output port to HDMI display's HDMI input port by HDMI cable and set the HDMI display's signal source to be HDMI port. 5) Supply the power (Power's signal light is red, when there are signal input then the power light is blue), the product will work.
- Page 8 No image or audio output on display? 1) Please check whether display on standby mode; 2) Please check whether display HDMI signal channel in accord with HDMI input port 3) Please check whether “LINK” LED on RX side keeps on, LED flash means RX does not receive signal from TX.
- Page 9 Disclaimer The product name and brand name may be registered trademark of related manufacturers.TM and ® may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products.
