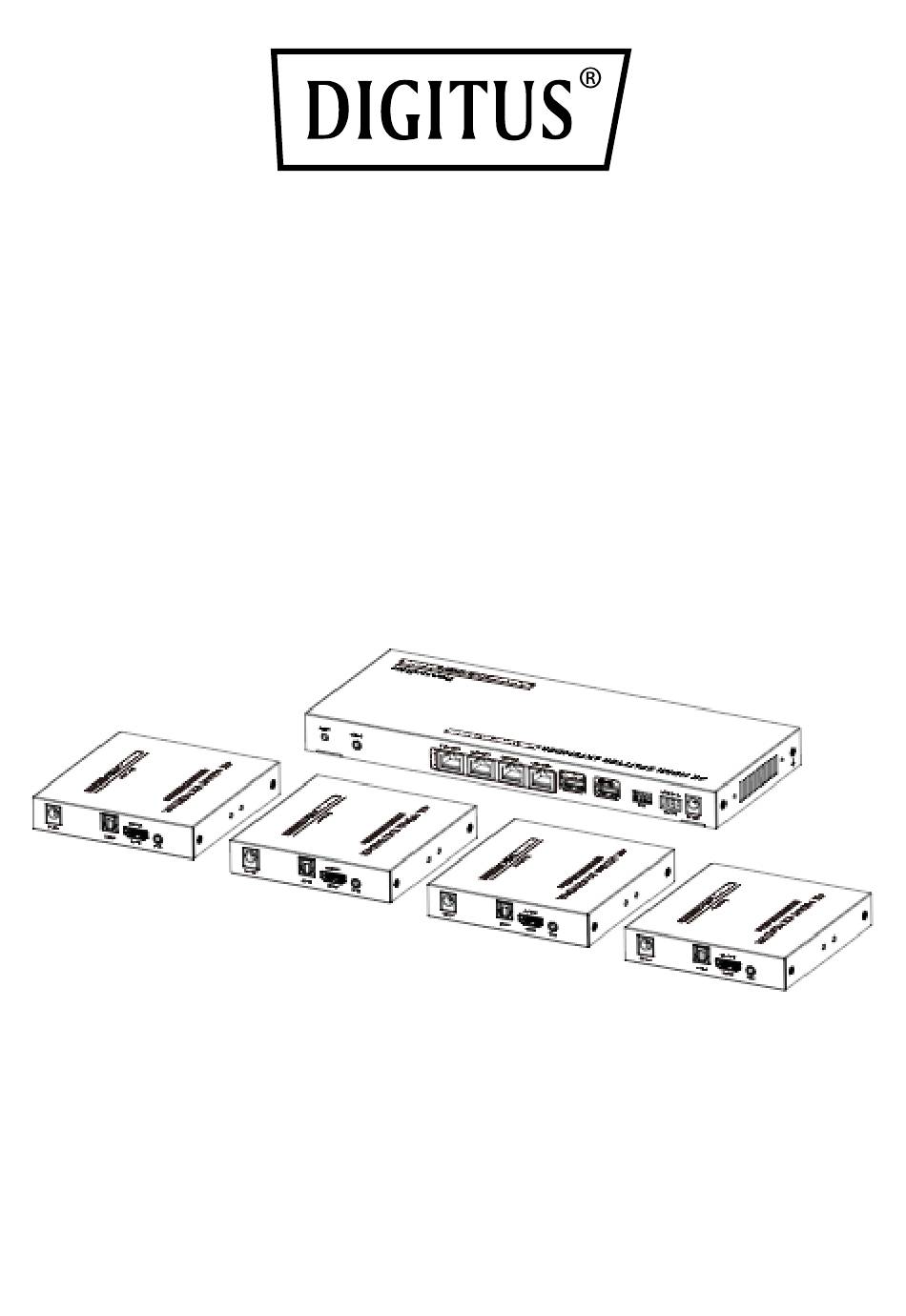

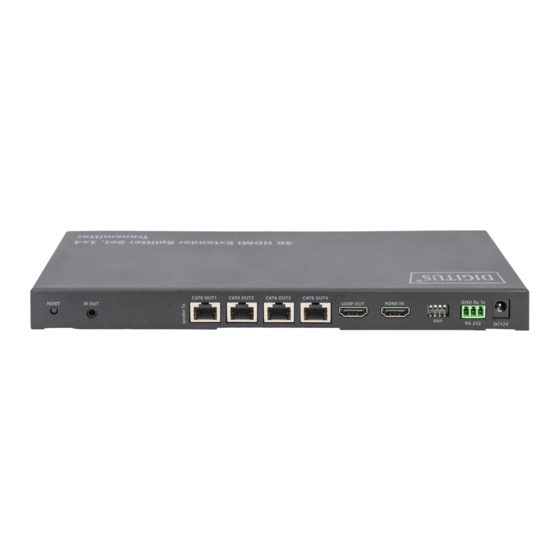

- Page 1 4K HDMI Extender Splitter Set, 1x4 Manual DS-55515...
-
Page 2: Important Safety Notice
Make sure the specification matched if using 3rd party DC adapters 1. Introduction The DIGITUS® HDMI Extender Splitter Set extends an AV signal from the source device over a distance of up to 70 m and distributes it onto 4 screens in UHD resolution (4K/60Hz). Supports CAT 6/7/8 cables. -
Page 3: Package Content
2. Features 1. Supports 4K2K/60Hz (HDR, 4:4:4) 2. R232 signal transmission 3. Video bandwidth: 18 GBPS 4. Maximum transmission distance(UHD 4K2K): 70 m 5. POC (Power over Cable) - Only the transmitter unit requires an external power adapter. 6. HDMI loop-out to the transmitter unit 7. -
Page 4: Specification
4. Specification Transmission protocol Ipcolor Distribution mode 1 IN 4 OUT Transmission distance CAT6/6A/7≤70m HDMI signal HDMI 2.0, HDCP 2.2 HDMI Resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900,1024x768, 800x600, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital Support IR pass back function (20KHz~60KHz) - Page 5 Storage temperature -30~70°C Humidity 0~90% RH (no condensation) Protection ESD protection 1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 Lightning protection Surge protection Power supply TX: DC12V/3A Power consumption TX<13W RX<4W Material Iron Color Black Weight...
-
Page 6: Installation Requirements
5. Installation Requirements 1. HDMI source device (PC, DVD, play station, etc.) 2. HDMI display device (TV, monitor, projector, etc.) 3. UTP / STP CAT6 / CAT6A / CAT7 cable. Follow standard LEEE-568B It is recommended to choose high-quality network cables 6. - Page 7 RS-232 Port Connect with the external device to control the transmitter. Power Connect with DC 12V/3A power adapter Receiver (RX) Reset button Restart the device Audio switch Choose the audio source (output from the S/PDIF port) S/PDIF: from the source device ARC: from the TV (receiver end) RJ45 signal input Connect with Cat6/6A/7 network cables...
-
Page 8: Installation Procedures
HDMI output Connect with HDMI display device IR in Connect with IR receiver extension cable 7. Installation Procedures 7.1 Network cable Follow the standard of IEEE-568B: 1-Orange/white 2-Orange 3-Green/white 4-Blue 5-Blue/white 6-Green 7-Brown/white 8-Brown 7.2 Connection... -
Page 9: Connection Instructions
7.3 Connection instructions Connect the source device to the HDMI IN port of the transmitter through an HDMI cable. Connect the CAT6 OUT ports of the transmitter to the CAT6 IN port of the receivers through the network cables. Connect the HDMI OUTPUT port of the receivers to the display ... -
Page 10: Function Setting
8. Function setting 8.1 RS232 settings The default configuration is as follows: Baud rate: 9600 Data bits: 8 Stop bits: 1 Parity: 0 Control Commands Function Descriptions ES XX On【Enter】 Turn on the network signal output port(s), choose from“01”to“04” (the network ports from left to right are: 01, 02, 03, 04);... -
Page 11: Reset【Enter
Control Command ES 02 On【Enter】 Function Description Turn on network signal output port 02 Return Values Received successfully ES 02 On OK Receive failed ES 02 On FAIL Control Command ES All Off【Enter】 Function Description Turn off all the network signal output ports Return Values Received successfully... -
Page 12: Edid Settings
8.2 EDID settings There are 16 built-in EDIDs in the product, which can be switched through the DIP switch. The upward DIP switch indicates “1”, and the downward DIP switch indicates“0”. Switch up for “1” Switch down for “0” Switch Status EDID Information 4K@60Hz 2CH 4K@60Hz 5.1CH... - Page 13 1080i@60Hz 5.1CH 1080i@60Hz 7.1CH 1080p@60Hz HDR 7.1CH Auto Auto output at a resolution compatible with all displays. Q: Why there is no image output on the display device? 1) Please check the power supply and all the cables are well-connected. 2) Please check whether there is an HDMI signal input.
- Page 14 Q: Why does the TV have a snowy/fuzzy screen? 1) Please change the HDMI cable or use a shorter HDMI cable. 2) The recommended length of the HDMI cable connected to the transmitter is ≤3 meters, and the recommended length of the HDMI cable connected to the receiver is ≤5 meters.
- Page 15 Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
