5. Installing the Converter

5.1

For as a standalone unit:

5.1.1 Verify if the AC-DC adapter conforms to
your country AC power requirement
then insert the power plug
5.1.2 Check the type of UTP (see fig.3)
UTP complies with
Standards, and has two types: T568A
T568B.
G G O B B O P P O O G B B G P P
Fig.3 The type of UTP
NOTE: G: Green；O: Orange；B: Blue；P:
Palm
Parallel cable: connect T568A to T568A , or
T568B to T568B
Crossing-over cable: connect T568A to
T568B

5.1.3 TP port list (Fig.4)

IEEE802.3

5.2 Installing

5.21 TP port installing

The parallel lines connect the RJ45 port
(have the "
The cross lines connect the RJ45 port
(have the "

5.22 Fiber port installing

Connect the fiber-optic transceiver on the
media converter with the Single-mode SC
fiber connectors.

5.23 Connect to switch power adaptor

5.24 Check the appearance that converter
instructions light
If connection right, the PWR, L/A LED is
bright; Otherwise checking the Fiber port and
TP port.
Note: Connecting to Router, Bridge or
Switch, please refer to the device's
Technical Manual.
"the marking connect)
" the marking connect)

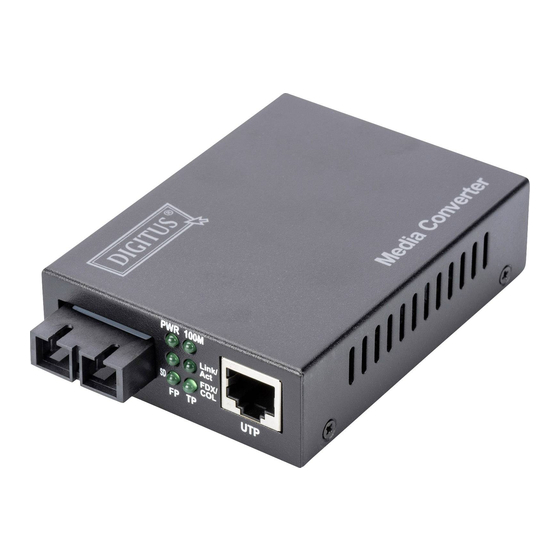

10/100Base-TX Fast Ethernet
