Pro-Form 4.0 RT User Manual page 13

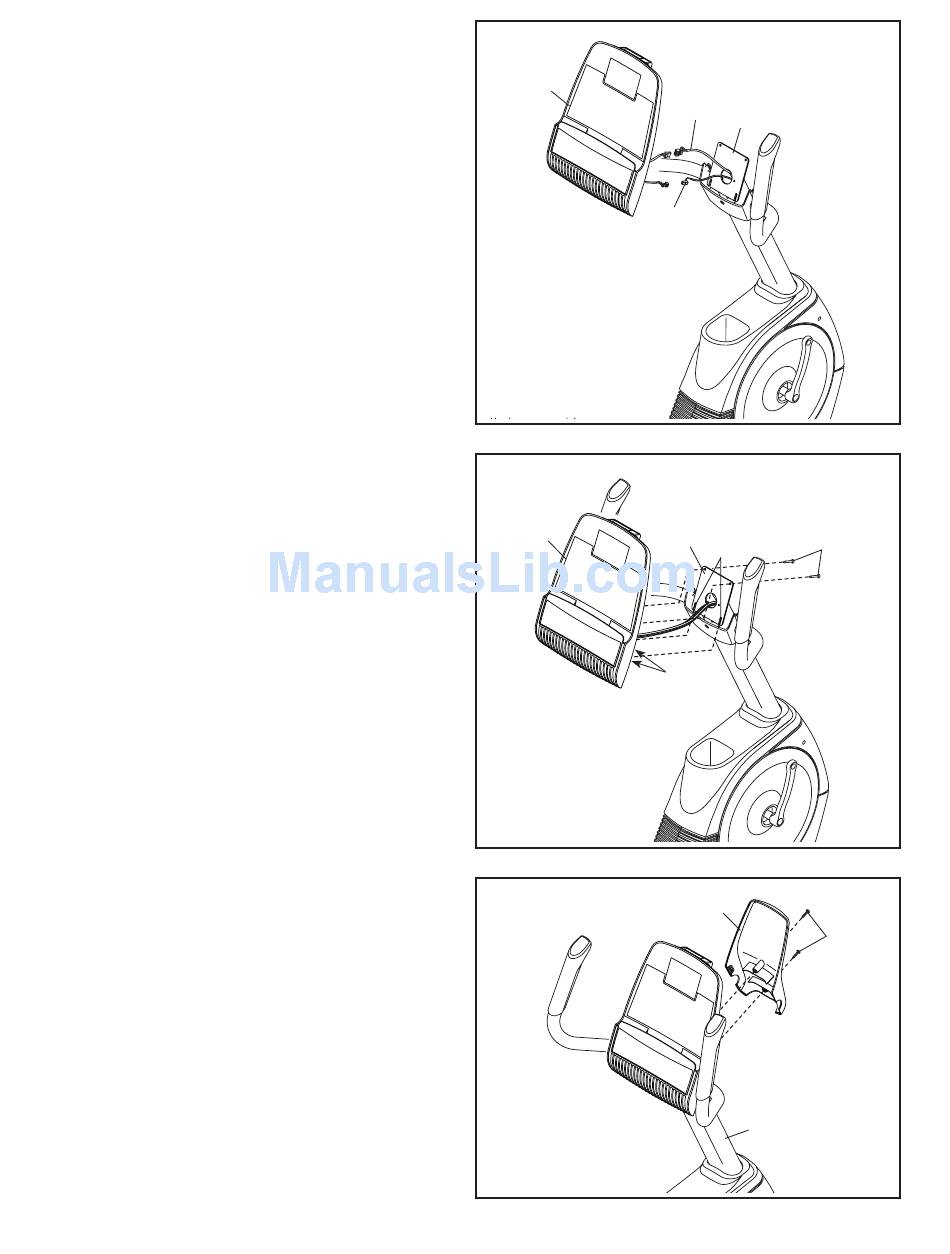

11. Untie and discard the wire ties on the Main Wire
(43) and the Frame Pulse Wire (42).
While a second person holds the Console (4)
near the Upright (2), connect the wires on the
Console to the Main Wire (43) and to the Frame
Pulse Wire (42).
Then, insert the excess wires into the Upright (2).
12. Tip: Avoid pinching the wires. Locate the two
console screws in the back of the Console (4).
Slide the console screws upward into the indi-
cated slots in the Upright (2).
Then, attach the Console (4) to the Upright (2)
with two M4 x 16mm Screws (77).
13. Identify the Front Upright Cover (58) and orient it
as shown.
Attach the Front Upright Cover (58) to the
Upright (2) with two M4 x 16mm Screws (77).
11
4
Avoid pinching
the wires
12
4
Avoid pinching
the wires
13
13
43
2
42
2
77
Slots
Screws
58
77
2
