Pro-Form 4.0 RT User Manual page 11

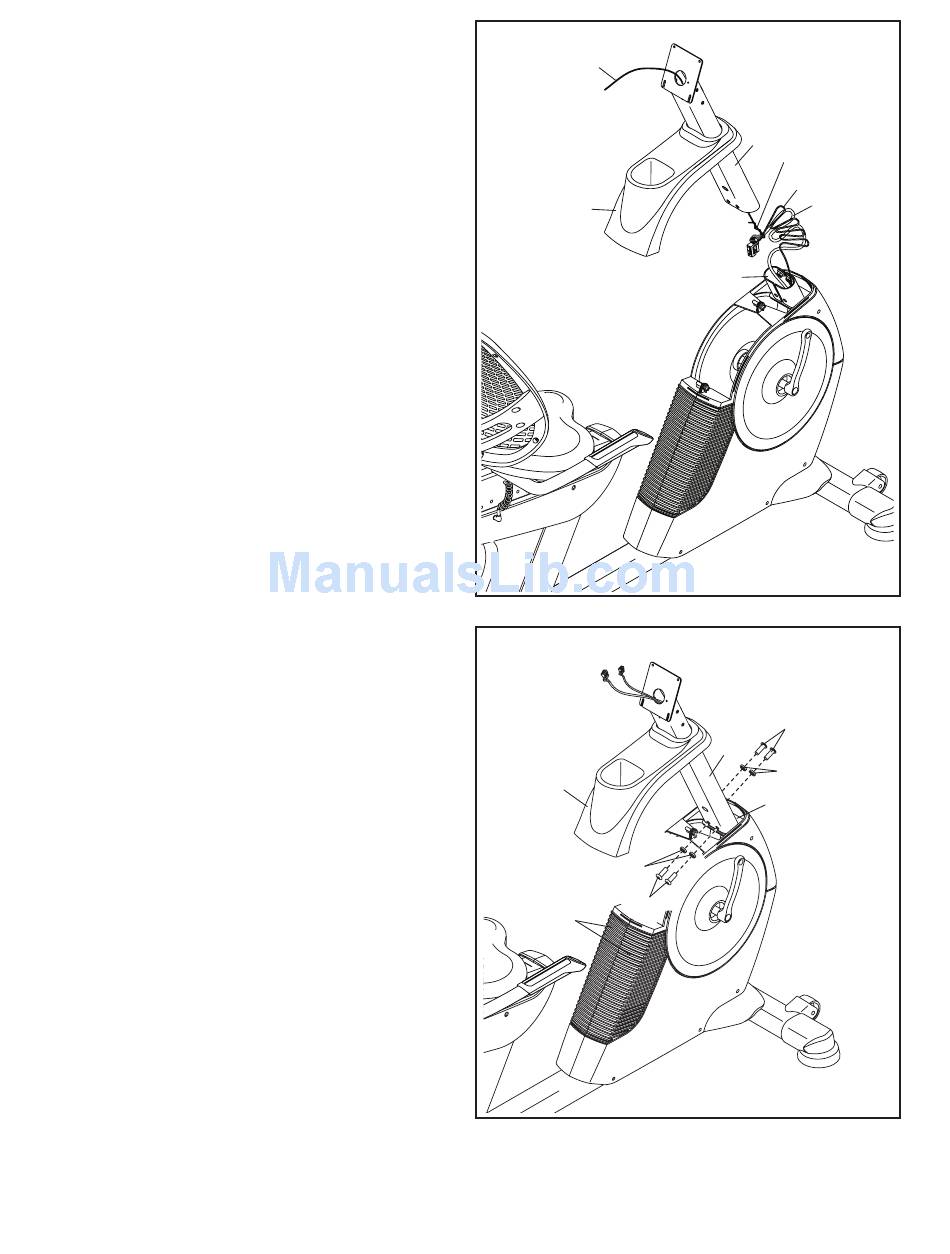

7. Orient the Upright (2) and the Top Shield (44)
as shown. Slide the Top Shield upward onto the
Upright.
Have a second person hold the Upright (2) and
the Top Shield (44) near the Frame (1) until
step 8 is completed.
Locate the wire tie in the Upright (2). Tie the
lower end of the wire tie to the Main Wire (43)
and to the Frame Pulse Wire (42). Next, pull the
upper end of the wire tie until the Main Wire and
the Frame Pulse Wire are routed through the
Upright.
Tip: To prevent the wires from falling into the
Upright (2), secure the wires with the wire tie.
8. Tip: Avoid pinching the wires. Slide the
Upright (2) onto the Frame (1).
Attach the Upright (2) with four M10 x 16mm
Screws (75) and four M10 Split Washers (36).
Tip: Tighten the two Screws in the front of
the Upright, and then tighten the other two
Screws.
Slide the Top Shield (44) downward and press it
onto the Left and Right Front Shields (13, 14).
7
Wire Tie
44
8
44
36
75
13, 14
11
Wire
2
Tie
42
43
1
Avoid pinching
the wires
75
2
36
1
