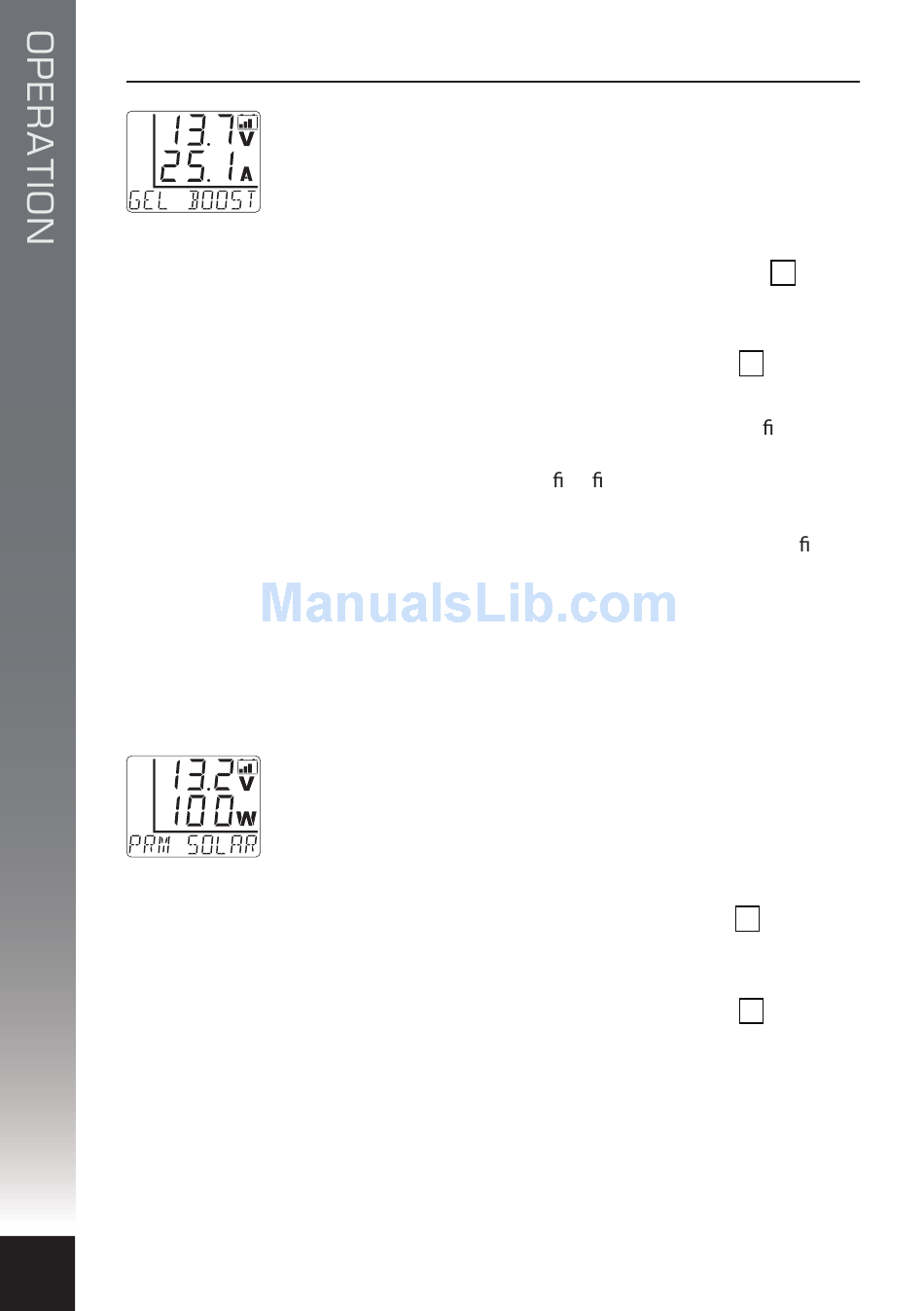

When battery to battery charging, the Remote Display will
indicate the following:
• Auxiliary Charging Voltage. This will always be displayed as
the upper character set.
• Auxiliary Charging Current. This is displayed by default as
the lower character set but can be toggled using the
button to display the Main Battery Voltage.
• Main Battery Voltage. This is displayed alternately as the
lower character set and can be toggled using the
display the Auxiliary Charging Current.
• Selected Battery Type. This is displayed using the rst three
letters of the multi-function character set and indicated as
SLA, AGM, GELor LCA. The rst ve letters are also used to
display Constant Float operation as FLOAT.
• Charging Cycle Status. This is displayed using the last ve
letters of the multi-function character set and indicated as
BOOST, ABSPN or FLOAT.
In the above condition the Charging Device LED Glow Ring
will illuminate blue continuously for BOOST, blue/green
alternately for ABSORPTION and green continuously for FLOAT.
When solar to battery charging, the Remote Display will
indicate the following:
• Auxiliary Charging Voltage. This will always be displayed as
the upper character set.
• Auxiliary Charging Power. This is displayed by default as the
lower character set but can be toggled using the
display the Main Battery Voltage.
• Main Battery Voltage. This is displayed alternately as the
lower character set and can be toggled using the
display the Auxiliary Charging Power.
• Solar Charging Method. This is displayed as SLT SOLAR
or PRM SOLAR on the multi-function character set.
In the above condition the Charging Device LED Glow Ring
will illuminate aqua green continuously for PRM SOLAR and
aqua green intermittently for SLT SOLAR.
OK
button to
OK
button to
OK
button to
OK
