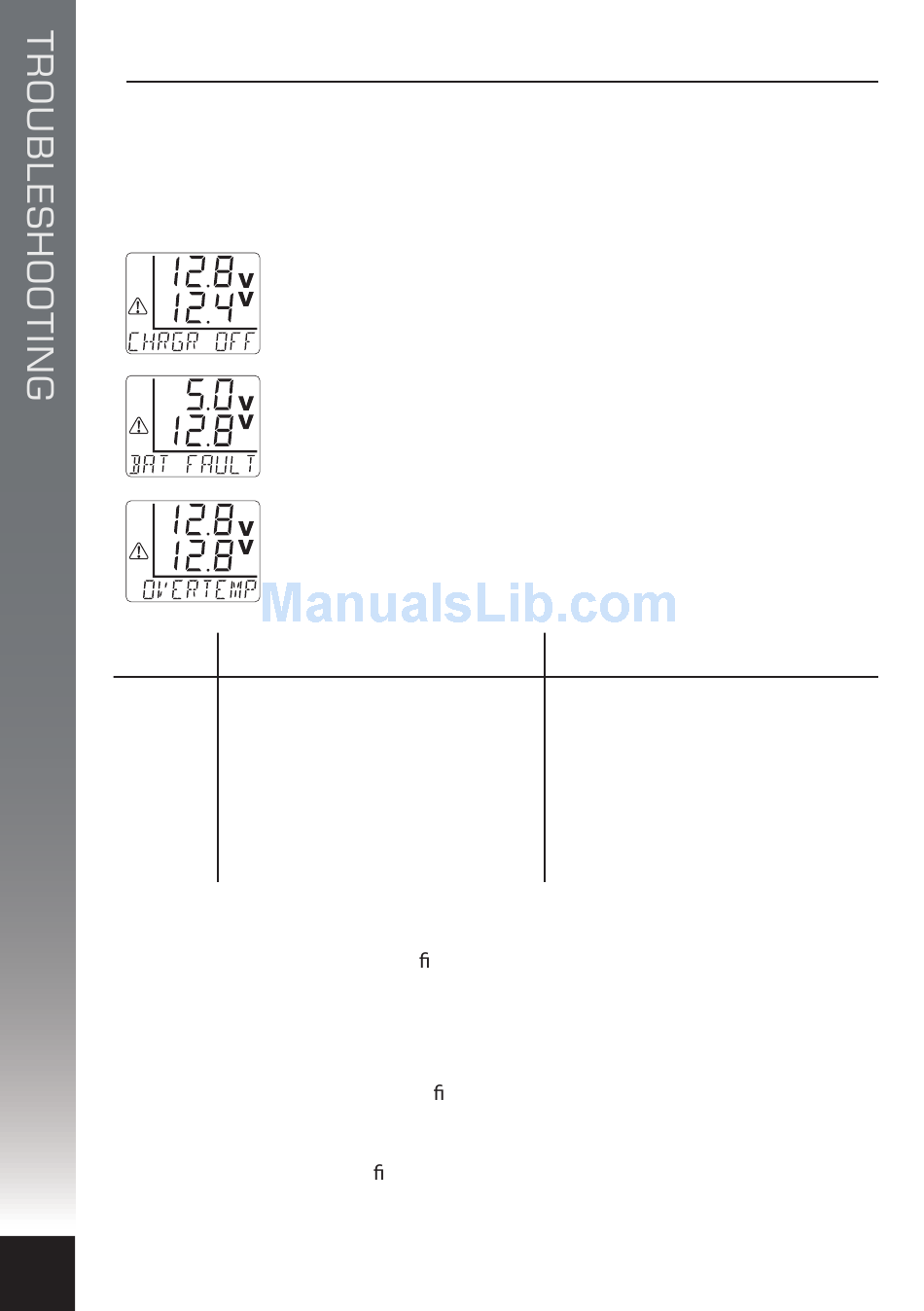

Alert Conditions

There are certain conditions that may arise in operation that could result in an
alert condition. In an alert condition the output of the Charging Device will be
automatically disabled and the alert symbol will be displayed. A message
indicating the cause of the condition will be displayed on the multi-function
character set.
Condition
Alert
1
Alert²
Alert
3
In the unlikely event that the LED Glow Ring on the Charging Device is not
indicating please check and con rm the following before contacting support:
1. Check integrity of all connections between the main battery and the Charging
Device.
2. Check the inline fuse between the main battery and the Charging Device.
3. If a multi-meter is available con rm the main battery voltage reads the same
at the battery terminals as well as the Charging Device terminals.
If the above checks are con rmed as OK please contact your vendor for further
assistance.
32
If the main battery voltage is dropping but has yet to reach the
lower cut-out limit, the Remote Display will indicate CHRGR
OFF. Please see Alert¹ condition in the table below for further
information.
In the event the auxiliary battery is completely drained, open
circuited or there is a connectivity issue the Remote Display will
indicate BAT FAULT. Please see Alert² condition in the table
below for further information.
In a situation where the Charging Device is subjected to
extreme temperatures for a prolonged period, thermal
protection will be activated. Please see Alert³ condition in the
table below for further information.
Possible Explanation
Main battery Voltage is too low to
continue charging (<12.4V).
Auxiliary battery Voltage is too low,
battery has expired or is disconnected.
Charging device has over heated.
Likely Solution
Start engine to charge battery if possible.
Manually charge with separate charger.
If less than 5V charger will not initialise.
Check and address connection integrity.
Replace auxiliary battery.
Relocate device to cooler location.
Wait for ambient temperature to drop.
