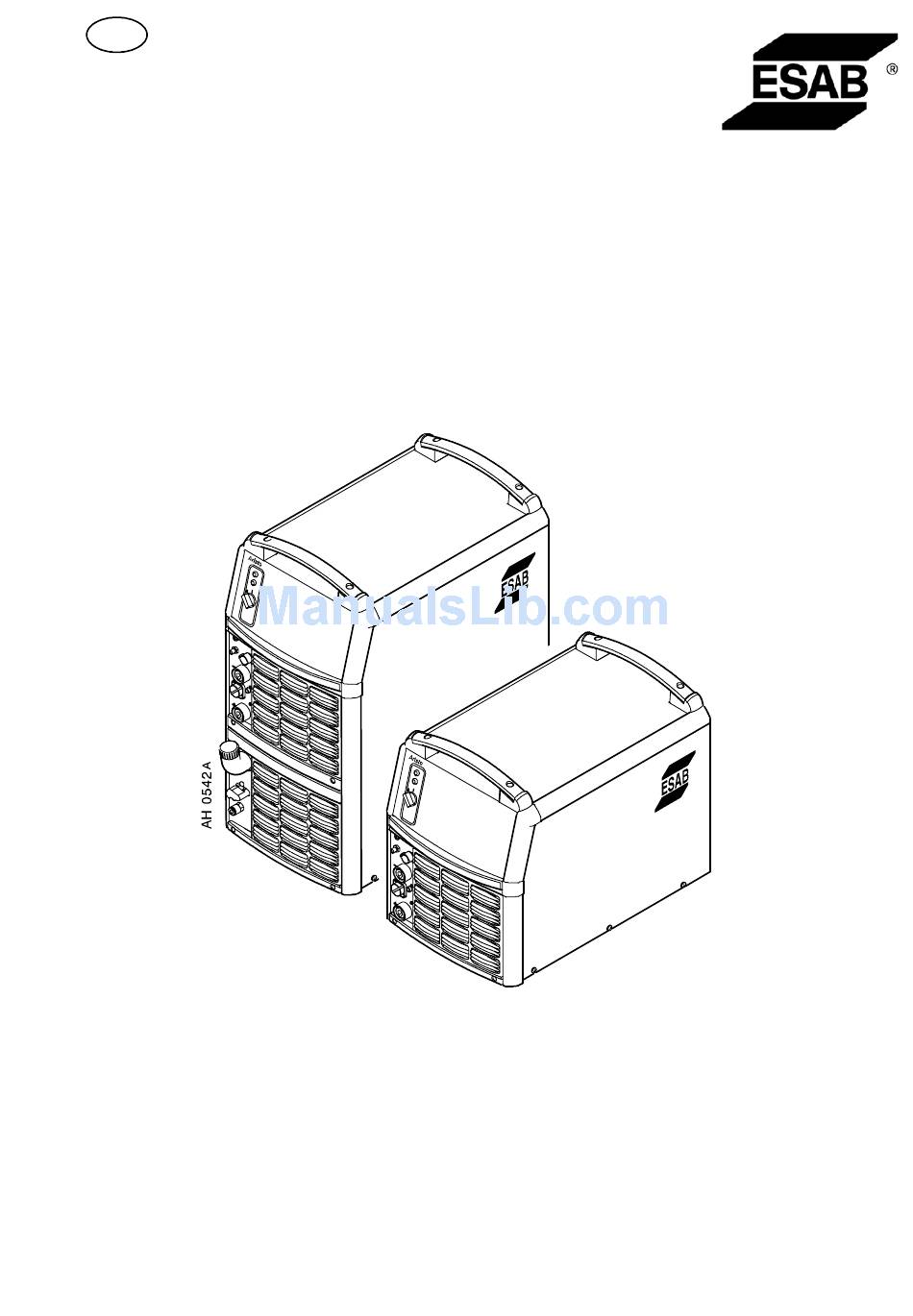

- Page 1 AristoMig U500 400 V version Instruction manual 0459 291 001 GB 050517 Valid for serial no. 304- -xxx- -xxxx, 445- -xxx- -xxxx, 524- -xxx- -xxxx...
-
Page 2: Table Of Contents
1 DIRECTIVE ............2 SAFETY . -
Page 3: Directive
ESAB Welding Equipment AB, S--695 81 Laxå, Sweden, gives its unreserved guarantee that welding power source AristoMig U500 from serial number 304 complies with standard IEC/EN 60974--1, in accordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC) and with standard EN 50199 in accordance with the requirements of directive (89/336/EEC) and addendum (93/68/EEC). -
Page 4: Introduction

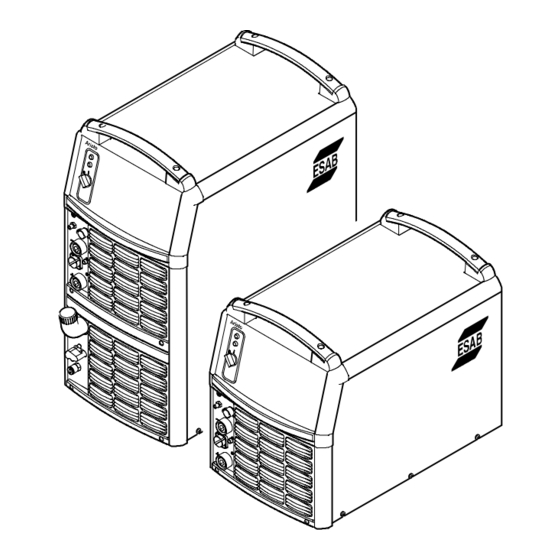

Do not use the power source for thawing frozen pipes. This product is solely intended for arc welding. INTRODUCTION The AristoMig U500 is a MIG/MAG / TIG welding power source, which can also be used for MMA welding. There are two variants of the power source:... -
Page 5: Equipment
All the settings are made from the wire feed unit or control box AristoPendant U8. ESAB’s accessories for the product can be found on page 17. Equipment The AristoMig U500 power source is supplied complete with terminating resistor, 5m return cable and instruction manual. TECHNICAL DATA... -
Page 6: Installation
Cooling unit Cooling power 2500 W at 40˚C temp. difference and flow1.5 l/min Coolant 50 % water / 50% glycol Coolant quantity 5.5 l Maximum water flow 2.0 l/min Maximum number of water--cooled welding two MIG welding guns or guns/torches that may be connected one TIG torch and one MIG welding gun Duty cycle The duty cycle refers to the time as a percentage of a ten--minute period that you can weld at a cer-... -
Page 7: Placing
A protective earth connection must be made, in accordance with regulations. Rating plate with supply connection data Recommended fuse sizes and minimum cable areas AristoMig U500 400 V 3µ 50 Hz Mains voltage 400 V Mains cable area, mm... -
Page 8: Operation
Connection for gas to the TIG torch Connection for cooling water from the wire feed unit -- RED Main power supply switch, 0 / 1 / START * ELP = ESAB Logic Pump, see point 6.5 - - 8 - - bu15d1ea... -
Page 9: Turning On The Power Source
Cooling unit Water connection (TIG welding) The cooling unit is equipped with a detection system ELP (ESAB Logic Pump) which checks that the water hoses are connected. The power source On/Off switch must be in the “0” position (Off) when connecting a water--cooled TIG torch. -
Page 10: Remote Control Unit
Remote control unit The program version in AristoPendant U8 should be 1.20 or higher. Aristo machines with intergral control panels should have program version 1.21 or higher, in order for the remote control to function correctly. When the remote control unit is connected, the power source and wire feed unit are in remote control mode;... -
Page 11: Topping Up The Coolant
Repair and electrical work should be performed by an authorized ESAB serviceman. Use only ESAB original spare and wear parts. Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - - 11 - -... -
Page 12: Diagram
Diagram - - 12 - - bu15e11a... - Page 13 - - 13 - - bu15e11a...
- Page 14 Cooling unit - - 14 - - bu15e11a...
-
Page 15: Ordering Number
0459 291 990 Spare part list AristoMig U500 The spare parts list is available on the Internet at www.esab.com Under ”Products” and ”Welding & cutting equipment”, you will find a link to the page where you can both search for and download instruction manuals and spare parts lists. -
Page 16: Spare Parts List
AristoMig U500 Spare parts list Item Ordering no. Denomination 0458 398 001 Filter 0458 383 001 Front grill - - 16 - - Edition 050517 ba37s... -
Page 17: Accessories
AristoMig U500 Accessories Trolley for AristoMig ..... . 0458 530 880 Trolley 2 for AristoMig (for feeder with counterbalance device and/or 2 gas bottles) . 0458 603 880 Guide pin . - Page 18 AristoMig U500 Feeder stand ......0458 522 880 Remote control adapter RA12 12 pole ..
- Page 19 AristoMig U500 Remote control cable 12 pole - - 4 pole 5 m ........
- Page 20 ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific Representative offices AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03...
