Summary of Contents for Kapture KPT-722

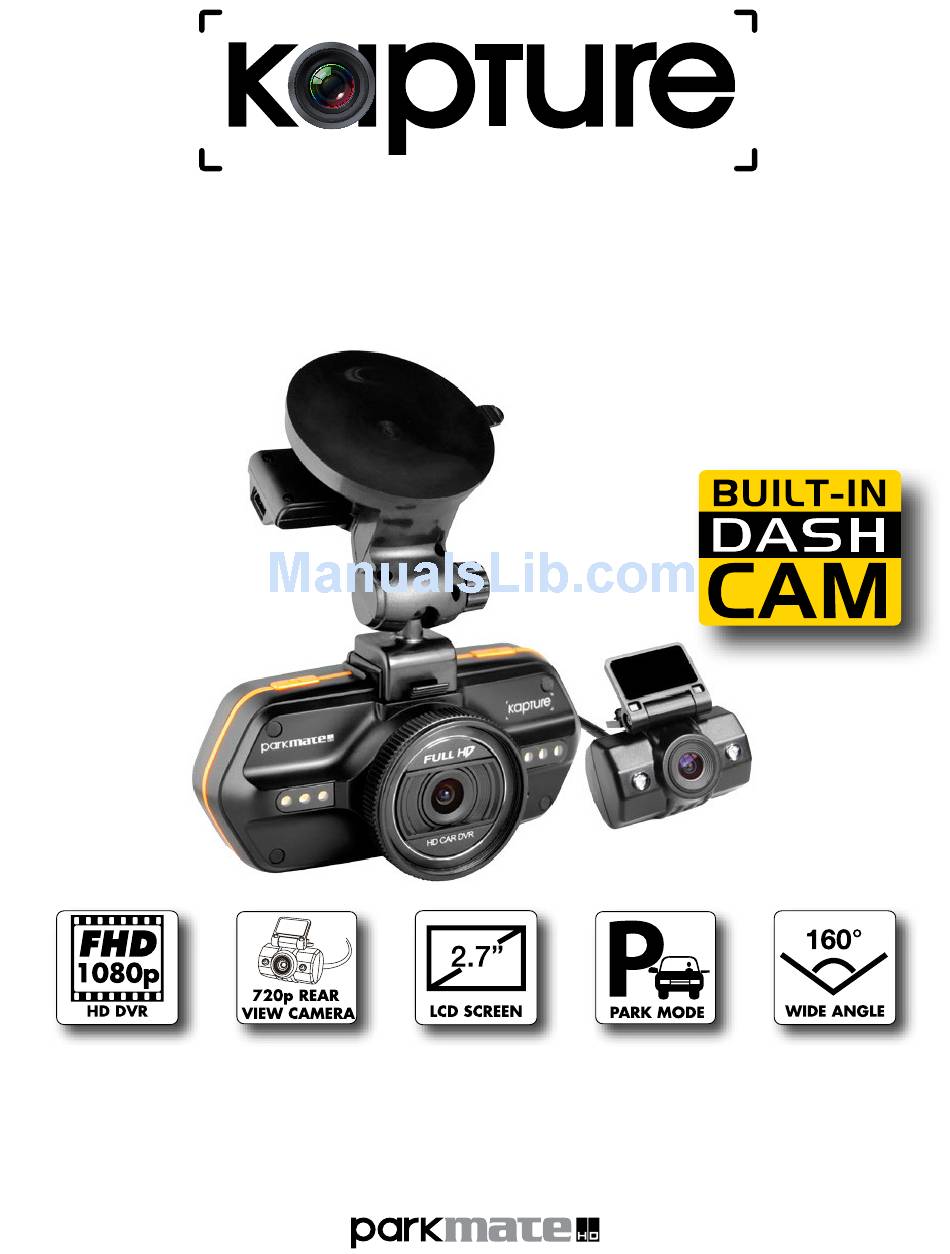

- Page 1 2” Full HD Dash Cam Car DVR with HD Rear View Camera USER MANUAL KPT-722...
- Page 3 • Only use the included cables to power and charge the KPT-722. • Please do not attempt to adjust the KPT-722 position or settings whilst you are operating your vehicle. • Ensure you are using your KPT-722 within your countries’...
- Page 4 2. Product Details 1. Wide angle Lens 12. HDMI Mini Port (Adapter required for HDMI not 2. LED Lamps included) 3. Mounting Socket 13. Mini USB Port (This port will 4. MENU Button not support the Rear View Camera) 14. RESET Button 5.
- Page 5 The Auto On/Off feature will power the KPT-722 up and begin recording as soon as it receives power from the USB Mini connection (eg. when you start your car) 4. Installation a. Clean the interior of your front and rear windscreens ensuring that the desired point of installation for both cameras is free of dust and is not obstructing the drivers’...
- Page 6 OK button. d. The KPT-722 is optimised for Micro SD Cards class 4 and above with a capacity up to 32GB. e. The on board ‘G- Sensor’ registers any activity that could be an accident and saves the footage as a ‘Locked’...
- Page 7 6. Computer Connection: Videos and Photos can be retrieved from the KPT-722 by either connecting the camera directly to your computer using a Mini USB Cable or by connecting the Micro SD Card using a Micro SD Card adapter (not included).
- Page 8 In either mode accessing the menu, then pressing the MENU button a second time will display the SETUP menu which contains all of the general settings for the KPT-722. 8. Set Time & Date It’s important to have your time and date set correctly as it will record directly onto your video stream and is critical information to prove your case to insurance companies etc.
- Page 9 VIDEO menu. 10. Set Loop Recording Your KPT-722 has the ability to record in a Loop mode, which means older blocks of video files will be overwritten once the memory card becomes full. You can set the amount of video block time the KPT-722 will record for before a new video file is started.
- Page 10 (The OFF setting will record the longest possible loops that your Micro SD card will allow. This is around 30 minutes at 1080P resolution). f. To confirm selection push the OK button, the KPT-722 will take you back to the VIDEO menu. 11. Set G-Sensor...
- Page 11 If activity is detected, the KPT-722 will record 60 seconds of footage. To set park mode on your KPT-722 follow the directions below: a. Use the MODE button to make sure you are in VIDEO mode (Video camera icon will be displayed in the top left corner of the screen).
- Page 12 Low will require a larger amounts of activity to trigger recording). f. To confirm selection push the OK button, the KPT-722 will take you back to the VIDEO menu. 14. Video: This is the default start up screen (on right) and is how all recording is triggered.
- Page 13 Turn On/Off the Rear View Dual Record Off / On Camera Loop Recording’ defines the length of time the KPT-722 records before creating a new file. Using the Off setting will Loop recording Off / 3 Mins / 5 Mins...
- Page 14 Auto / Daylight / Cloudy of 4 preset lighting settings to White Balance Tungsten / Fluorescent easily allow you to optimise your KPT-722 for your lighting. WDR extends the dynamic Off / On range of captured footage. Motion When activated, the Motion...
- Page 15 Images Off / On 180° (This only rotates image, Rotation does not rotate the KPT-722’s controls). 15. Playback In this screen the UP and DOWN buttons are used to navigate your videos and photos, and the OK button is used to select Videos and photos.
- Page 16 Playback Mode (File Selected) 1. Locked File 4. Video duration 2. File Name 5. Power 3. File Resolution Playback Menu Menu Select Settings Remark Allows you to delete either the selected or all photos and video Delete Delete Current / Delete All stored on the inserted Micro SD Card.
- Page 17 Sets the amount of time of Off / 1 Mins / 3 Mins / Auto Power Off inactivity before the KPT-722 5 Mins powers down. Mute control for key beeps. Beep Sound Off / On...
-
Page 18: Product Specification
17. Product Specification Screen 2.7" Lens 160° Imaging Sensor 3.0MP Camera Rotation 180° Minimum Light 1 Lux Video Resolution (Front Camera) FHD 1080P Video Resolution (Rear Camera) HD 720P Video Format .MOV Frames Image Resolution 12M / 8M / 5M / 3M / 2MHD Photo Format .JPG Motion Detection... - Page 19 Warranty Terms & Conditions Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- Page 20 www.kapturecam.com.au www.kapturecam.co.nz...
