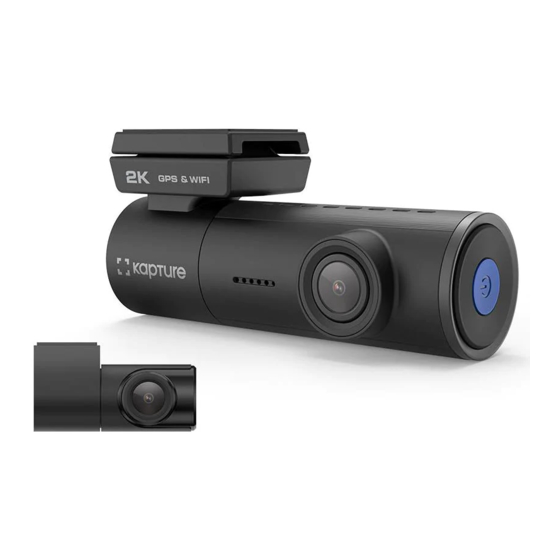

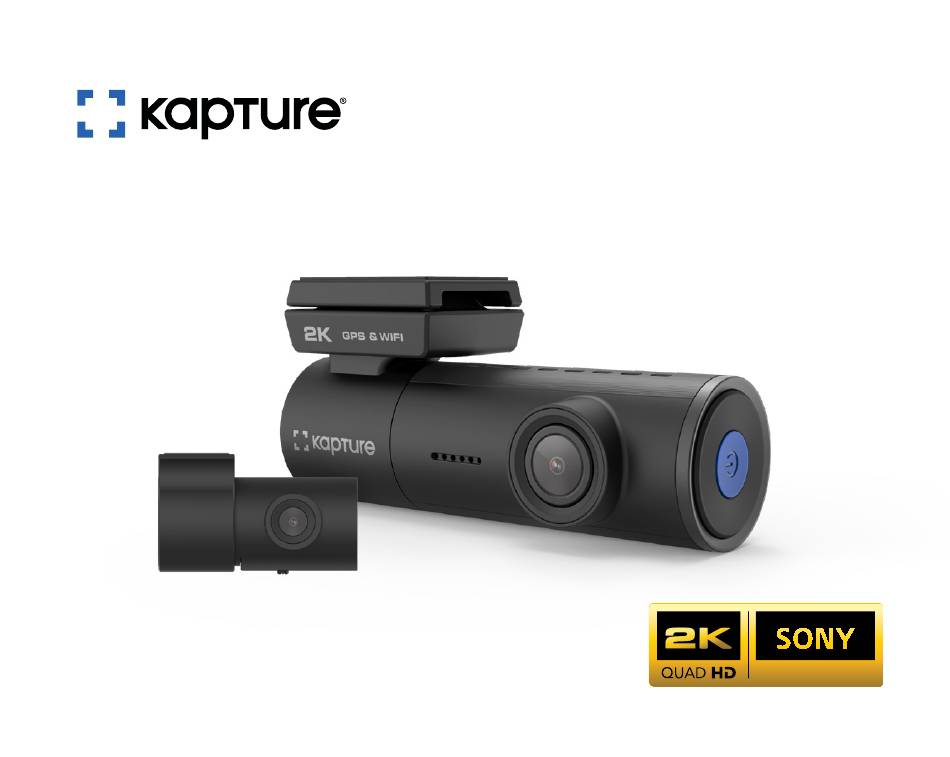

- Page 1 2K QHD Dual Channel Dash Camera With GPS Logger, WiFi and FHD Rear Camera KPT-2200 USER MANUAL 5MP SENSOR...
-
Page 3: Table Of Contents
WILL UPDATE TO SAME ICONS AS ON PACKAGING WHEN AVAILABLE FOR CONSISTENCY ................6 PACKAGE CONTENTS ......................6 PRODUCT OVERVIEW ......................7 INSTALLATION INSTRUCTIONS ..................8 KPT-2200 installation ....................... 8 Rear Camera installation ....................9 SOUND ALERTS ........................11 Real-Time Audio Road Safety Alerts* ................11 8.1.1 Speed Camera Alert .................. - Page 4 8.1.4 Railway Crossing Alert ..................12 QUICK KEY FUNCTIONS .....................12 LED Indicator ........................13 10.0 DOWNLOADING AND INSTALLING THE KPT-LINK APP ..........13 11.0 KPT-LINK APP OPERATION ....................16 11.1 App Video Playback ......................16 11.2 Downloading videos from the App ................17 11.3 Sharing videos on Social Media..................
-
Page 5: Caution
INTRODUCTION Thank you for purchasing a Kapture Dash Camera. We have designed this product so you can have a better driving experience with enhanced safety features. Our products, like most after-market safety enhanced devices, are designed to assist and aid the driver, not to replace the manual function of the person operating the vehicle. -
Page 6: Charging Warning
CHARGING WARNING • Always charge the Dash Camera using the provided charger. Improper charging of the Dash Camera may result in failure. • Do not dispose of the Dash Camera in a fire. • Please dispose of the Dash Camera within the limits of your local regulations. MICRO SD CARD WARNING This Dash Camera can only be used with Micro SD Cards, Class 10 or above with 32GB - 128 GB storage capacity, (not included). -
Page 7: Introduction
Alternatively, once the Micro SD Card is inserted into the Dash Camera and connected to power, please press the blue power Button on the Dash Camera 3 times rapidly. This will format the Micro SD Card. NOTES ON INSTALLATION 1. It is advised that the Dash Camera is installed near the rearview mirror, at the top centre of the windshield for optimal operation. -
Page 8: When Available For Consistency
PACKAGE CONTENTS KPT-2200 Electrostatic 3M Adhesive Dash Camera x1 Film x2 Mount x1 12/24V Power Spare 3M User Guide x1 Adaptor x1 Adhesive x1 Rear Camera with 8m Cable x1... -
Page 9: Product Overview
PRODUCT OVERVIEW FRONT CAMERA Mini USB Connector (for power) Reset Button Micro USB Connector (Connect to rear camera) Micro SD Card Slot Adhesive Sticker Speaker Hole Camera Lens 8. Recording Indicator LED Power Button/WiFi ON and OFF/Lock file 10. Microphone REAR CAMERA Micro USB Connector (Connect to Front... -
Page 10: Installation Instructions
Remove the protective film from the KPT-2200 and position the DVR in the middle of the electrostatic film (optional). Press down on the base of the bracket... -
Page 11: Rear Camera Installation
4. See image below for cable management. NOTE: • The electrostatic film helps for easy removal of your Dash Camera from the windshield. Included in package contents. REAR CAMERA INSTALLATION OPTIONAL: Select the electrostatic film from the box and install it on the rear windshield in the recommended position as shown below. - Page 12 Method 1: Thread the rear camera cable along the top of the roof lining and connect it to the KPT-2200 Dash Camera. Method 2: Lift up the car carpet and run the rear camera cable along the underlay of the carpet and connect it to the KPT-2200 Dash Camera.
-
Page 13: Sound Alerts
SOUND ALERTS The KPT-2200 will provide you with sound alerts to keep you updated with the status of your Dash Camera. Audio notifications will come through the in-built speaker of the Dash Camera as per below: • Recording Started/Stopped • SD Card is being Formatted •... -
Page 14: School Zone Alert
* Formatting the Micro SD Card will delete all information on the inserted Micro SD Card and prepare the Card to be used with the KPT-2200. ^ Restoring to default Settings will also change the WiFi password to default 12345678. -
Page 15: Led Indicator
Samsung Galaxy: S3 and later using Android 4.2.2 and above. For you to correctly connect your smart device to your KPT-2200 you will need to have the KPT-LINK App from the Apple App Store or Google Play Store installed on your smartphone. - Page 16 Once the App is downloaded and installed on your smartphone and the Dash Camera is powered up, open your smartphone's WiFi Settings and connect to the wireless connection named KPT2200. 4. When prompted enter the password 12345678 WiFi Name: KPT-2200 _XXXX (XXXX is unique number to each Dash Camera) Password: 12345678...
- Page 17 Once the connection has been made, open the KPT-LINK App. You will now be able to access the live recording screen for the front and rear cameras, stored videos, and your Dash Camera Settings. Scan the QR code for a direct link to download the KPT- LINK App.
-
Page 18: Kpt-Link App Operation
11.0 KPT-LINK APP OPERATION To use the KPT-LINK App, your smart device will need to be connected to the Dash Camera WiFi connection. For instructions on connecting your Dash Camera to your smartphone's WiFi, please follow the steps on the previous page. 11.1 APP VIDEO PLAYBACK For Video Playback via the App, please follow the instructions below. -
Page 19: Downloading Videos From The App
11.2 DOWNLOADING VIDEOS FROM THE APP To download your Dash Camera videos, please follow the instructions below. Open the KPT-LINK App. Press the Album Button. Select the video/videos and press the 'Download' Button. 4. The download will start and will save to your smartphone which can also be accessed through the KPT-LINK App in the folder name 'Local'. -
Page 20: Kpt-Link App Settings
11.4 KPT-LINK APP SETTINGS MENU SETTING DESCRIPTION Microphone ON, OFF Turns microphone ON/OFF Speed Alerts ON, OFF Turns speed camera alerts ON/OFF Loop 1 & 3 Minutes Loop recording allows you to set the duration that Recording the camera will record before creating a new clip Volume Off, Low, Mid, Controls the sound level of the inbuilt speaker... - Page 21 KPT-LINK APP SETTINGS CONT' MENU SETTING DESCRIPTION Format SD Formats the Deletes all recorded data from the Micro SD Card Card Micro SD Card. WiFi Settings Change the Dash Camera’s WiFi name and password from default Factory Restore factory Settings Settings Help About DVR...
-
Page 22: Warranty Terms & Conditions
12.0 WARRANTY TERMS & CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - Page 23 WARRANTY AND WARRANTY DISCLAIMER Kapture has a limited warranty, whereby Kapture warrants to you and only to you that this Kapture product will be free from defects in materials and workmanship for one (1) year from the date of your purchase (unless a longer warranty period is required by law).
- Page 24 Kapture arising as a result of the payment of any claim for loss, damage or injury. Kapture equipment and services do not cause and cannot eliminate occurrences of certain...
- Page 25 Kapture. Any liability for negligence is limited to direct losses usually and typically foreseeable in such case. Should the claim for damages...
-
Page 26: Notes
13.0 NOTES... - Page 28 V1.0 Y O U R E Y E W I T N E S S O N T H E R O A D ™ All Images, Information and Content are Copyright © 2022 www.directed.com.au Directed Electronics Australia Pty Ltd. All Rights Reserved. www.directed.co.nz www.kapturecam.com.au www.kapturecam.co.nz...
