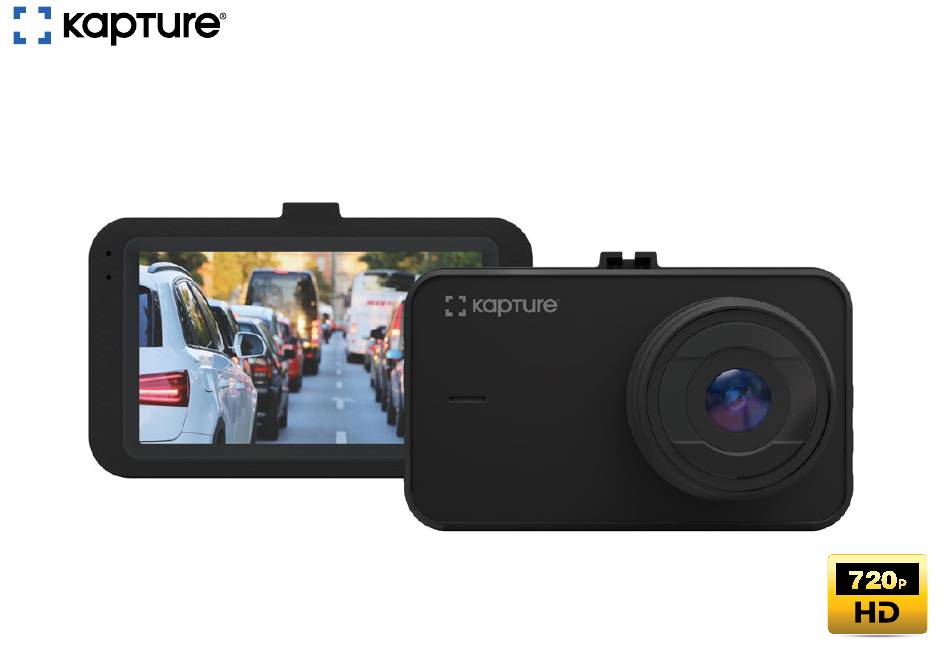

HD Dash Camera with
3.0" IPS Screen + 24 Hr Parkmode

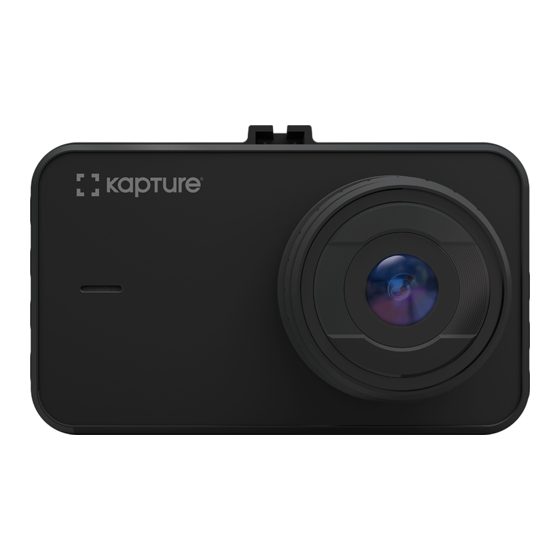

KPT-510
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Kapture KPT-510

Summary of Contents for Kapture KPT-510

  • Page 1 HD Dash Camera with 3.0” IPS Screen + 24 Hr Parkmode KPT-510 USER MANUAL...

  • Page 3: Table Of Contents

    Package Contents ......................8 Product Overview ......................9 BUTTON FUNCTIONS ......................10 GETTING STARTED ......................11 Inserting a Micro SD Card ...................11 Removing a Micro SD Card ..................12 Installing the KPT-510 ....................13 Connecting to Power ....................13 LED Indicator ........................ 15...
  • Page 4 POWERING THE KPT-510 ON/OFF ................15 Auto Power On/Off ..................... 15 Manual Power On ......................15 Manual Power Off ....................... 16 Reset the Car DVR ....................... 16 INITIAL SETTINGS ......................16 Formatting the Inserted Micro SD Card ..............16 SETTING THE TIME AND DATE ..................17 VIDEO MODE ........................
  • Page 5 12.0 PICTURE MODE ....................... 28 13.0 PLAYBACK ........................29 13.1 Removing the Existing 3M Mount from my Windscreen ........30 14.0 WARRANTY TERMS & CONDITIONS ................30 15.0 INDEMNITY ........................32 16.0 WARRANTY AND WARRANTY DISCLAIMER ...............32 17.0 LIMITATIONS OF KAPTURE LIABILITY .................36...

  • Page 6: Caution

    CAUTION • Ensure you are using your Car Dash Cam within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Avoid leaving your Dash Cam in direct sunlight for extended periods of time in an unventilated space.

  • Page 7: Battery Warning

    BATTERY WARNING • Always charge the Car Dash Cam using the provided charger. Improper charging of the Car Dash Cam may result in failure of the internal battery. • Never dismantle the Car Dash Cam or expose the internal battery. •...

  • Page 8: Product Information

    • Only use the included cable to power the Car Dash Cam. • The KPT-510 is designed to be constantly connected to the included power supply, and is NOT designed to be used solely with the camera’s built in battery.

  • Page 9: Introduction

    Thank you for purchasing a Kapture Dash Cam. Please read through instructions before attempting to install or use this product. This User guide is designed to assist with the day to day operation of the KPT-510. Before attempting to use or install your Kapture KPT-510, please ensure you have read and understood all of the safety notes below.

  • Page 10: Package Contents

    • Ensure you are using your KPT-510 within your countries’ road laws. Please make sure you are familiar with your local road legislation before use.

  • Page 11: Product Overview

    PRODUCT OVERVIEW Rec / OK Button Slot for fixing mount 2. Mode Button 10. Micro SD card slot* 3. Lock Recording Button 11. Up Button 4. ON / OFF Power Button 12. Menu Button 5. Reset 13. Down Button 6. Microphone 14.

  • Page 12: Button Functions

    BUTTON FUNCTIONS ] MODE BUTTON When Device is not recording, press the mode button to switch between Video Mode / Photo Mode / Play Back mode. ] OK BUTTON Press the OK Button to start/stop video recording in Video mode. Press the OK Button to take photo in Camera mode.

  • Page 13: Getting Started

    With the Car DVR turned off and the screen facing towards you insert your Micro SD Card (not included) in the slot on the right side of the KPT-510 with the text on the Micro SD card away from you. Push the memory card in until a click is heard.

  • Page 14: Removing A Micro Sd Card

    REMOVING A MICRO SD CARD Ensure that the KPT-510 is powered off, and with your thumbnail press in the Micro SD Card until a click is heard. The Micro SD Card will eject from the KPT-510 when released. NOTE: • Micro SD Card is not included.

  • Page 15: Installing The Kpt-510

    4. Press the mount base firmly against the windscreen and hold for 30 seconds. 5. Insert the power cable adapter into the dash camera power socket. NOTE: • It is advised that the KPT-510 is installed in the centre of the windscreen behind the rear view mirror.
  • Page 16 • Make sure that the camera view is not obstructed by any window tint or any other objects. • The KPT-510 is designed to be constantly powered by the included DC Power Plug. The internal battery is designed to hold saved settings and power the...

  • Page 17: Led Indicator

    • Continuous red light indicates the internal battery is charging. NOTE: • The KPT-510 is designed to be constantly powered by the included DC Power Plug. The internal battery is designed to hold saved settings and power the camera when in Park Mode. The battery is NOT designed for primary use.

  • Page 18: Manual Power Off

    MANUAL POWER OFF Make sure that recording has been stopped and then press the [ ] Power button. After powering down the device please wait for 10 seconds before turning the Car DVR back on. RESET THE CAR DVR If the Car DVR does not function normally, try restarting the car DVR. To restart the car DVR, using a small pin press and hold the Reset button on the bottom side of the camera.

  • Page 19: Setting The Time And Date

    3. Use the [ ] and [ ] Buttons to navigate the Setup Menu and highlight the Format SD Card setting and press the right [ ] to select. 4. Press the [ ] Down Button and select Apply. 5. Press the [ ] OK Button to confirm.

  • Page 20: Video Mode

    4. Use the [ ] and [ ] buttons to edit the selected digit and the right [ button to confirm and progress to the next digit. The final field sets the format that the date will be presented in, pressing the [ ] button with this field highlighted will save the date and time and return you to the settings menu.

  • Page 22: Interface

    INTERFACE...

  • Page 23: Video Mode

    VIDEO MODE Video Mode: Red circle indicates DVR is recording. 2. Lock File: Current Recorded File Locked indicator. 3. Microphone: Turns the Microphone on or off. 4. G-Sensor: Turns the G-Sensor on or off. 5. Duration: 00:00:01 Loop Recording timer. 6.

  • Page 24: Settings Menu

    SETTINGS MENU Press [ ] to stop Recording. 2. Press the [ ] Menu button twice to enter into the Settings Menu. 3. Press the [ ] and [ ] Button to select the setting you wish to change. 4. Press [ ] Button on your selected option.

  • Page 25: Video Menu

    Loop OFF/1,2,3,5 Minutes Loop Recording defines the length of time the Recording KPT-510 records before creating a new file. Using the Off setting will record the longest possible loops under the file size of 100 MB (around 1 minute). Default: 1 Minute Exposure +2.0, +5/3, +4/3,...
  • Page 26 VIDEO MENU CONT' Menu Select Settings Description Motion Off / On DVR will stop recording if it doesn’t detect Detection any motion and will immediately start recording if it detects motion. We suggest to use this option when DVR is connected via Hardwire kit.
  • Page 27 VIDEO MENU CONT' Menu Select Settings Description G-Sensor Off / Low /Medium To adjust the sensitivity of the G-sensor. / High High is the highest sensitivity and Low is the lowest. Default: Middle Number Input Number Plate Input your car number plate and it will be Plate Stamp watermarked on the recorded footage.

  • Page 28: Setup Menu

    Off / 3 / 5 / 10 Auto Screen Saver setting determines the Minutes amount of time before the display screen turns off and enters into Screen Saver Mode. (KPT-510 will keep on recording even if the display is Off). Default : Off...
  • Page 29 SETUP MENU CONT' Menu Select Settings Description Keypad Tone Off / On Mutes control for Key beeps. Default: On Language Select Language Select Menu Language. Default: English Format SD Cancel / Apply Format the inserted Micro SD Card, deleting Card all photos, videos and data.

  • Page 30: Picture Mode

    12.0 PICTURE MODE Resolution Picture Mode Exposure Favorites White Balance SD Card Battery Indicator Press OK to Stop Recording. 2. Press M (Mode Key) once to enter Picture Mode. 3. Press OK Key to take pictures.

  • Page 31: Playback

    13.0 PLAYBACK Resolution Playback of recorded Video File Name Time/Date Play/Pause Battery Number Recorded Plate Stamp Date Press the [ ] OK Button once to Stop Recording. 2. Press [ ] M (Mode Key) twice to enter Playback Mode. 3. Press [ ] and [ ] button to select the desired file to be played back.

  • Page 32: Removing The Existing 3M Mount From My Windscreen

    13.1 REMOVING THE EXISTING 3M MOUNT FROM MY WINDSCREEN To remove your existing Kapture 3M Mount from your windscreen, it's recommend that you gently twist the mounting bracket left and right until the 3M tape underneath starts to give way.
  • Page 33 This warranty excludes defects resulting from alterations of the product, accident, misuse, abuse or neglect. In order to claim the warranty, you must return the product to the retailer from which it was purchased or if that retailer is part of a National network, a store within that chain, along with satisfactory proof of purchase.

  • Page 34: Indemnity

    Kapture and its subsidiaries and affiliates or the Kapture services, relating to or arising out of your breach of any provision of these terms, your misuse of the Kapture or Kapture services, or your unauthorized modification or alteration of products or software.
  • Page 35 Kapture vehicle dash cameras, computer software, or other hardware. You agree that Kapture is not an insurer and that Kapture is not providing me with insurance of any type. Any amounts that you pay Kapture for the Kapture service are not insurance premiums and are not related to the value of your vehicle or property, anyone else’s property located in your vehicle or premises, or any risk of...
  • Page 36 The allocation of such risk remains with you, not Kapture. Other than the above product warranty for the Kapture vehicle dash cameras,...
  • Page 37 those that may arise from the nonconformity of a sales contract. For a full understanding of your rights you should consult the laws of your state, province, or country. For our australian cutomers: please note that this warranty is in addition to any statutory rights in australia in relation to your goods which, pursuant to the australian consumer law, cannot be excluded.

  • Page 38: Limitations Of Kapture Liability

    17.0 LIMITATIONS OF KAPTURE LIABILITY Under no circumstances will Kapture be liable in any way for any content, including, but not limited to, the loss of content, any errors or omissions in any content, or any loss or damage of any kind incurred in connection with use of or exposure to any content posted, emailed, accessed, transmitted, or otherwise made available via the Kapture app.
