Summary of Contents for Kapture KPT-250

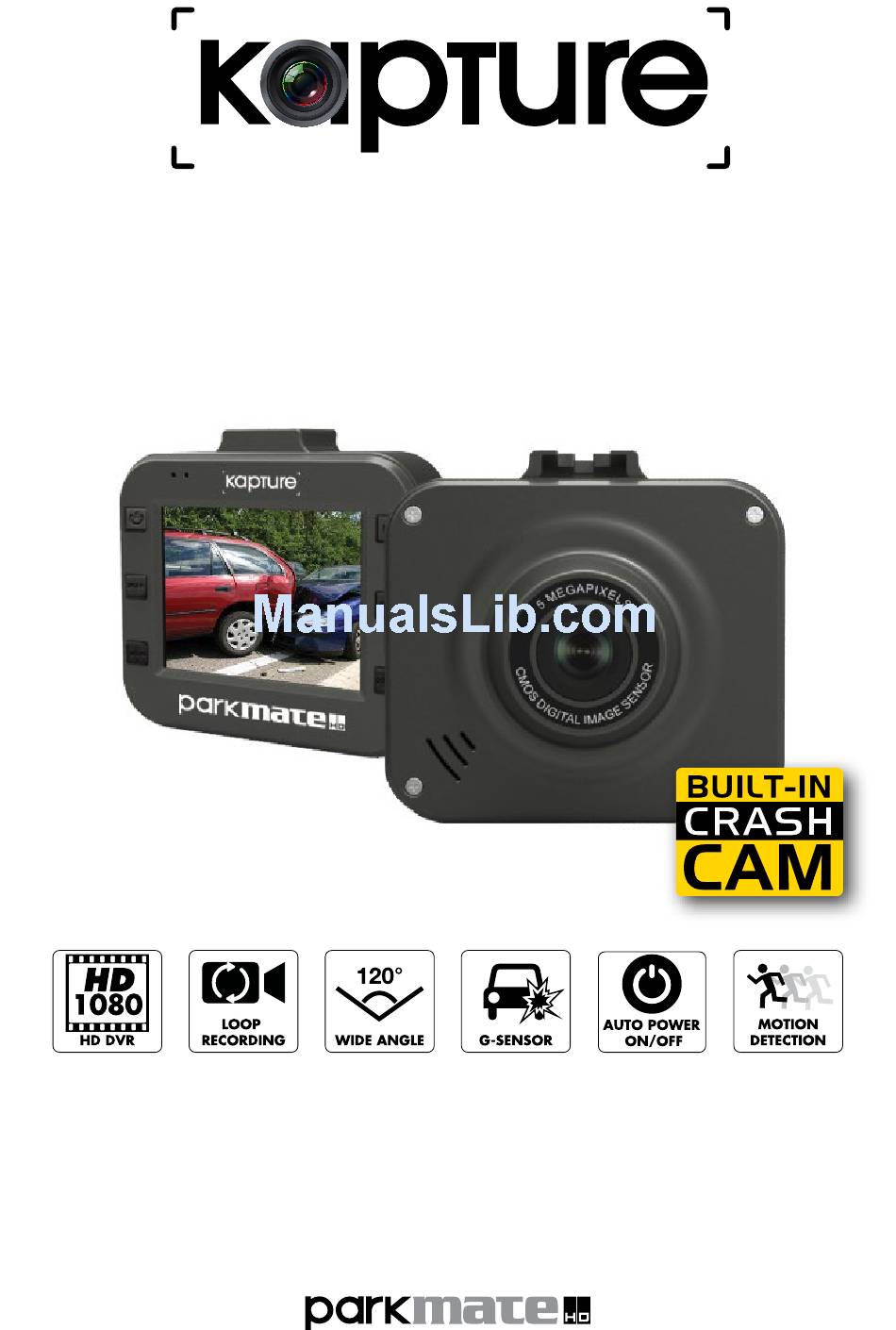

- Page 1 IN-CAR HD Digital Video Recorder USER MANUAL KPT-250...
- Page 2 In order to ensure better use of each function of your Kapture In-Car HD DVR, it is recommended that you read these product instructions carefully before using this product. Note: 1. Please abide by the relevant laws in your local area; please do not use this product for illegal purposes.
- Page 3 A. Product Details 1. Bracket receiver 9. Mode button 2. USB port 10. Menu button 3. Reset button 11. LCD Screen 4. Micro SD card slot 12. Down button 5. Speaker 13. Start & Stop Record / Select button 6. Operation indicator 14.
-
Page 4: Product Accessories
• Shutting Down your Parkmate Kapture KPT-250 DVR: i. To Shut-Down from a powered state with no charger connected, quickly press the “On/Off” button. -
Page 5: Capturing Video
iii. When battery power is insufficient, the DVR screen will shut down and the DVR will automatically save the video file. 2. Charging The battery: • You can charge the DVR battery by via a USB cable or via the car charger. •... -
Page 6: Motion Detection Function
• Select the option “Delete Current” or “Delete All” • Press the “Record” button to confirm your selection • Press the “Menu” button to exit the Delete menu and return to playback mode. 7. SOS function: • When in video capture mode, in the case of an incident that occurs in front of your car, press the “Menu”... -
Page 7: Function Directory
F. Function Directory Mode Menu Select Settings Remark 1080FHD 1920x1080 25fps 1080P 1440x1080 25fps Resolution 720P 1280x720 30fps WVGA 848x480 30fps 640x480 30fps Cycle recording Off / 30 seconds / 1min / 2mins -+2.0, +5/3, +4/3, Exposure +1.0, +2/3, +1/3, +0.0, Compensation -1/3, -2/3, -1.0, -4/3, Video... - Page 8 Mode Menu Select Settings Remark 4032 x 3024 3648 x 2736 3264 x 2448 2592 x 1944 Higher resolution Resolution 2048 x 1536 = larger file size 1920 x 1080 1.3M 1280 x 960 640 x 480 Continuous Off / On Shooting High quality / Standard / Image Quality...
- Page 9 Mode Menu Select Settings Remark Cancel Delete Current / Delete All Lock Current / Unlock Play Protection Current / All Lock / Back Unlock All 2 seconds / 5 seconds / Slide Show 8 seconds Menu Select Settings Remark MM/DD/YY, DD/MM/YY, Date/Time YY/MM/DD Automatic...
- Page 10 G. Connecting DVR to PC for Download of Video and Photo Data: • When the DVR is connected via the USB cable to a computer, the camera’s red power light turns on • The LCD screen will display Menu Setting Options: “Mass Storage / PC Camera”.
-
Page 11: Product Specification
I. Product Specification Screen 2.0” TFT screen Imaging Sensor 1.0MP 120 degree HD wide-angle lens Lens 180° degree Camera Rotation Minimum 1 Lux Video Resolution 1080P / 720P / 480P Video Format AVI /MJPG Frames 30 fps Image Resolution 12M / 10M / 8M / 5M / 3M / 2M / VGA / 1.3M Photo Format Motion Detection Supported... - Page 12 Warranty Terms & Conditions Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
