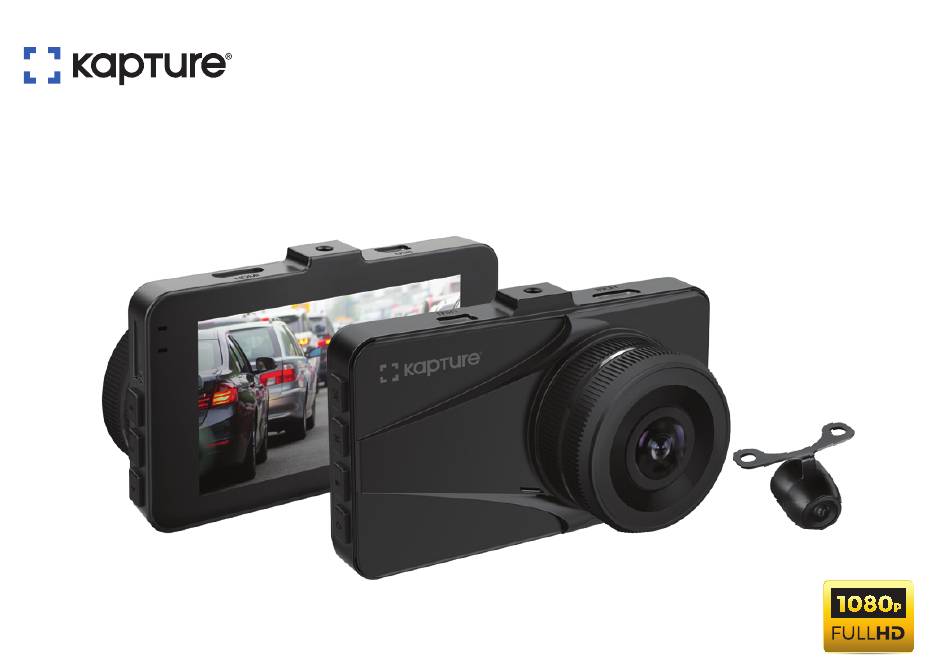

- Page 1 Full HD Dash camera 3.0" IPS Screen with Rear Camera & 24 hr Parkmode KPT-522 USER MANUAL...
-
Page 3: Table Of Contents
BUTTON FUNCTIONS ......................10 GETTING STARTED ......................11 Inserting a Micro SD Card ...................11 Removing a Micro SD Card ..................12 Installing the KPT-522....................13 Adjusting the Angle of the KPT-522 ................. 14 Installing the Rear Camera ..................15 4.5.1 Installation Guide ................... 15... - Page 4 4.5.3 Rear Camera Features ................. 17 Connecting to Power ....................18 LED Indicator ........................ 19 POWERING THE KPT-522 ON/OFF ................19 Auto Power On/Off ..................... 19 Manual Power On ......................19 Manual Power Off ...................... 20 Reset the Car DVR ...................... 20 INITIAL SETTINGS ......................
- Page 5 Video Mode ........................23 Setup Menu ........................24 10.0 VIDEO MENU ........................25 11.0 PICTURE MODE ........................29 12.0 PLAYBACK ........................30 13.0 WARRANTY TERMS & CONDITIONS ................31...
-
Page 6: Caution
CAUTION • Ensure you are using your Car Dash Cam within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Avoid leaving your Dash Cam in direct sunlight for extended periods of time in an unventilated space. -
Page 7: Battery Warning
BATTERY WARNING Always charge the Car Dash Cam using the provided charger. Improper charging of the Car Dash Cam and may result in failure of the internal battery. Never dismantle the Car Dash Cam or expose the internal battery. Do not dispose of the Car Dash Cam in fire. Dispose of the Car Dash Cam observing local regulations being mindful of the internal battery. -
Page 8: Product Information
• Only use the included cable to power the Car Dash Cam. • The KPT-522 is designed to be constantly connected to the included power supply, and is NOT designed to be used solely with the camera’s built in battery. -
Page 9: Introduction
Thank you for purchasing a Kapture Dash Cam. Please read through instructions before attempting to install or use this product. This User guide is designed to assist with the day to day operation of the KPT-522. Before attempting to use or install your Kapture KPT-522, please ensure you have read and understood all of the safety notes below. -
Page 10: Package Contents
• Ensure you are using your KPT-522 within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. -

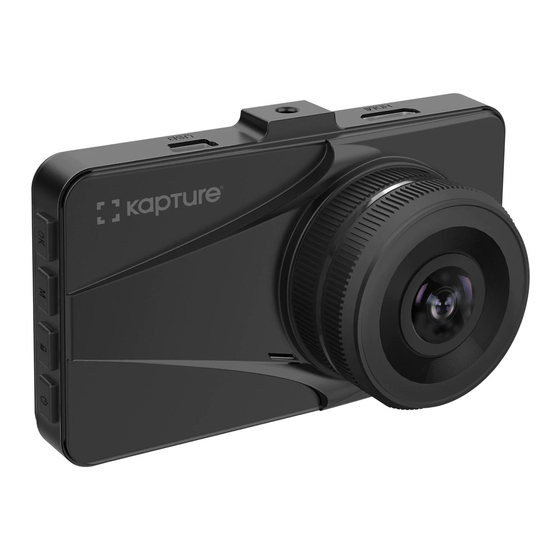

Page 11: Product Overview
PRODUCT OVERVIEW Micro SD card slot* Up Button Menu Button 4. Down Button HDMI Port/Rear Camera In Slot for fixing mount Mini USB power socket 8. Recording Indicator LED Display Screen 10. Rec / OK Button 11. Mode Button 12. Lock Recording Button 13. -
Page 12: Button Functions
BUTTON FUNCTIONS MODE BUTTON When Device is not recording, press the M button to switch between Video Mode / Photo Mode / Play Back mode. OK BUTTON Press the OK Button to start/stop video recording in Video mode. Press the OK Button to take photo in Camera mode. Press the OK Button to play/pause current video on playback mode. -
Page 13: Getting Started
With the Car DVR turned off and the screen facing towards you insert your Micro SD Card (not included) in the slot on the right side of the KPT-522 with the text on the Micro SD card away from you. Push the memory card in until a click is heard. -
Page 14: Removing A Micro Sd Card
REMOVING A MICRO SD CARD Ensure that the KPT-522 is powered off, and with your thumbnail press in the Micro SD Card until a click is heard. The Micro SD Card will eject from the KPT-522 when released. NOTE: • Micro SD Card is not included. -
Page 15: Installing The Kpt-522
Insert the power cable adapter onto the dash camera power socket. Rear camera connector has to be inserted in HDMI port of the dash camera. NOTE: • It is advised that the KPT-522 is installed in the centre of the windscreen behind the rear view... -
Page 16: Adjusting The Angle Of The Kpt-522
ADJUSTING THE ANGLE OF THE KPT-522 Loosen the Angle Locking Wheel on the mounting bracket, and adjust the vertical and horizontal angle of the camera. Tighten the Angle Locking Wheel to lock the position of the camera. Mounting Lock Wheel... -
Page 17: Installing The Rear Camera
INSTALLING THE REAR CAMERA 4.5.1 INSTALLATION GUIDE Select a flat and centred location near the number plate lamp at the rear of the vehicle to mount camera. Attach tape to the bracket of the camera to hold the camera in position while installing, and drill two small holes, one for the first screw, the second to run the reverse camera cable through. -
Page 18: Rear Camera Wiring Diagram
Mark the position suitable for the second screw and drill a small hole for it. Fix the second screw and securely tighten both screws. 4.5.2 REAR CAMERA WIRING DIAGRAM Rear Camera 6M Rear Camera Cable Reversing Light Wire... -
Page 19: Rear Camera Features
4.5.3 REAR CAMERA FEATURES After successfully installing and connecting of the rear camera into the main DVR, the rear camera will be displayed on the Dash Cam's 3.0" IPS Screen. Both Cameras will instantaneously start recording after DVR is powered ON. Both Front and Rear Camera images will now be displayed on your Dash Camera's 3.0"... -
Page 20: Connecting To Power
• Make sure that the camera view is not obstructed by any window tint or any other objects. • The KPT-522 is designed to be constantly powered by the included DC Power Plug. The internal battery is designed to hold saved settings and power the... -
Page 21: Led Indicator
• Flashing red light indicates the internal battery is charging. NOTE: • The KPT-522 is designed to be constantly powered by the included DC Power Plug. The internal battery is designed to hold saved settings and power the camera when in Park Mode. The battery is NOT designed for primary use. -
Page 22: Manual Power Off
MANUAL POWER OFF Make sure that recording has been stopped and then press the Power button on the lower right hand side of the car DVR. After powering down the device please wait for 10 seconds before turning the Car DVR back on. RESET THE CAR DVR If the Car DVR does not function normally, try restarting the car DVR. -
Page 23: Setting The Time And Date
4. Select SD Card and press the OK Button. Press the OK Button to confirm. NOTES: • Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. • Formatting your Micro SD Card will delete all files from the card. Once these files have been deleted you will not be able to recover them. -
Page 24: Video Mode
4. Use the buttons to edit the selected digit and the right button to confirm and progress to the next digit. The final field sets the format that the date will be presented in, pressing the button with this field highlighted will save the date and time and return you to the settings menu. -
Page 25: Interface
INTERFACE VIDEO MODE 5 6 7 8 9 10 Video Mode: Number 3 shows the loop recording duration. Resolution: 1080 FHD Video Recording Resolution. Duration: 00:00:01 Loop Recording timer. 4. Motion Detection: Displays Motion Detection. -
Page 26: Setup Menu
Lock File: Current Recorded File Locked indicator. Park Mode: The highlighted bar indicates the sensitivity of Park mode with 1 Bar indicates Low Sensitivity. G-Sensor: The highlighted bar indicated the sensitivity of G-Sensor with 1 Bar indicates Low Sensitivity. 8. Microphone: Turns on or off the Microphone. Micro SD Card: Indicates inserted SD Card. -
Page 27: Video Menu
Loop Recording defines the length of time the Recording Minutes KPT-522 records before creating a new file. Using the Off setting will record the longest possible loops under the file size of 1 GB (around 5 minutes). Default: 3 Mins... - Page 28 VIDEO MENU CONT' Menu Select Settings Description Language Select Select Menu Language. Language Default: English Date/Time Set Date and Using the Up/Down and OK buttons to enter the Time date and time (24hr clock) to stamp onto your footage. Once you have finished use the Menu button to save and return to the Settings Menu.
- Page 29 VIDEO MENU CONT' Menu Select Settings Description Motion Off / On DVR will stop recording if it doesn’t detect any Detection motion and will immediately start recording if it detects motion. Default: Off Number Input Number Input your car number plate and it will be Plate Plate watermarked on the recorded footage.
- Page 30 Off / 1 min / 3 Auto Screen Saver setting determines the amount Display Off mins / 5 mins of time before the display screen turns off. (KPT-522 will keep on recording even the display is Off). Default : Off Flicker 50Hz / 60 Hz Screen Hz setting.
-
Page 31: Picture Mode
11.0 PICTURE MODE SD Card Picture Battery Resolutions Indicator Press OK to Stop Recording. Press M (Mode Key) once to enter Picture Mode. Press OK Key to take pictures. -
Page 32: Playback
12.0 PLAYBACK Video Play/ Battery Pause Resolution of recorded Video File Name Press the OK Button once to Stop Recording. Press M (Mode Key) twice to enter Playback Mode. Press button to select the desired file to be played back. 4. -
Page 33: Warranty Terms & Conditions
13.0 WARRANTY TERMS & CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - Page 34 Directed Electronics will repair, replace or refurbish the product at its discretion. The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to Directed Electronics, will be borne by you. Directed Electronics Address: 44 Translink Drive, Keilor Park Victoria 3042 Ph: +61 03 8331 4800 Email: service@kapturecam.com.au...
