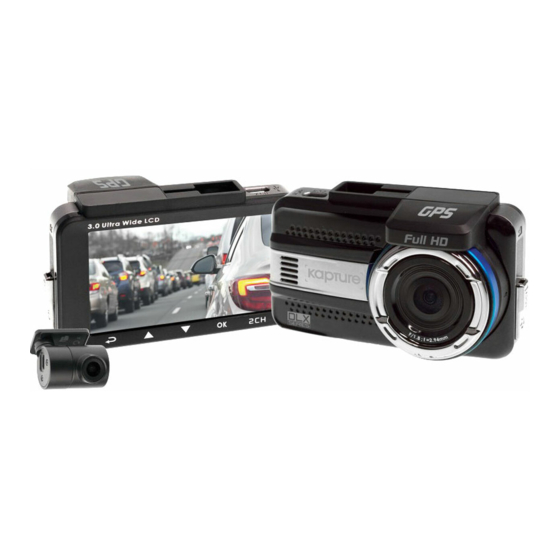

- Page 1 Y O U R E Y E W I T N E S S O N T H E R O A D ™ KPT-942 User Manual IN-CAR DASH CAM REAR VIEW CAMERA | GPS | ADAS WITH...
-
Page 3: Table Of Contents
Caution ..................................5 Battery warning ................................5 Notes on Installation ..............................5 Product Information ..............................6 Introduction 6 1.1 Features ................................6 1.2 Package Contents .............................. 6 1.3 Product Overview ............................6-7 Getting Started ..........................................7 2.1 Inserting the Memory Card..........................7 2.2 Installing in Vehicles ............................ - Page 4 3.1.2 Emergency Recording ........................... 12 3.1.3 The Recording Screen........................... 13 3.1.4 Taking Snapshots ..........................14 3.2 Driving Safety ..............................14 3.2.1 Lane Departure Warning System (LDWS) ..................14-15 3.2.2 Forward Collision Warning System (FCWS) ..................15-16 3.2.3 Front Car Movement Detection (FMCD) .................... 16-17 3.2.4 Headlight Warning ..........................
-
Page 5: Caution
Caution • Ensure you are using your Car Dash Cam within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Avoid leaving your Car Dash Cam in direct sunlight for extended periods of time in an unventilated space. •... -
Page 6: Product Information
For latest manual and product updates please visit our website at www.kapturecam.com.au or www.kapturecam.co.nz 1. Introduction Thank you for purchasing a Kapture Car Dash Cam. Please read through these instructions before attempting to install or use this product. 1.1 Features •... -
Page 7: Getting Started
Note: For optimum operation it is advised that the KPT-942 is installed near, or behind your vehicles rear view mirror. 2.2.2 Removing the Car Dash Cam from the Windscreen 1. Release the locking switch as shown in 2. -
Page 8: Adjust The Position Of The Car Dash Cam
2.2.3 Adjust the position of the Car Dash Cam 1. Loosen the knob and adjust the device 3. To remove the device, push the vertically and/or horizontally. release of the left side of the mount and slide off. 2. Tighten the knob to make sure the device is securely locked in place. -
Page 9: Connecting The Car Dash Cam To The Rear View Camera
2.2.7 Connecting the Car Dash Cam to the Rear View Camera 1. Using the supplied 6M micro USB extension cable, connect one end of the cable to the port marked 2CH on the Car Dash Cam. 2. Run the cable neatly along or under your vehicles’ interior trim to the Rear View Camera and connect the other end of the cable to the Rear View Camera’s micro USB port. -
Page 10: Led Indicator
LED Indicator STATUS EXPLANATION LED INDICATOR COLOUR Power off, battery charging Power off, battery fully charged LED light off Power on, battery charging Power on, battery fully charged Green Standby / Standby with screen off Green Recording / Recording with screen off Flashing red Powering the Device On / Off 2.5.1 Auto Power On/Off... -
Page 11: Initial Settings
Initial Settings Before using the Car Dash Cam, we recommend you enable the Automatic Record function and set the correct Date and Time. 2.6.1 Set the Timezone To set the correct date and time, please follow the instructions below: 1. Press (shown on screen ) to enter the Main Menu. -
Page 12: Using The Car Recorder
3. Using the Car Dash Cam 3.1 Recording Videos 3.1.1 Record videos while driving When the vehicle is started the Car Dash Cam will automatically turn on and start recording. During the Car Dash Cam’s start up sequence the buttons and menus will be unresponsive. Recording will automatically stop when the vehicle is powered off. -
Page 13: The Recording Screen
3.1.3 The Recording Screen ICON ITEM DESCRIPTION Recording Duration Indicates the current video duration. Date / Time Indicates the current recording date and time. Menu Button During video recording, press the button to enter the OSD menu. Add Speed Point Button During video recording, press the button to add a speed cam point. -
Page 14: Taking Snapshots
3.1.4 Taking Snapshots You can also use your Car Dash Cam to take snapshots. 1. Press (shown on screen as ) in recording mode to take a snapshot. 2. A snapshot is taken when this icon appears at centre of screen. -
Page 15: Forward Collision Warning System (Fcws)
4. Press to exit the menu and return to the recording screen. 5. After enabling LDWS, the screen will display alignment guidelines please adjust the position of the Car Dash Cam so that the horizontal guideline and the horizon line overlap, and the diagonal lines are aligned with the lane markings on screen. -
Page 16: Front Car Movement Detection (Fmcd)
5. After enabling FCWS, the screen will display alignment guidelines please adjust the position of the Car Dash Cam so that the horizontal guideline and the horizon line overlap and the diagonal lines are aligned with the lane markings on screen. Make sure that the guide lines are not obscured by any part of your vehicle (e.g. -
Page 17: Headlight Warning
6. Once your car’s location is determined by GPS, when your vehicle is motionless for 20 seconds the Car Dash Cam produces voice and on screen alerts when the movement of the traffic in front of you moves forward. Note: 1. -
Page 18: Add Speed Point
3.2.5 Add speed point You can manually add speed cam positions in this Car Dash Cam. 1. Press ) to add new Speed Camera Position during recording. (shown on screen as 2. Up to 200 speed camera points can be saved. 3. -
Page 19: Speed Limit Alert
3.2.7 Speed Limit Alert If the Speed Limit Alert function is enabled, the Car Dash Cam will give you audio alerts once your car’s location is determined by GPS and the vehicles speed exceeds the set limit. To set the Speed Limit Alert, follow the instructions below: 1. -
Page 20: Parking Mode
The following driver safety functions are for reference only. Drivers are advised to exercise discretion based on actual road conditions. 3.2.9 Parking Mode Parking Mode can be set to trigger recording when your vehicle is parked and powered off and an impact is detected via the G-Sensor or when movement is captured in front of the camera lens via Motion Detection. -
Page 21: Collision Detection
3.2.10 Collision Detection (G Sensor) The sensitivity of the Collision Detection function is set to medium by default. The Car Dash Cam will start an emergency recording once it detects any vibrations caused by a collision. To change the settings of Collision Detection: 1. -
Page 22: Playing Videos And Viewing Pictures
3.3 Playing Videos and Viewing Pictures 3.3.1 Playing Videos and Emergency Recordings Playback video files as follows: 1. Press (shown on screen ) to enter Main Menu. 2. Use buttons to navigate to File Playback and press to enter the menu. 3. -
Page 23: The Playback Screen
7. While viewing a photo, press to stop playback and return to the file browser. 8. Press to return to the File Playback menu. 9. Press to return to the Main menu. 10. Press to exit the menu and return to the recording screen. 3.3.3 The Playback Screen ICON ITEM... -
Page 24: Deleting Files
3.3.4 Deleting Files To delete file(s), do the following: 1. Press (shown on screen ) to enter Main Menu. 2. Use the buttons to navigate to File Deletion and press to enter the menu. 3. Use the buttons to navigate between Video, Parking Mode, Emergency or Picture and press to enter the menu. -
Page 25: Delete All
3.3.5 Delete All To delete file(s), do the following: 1. Press (shown on screen ) to enter Main Menu. 2. Use the buttons to navigate to File Deletion and press to enter the menu. 3. Use the buttons to navigate between Video, Parking Mode, Emergency or Picture and press to enter... -
Page 26: Menu Items
4.2 Menu Items Refer to the below table for details of main menu and function list. DESCRIPTION AVAILABLE OPTION Date/Time: Set the date and time. Set Timezone: Set the time zone you are in. GMT+14:00 ~ GMT-12:00 Time Sync: If GPS is enabled the Car Dash Cam clock will be synchronised with the satellite On / Off clock signal based on the time zone specified in the Set Timezone menu. - Page 27 DESCRIPTION AVAILABLE OPTION FCMD: Once your car’s location is determined by GPS and the FCMD function is enabled, the Car Dash Cam will detect the movement of the traffic in front of you after your car remains On / Off motionless for 20 seconds.
-
Page 28: Installing The Software
5. Installing the Software You can customise the general settings via the on-screen display (OSD) menus. 1. Place the included CD ROM into the CD player of your computer. 2. If the CD does not execute automatically, please use Windows File Manager to execute the Install_CD.exe file in the CD. -
Page 29: Menu
7. Menu VIDEO PARKING MODE EMERGENCY FILE PLAYBACK PICTURE DISPLAY SATELLITE STATUS SATELLITE STATUS SATELLITE SYNCHRONISATION SPEED UNIT SPEED CAM ALERT SPEED POSITION MANAGEMENT ADD SPEED POINT DELETE LAST POSITION DELETE ALL POSITION 50 KM/H 60 KM/H 70 KM/H 80KM/H 90KM/H 100KM/H 110KMH... - Page 30 TURN OFF AFTER 30 SEC. TURN OFF AFTER 3MIN. LCD SETTING VOICE RECORD VOLUME SET VOLUME (SLIDER 1 -10) VIDEO DURATION 1 MIN. 3 MIN. PARKING MODE VIBRATION DETECTION MOTION AND COLLISION DETECTION HIGH SENSITIVITY NORMAL SENSITIVITY LOW SENSITIVITY COLLISION DETECTION DRIVER FATIGUE ALERT HEADLIGHT WARNING LDWS...
-
Page 31: Specifications
8. Specifications FUNCTION LIST DESCRIPTION Front Camera: 1/3” CMOS sensor Image sensor Rear Camera: 1/2.7” CMOS sensor Front Camera: 2688 (H) x 1520 (V) Effective pixels Rear Camera: 1920 (H) x 1080 (V) Supports Micro SDHC Class 6, min. 16GB, max. 32GB Storage media LCD display 3.0”... -
Page 32: About This Guide
About this Guide The content in this document is for information purpose and is subject to change without prior notice. We made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred. The manufacturer reserves the right to change the technical specifications without prior notice. -
Page 33: Warranty
Warranty Terms & Conditions Our goods come with guarantees that cannot be excluded under the Australian & New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - Page 36 Y O U R E Y E W I T N E S S O N T H E R O A D ™ www.kapturecam.com.au www.directed.com.au www.kapturecam.co.nz www.directed.co.nz...
