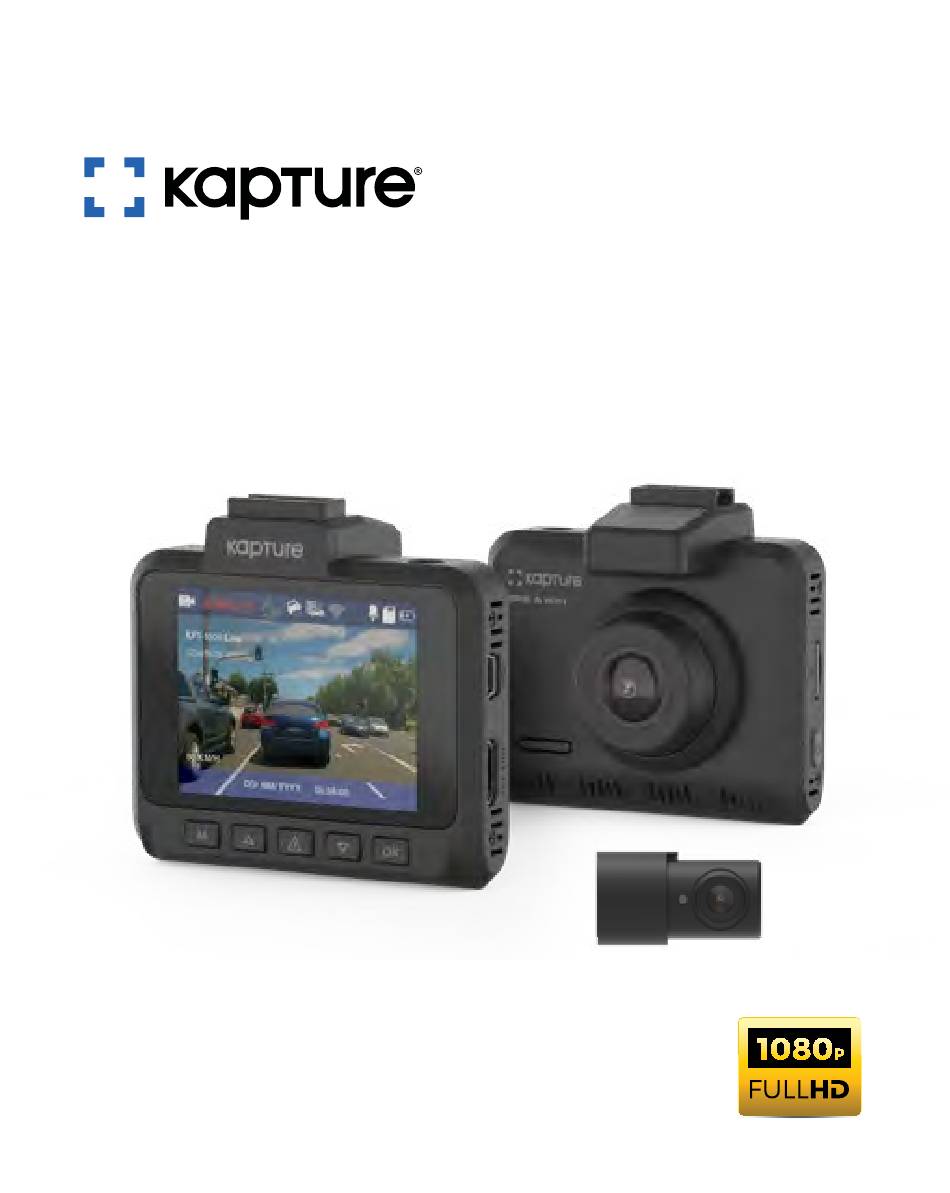

- Page 1 1080P FULL-HD Dash Camera With 2.4" Screen, GPS Logger, WIFI & FHD Rear Camera * Includes 1080P Rear Camera KPT-1024 USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ................4 CAUTION ..................5 Battery Warning .................6 Product Information ..............7 Package Contents ..............7 Product Overview ..............8 BUTTON FUNCTIONS AND INDICATORS........9 GETTING STARTED ................10 Inserting a Micro SD Card ............10 Removing a Micro SD Card .............11 Installing the KPT-1024.............11 Installing the Rear Camera ............ - Page 4 REAL-TIME ROAD ALERTS ............18 Speed Camera Alert ..............18 Blackspot Alert .................18 School Zone Alert ..............19 Railway Crossing Alert ............19 10.0 INTERFACE ................... 20 10.1 Video Mode ................20 11.0 PLAYBACK VIDEO ................21 11.1 Setup Menu ................21 12.0 SOFTWARE PLAYBACK ..............25 13.0 DOWNLOADING THE KPT-KONNECT APP AND CONNECTING TO YOUR KPT-1024 ...............
-
Page 5: Introduction
INTRODUCTION Thank you for purchasing a Kapture Dash Camera. Please read these instructions before attempting to install or use this product. Before attempting to use or install your Kapture KPT-1024, please ensure you have read and understood all of the safety notes below. -
Page 6: Caution
CAUTION • Ensure you are using your Dash Camera within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Please set the time and date before you use this device. • The notifications given by the Dash Camera are suggestions only, please drive according to the actual conditions of the road. -
Page 7: Battery Warning
BATTERY WARNING • Always charge the Dash Camera using the provided charger. Improper charging of the Dash Camera may result in failure of the internal battery. • Never dismantle the Dash Camera or expose the internal battery. • Do not dispose of the Dash Camera in a fire. •... -
Page 8: Product Information
PRODUCT INFORMATION For the latest manual and product updates please visit our website at www.kapturecam.com.au or www.kapturecam. co.nz. PACKAGE CONTENTS Spare 3M KPT-1024 Dash Camera Adhesive Plate Dash Camera 3M Mount 12/24v Car 1080P FHD User Charger Rear Camera Guide Electrostatic Film x 2... -
Page 9: Product Overview
PRODUCT OVERVIEW Menu/Mode Button Reset Up Button 10. Microphone Lock Recording Button 11. Speaker + WiFi ON/OFF 12. Lens 4. Down Button 13. Slot for Mount Recording/OK Button 14. Cam/Rear Camera ON/OFF Power Button 15. LCD Screen Micro SD Card Slot 16. -
Page 10: Button Functions And Indicators
BUTTON FUNCTIONS AND INDICATORS To access the menu you need to press the 'OK' button to stop recording. Symbol Instruction Press to enter the General Settings Menu. Menu / Mode Button Press and hold to enter Playback mode. In the Settings menu use the Up Up Button Button to toggle between the Settings. -
Page 11: Getting Started
BUTTON FUNCTIONS AND INDICATORS CONT' Symbol Instruction Micro SD Card slot. Please use a Micro SD Card capacity of 32 to 128 GB, Class 10 Slot and above SD Card. Mini USB Power socket to connect Mini USB Power with the power adaptor cable Socket provided in the packaging. -
Page 12: Removing A Micro Sd Card
REMOVING A MICRO SD CARD Ensure that the KPT-1024 is powered off, and with your thumbnail press in the Micro SD Card until a click is heard. The Micro SD Card will eject from the KPT-1024 when released. PLEASE NOTE: •... -
Page 13: Installing The Rear Camera
4. Insert the power cable adaptor into the Dash Camera power socket. Then insert the rear camera in the CAM port on the Dash Camera. NOTE: • It's recommended that the KPT-1024 is installed in the centre of the windscreen behind the rearview mirror. - Page 14 Method 1: Thread the rear camera cable along the top of the roof lining and connect it to the KPT-1024 Dash Camera. Method 2: Lift up the car carpet and run the rear camera cable along the underlay of the carpet and connect it to the KPT-1024 Dash Camera.
-
Page 15: Rear Camera Wiring Diagram
4.4.2 REAR CAMERA WIRING DIAGRAM Rear Camera 8M Rear Camera Cable... -
Page 16: Rear Camera Features
4.4.3 REAR CAMERA FEATURES After successfully installing and connecting the rear camera into the main Dash Camera, the rear camera will be displayed on the Dash Camera's 2.4” Screen. Both Cameras will instantaneously start recording after the Dash Camera is powered ON. Both Front and Rear Camera images will now be displayed on your Dash Camera's 2.4"... -
Page 17: Led Indicator
MANUAL POWER ON Hold the Power Button on the lower right-hand side of the camera until the Kapture start-up screen appears. MANUAL POWER OFF Press the Power Button on the lower right hand side of the Dash Camera. After powering down the device, please wait for... -
Page 18: Resetting The Kpt-1024
RESETTING THE KPT-1024 If the Dash Camera does not function normally, try restarting the Dash Camera. To restart the Dash Camera, using a small pin, press and hold the Reset Button on the bottom side of the camera. INITIAL SETTINGS Before using the Dash Camera we recommend formatting the inserted Micro SD Card and Setting the correct Time and Date. -
Page 19: Setting The Time And Date
SETTING THE TIME AND DATE Setting the Time and Date allows you to stamp your footage with this information as a reference. This information is particularly critical when you want to use your footage in insurance claims. Press the Menu Button to enter the Settings/Setup Menu. Press the UP and Down Key to select Date/Time. -
Page 20: School Zone Alert
SCHOOL ZONE ALERT School Zone alerts will notify you before you enter a school zone. RAILWAY CROSSING ALERT Railway Crossing alerts will notify you of an upcoming rail crossing. NOTE: • You can adjust the Settings so you can choose how far your car needs to be from an alert to receive a notification from the Settings menu. -
Page 21: Interface
10.0 INTERFACE 10.1 VIDEO MODE Video Mode: Number 3 shows the loop recording duration. Duration: 00:00:01 Loop Recording timer. GPS: GPS Signal Indicator. 4. G-Sensor: The highlighted bar indicates the sensitivity of the G-Sensor with 1 bar indicating low sensitivity. Parkmode: The highlighted bar indicates the sensitivity of Parkmode with 1 bar indicating low sensitivity. -
Page 22: Playback Video
11.0 PLAYBACK VIDEO If the Dash Camera is recording, press the OK key first to stop recording. Long press Menu key to switch to playback mode. Short press key to page up or down to select files. 4. Short press the 'OK' key to play selected video files. Short press it again to pause. - Page 23 SETUP MENU CONT' Menu Select Settings Description Turning this Setting off mutes the built in microphone. Microphone Off / On Default: On Changes the exposure value of recording 0 / 0.3 / 0.7 / 1 / footage. Exposure 1.3 / 1.7 / 2 EV Default: 0 To adjust the sensitivity of the G-sensor.
- Page 24 SETUP MENU CONT' Menu Select Settings Description ADAS gives a lane departure warning. ADAS Off / On Default: Off Front Camera Rear Camera PIP A: Front Changes the video display mode options camera with for the Dash Camera. Front Camera, Display Mode Rear Camera IN Rear Camera, Picture in Picture mode.
- Page 25 SETUP MENU CONT' Menu Select Settings Description Input License Input your car license plate and it will be License Plate Plate Numbers stamped over the recorded footage. Sets a reminder to format your Micro SD Card in case of excess locked footage Format SD Off / 15 / 30 / files.
-
Page 26: Software Playback
12.0 SOFTWARE PLAYBACK Your KPT-1024 with inbuilt GPS will record the GPS coordinates and the speed of your travel. To play back the GPS or recorded footage on your desktop or laptop, please follow these steps: - Download software from www.kapturecam.com.au and run it on your PC. -
Page 27: Downloading The Kpt-Konnect App And Connecting To Your Kpt-1024
13.0 DOWNLOADING THE KPT-KONNECT APP AND CONNECTING TO YOUR KPT-1024 The KPT-1024 needs to be used in combination with the KPT-KONNECT App to function correctly. All major Settings on the KPT-1024 are accessed through the KPT-KONNECT App. The system requirements for your smartphone are noted below. -
Page 28: Kpt-Konnect App Operation
For a step by step guide on connecting to your Dash Camera please follow the steps below. Power on the KPT-1024, turn the WiFi ON (refer to Product Overview - Button 3 on page 7) and allow 2 minutes for the WiFi connection to start. -
Page 29: App Video Playback And Downloading Videos
After following the previous section instructions, downloading the KPT-Konnect App and connecting with your KPT-1024 , please review the below instructions on how to best operate your App. 14.1 APP VIDEO PLAYBACK AND DOWNLOADING VIDEOS For Video Playback, please follow the instructions below. Open the KPT-KONNECT App. -
Page 30: Kpt-1024 App Settings
Picture 1: Select KPT-1024 from the drag down menu on the home page of the App when you first open it. Picture 2: Press the gallery icon and the videos saved on the phone will become available. Picture 3: To access the recorded files, press 'Connect to Dash Camera'. -
Page 31: Warranty Terms & Conditions
15.0 WARRANTY TERMS & CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. -
Page 32: Indemnity
15.2 WARRANTY AND WARRANTY DISCLAIMER Kapture has a limited warranty, whereby Kapture warrants to you and only to you that this Kapture product will be free from defects in materials and workmanship for one (1) year from the date of your purchase (unless a longer warranty period is required by law). - Page 33 Kapture product or software. In the event of any loss, damage or injury, you will not look to Kapture to compensate you or anyone else. You release and waive for...
- Page 34 Other than as permitted by law, Kapture does not exclude, limit or suspend other rights you have, including those that may arise from the nonconformity of a sales contract.
- Page 35 Some states and countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not Apply to you. Additionally, this provision is not intended to limit Kapture’s liability in the event of Kapture’s wilful or intentional misconduct.
-
Page 36: Notes
16.0 NOTES... - Page 40 V1.1 Y O U R E Y E W I T N E S S O N T H E R O A D ™ All Images, Information and Content are Copyright © 2023 Directed Electronics Australia Pty Ltd. All Rights Reserved. www.directed.com.au www.directed.co.nz www.kapturecam.com.au...
