Summary of Contents for Kapture KPT-200

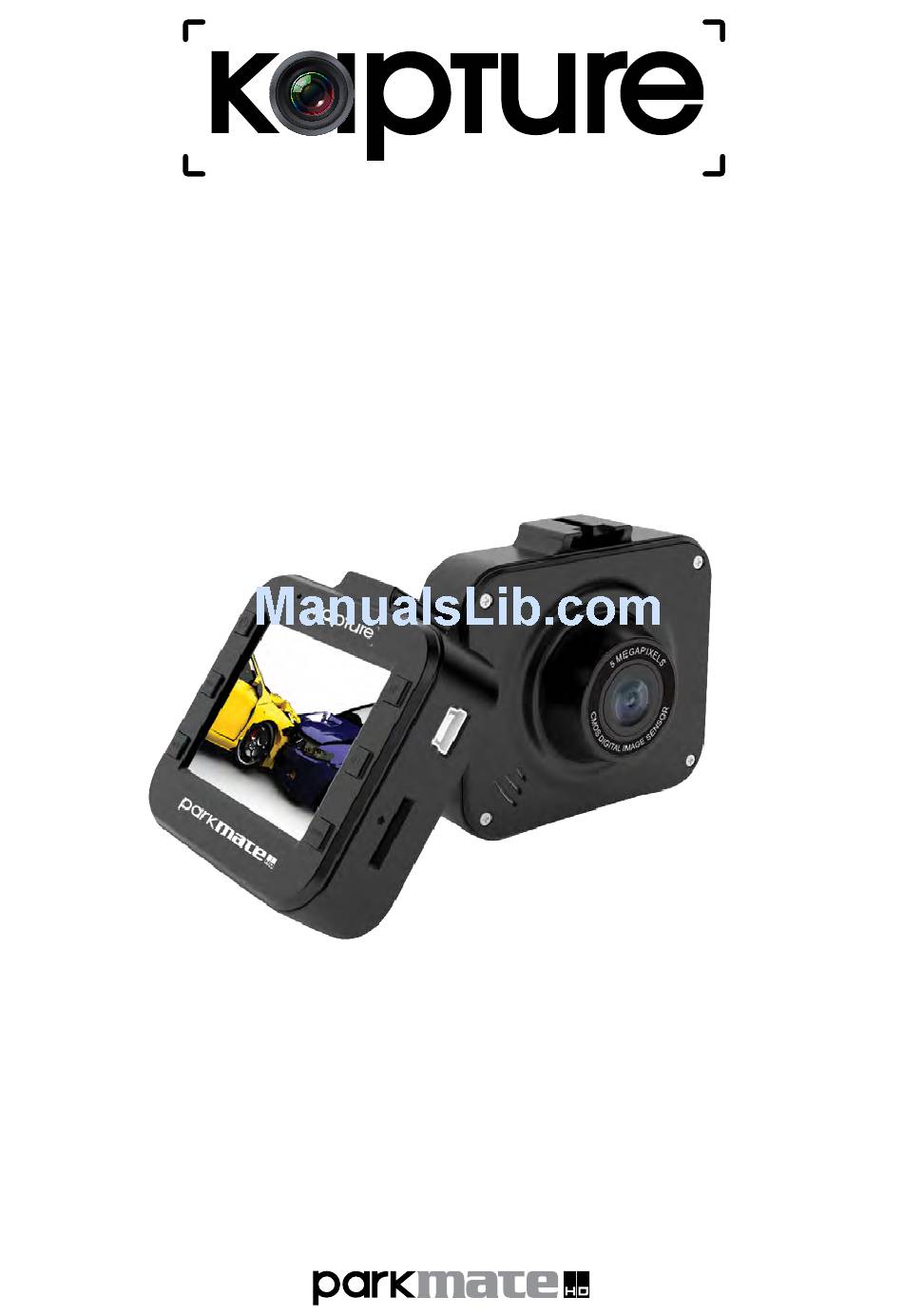

- Page 1 IN-CAR HD Digital Video Recorder USER MANUAL KPT-200...
- Page 2 In order to ensure better use of each function of your Kapture In-Car HD DVR, it is recommended that you read these product instructions carefully before using this product. Note: 1. Please abide by the relevant laws in your local area;...
- Page 3 A. Product Details 1. Bracket receiver 9. Mode button 2. USB port 10. Menu button 3. Reset button 11. LCD Screen 12. Down button 4. Micro SD card slot 13. Record / select button 5. Speaker 6. Operation indicator 14. Up button 7.
-
Page 4: Product Accessories
• Motion detection D. Product Operation 1. Start-Up and Shut-Down: • Starting Up Parkmate Kapture KPT-200 DVR: i. To Start-Up from a powered off state with no charger connected, quickly press the “On/Off” button. Your DVR will enter into video mode and commence recording video;... - Page 5 ii. When the charger is connected, your DVR will automatically enter shut down mode after 5 seconds when your car’s ignition is turned off. iii. When battery power is insufficient, the DVR screen will shut down and the DVR will automatically save the video file.
-
Page 6: Motion Detection Function
6. Playback and Delete: • When in Standby mode, press the “Mode” button and the DVR enters into Playback mode • Press the “Up” or “Down” button to select the preview of the file. • Press the “Record” button to start or stop selected file playback. -
Page 7: Function Directory
• Once motion is detected, the DVR will start recording. • After 8 seconds the DVR will stop recording and return to Motion Detection Standby mode until the next motion has been detected by the DVR. E. Options and system Settings •... - Page 8 Mode Menu Select Settings Remark 4032 x 3024 3648 x 2736 3264 x 2448 2592 x 1944 Higher resolution Resolution 2048 x 1536 = larger file size 1920 x 1080 1.3M 1280 x 960 640 x 480 Continuous Off / On Shooting High quality / Standard / Image Quality...
- Page 9 Mode Menu Select Settings Remark Cancel Delete Current / Delete All Lock Current / Unlock Play Protection Current / All Lock / Back Unlock All 2 seconds / 5 seconds / Slide Show 8 seconds Menu Select Settings Remark MM/DD/YY, DD/MM/YY, Date/Time YY/MM/DD Automatic...
- Page 10 G. Connecting DVR to PC for Download of Video and Photo Data: • When the DVR is connected via the USB cable to a computer, the camera’s red power light turns on • The LCD screen will display Menu Setting Options: “Mass Storage / PC Camera”.
-
Page 11: Product Specification
I. Product Specification Screen 2.0” TFT screen Imaging Sensor 1.0MP Lens 120 degree HD wide-angle lens Camera Rotation 180 degree Minimum 1 Lux 1080P / 720P / 480P Video Resolution Video Format AVI /MJPG 30 fps Frames Image Resolution 12M / 10M / 8M / 5M / 3M / 2M / VGA / 1.3M Photo Format Motion Detection Supported... - Page 12 www.parkmate.com.au...
