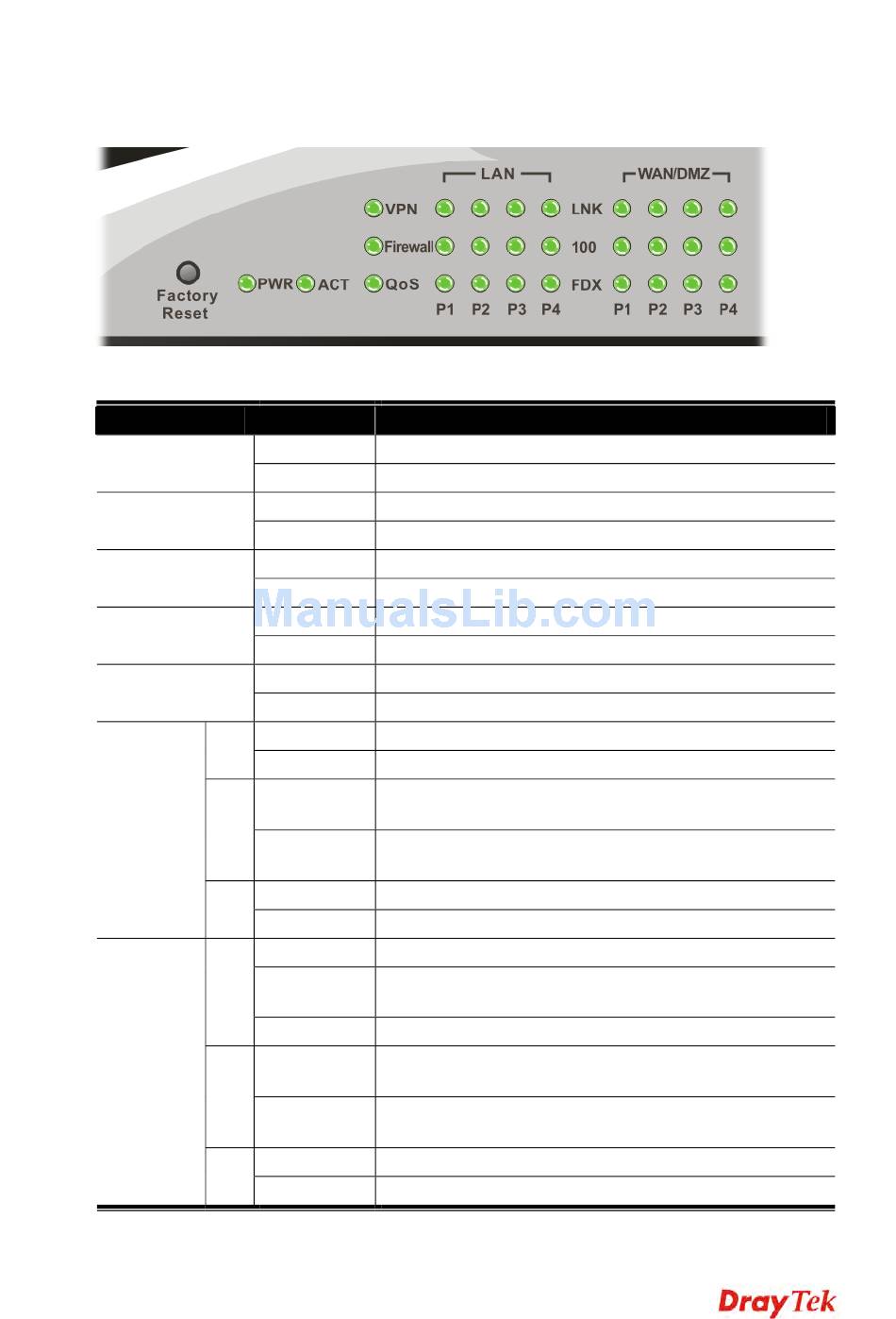

Vigor3300V+ Series Quick Start Guide
l
a
n
a
t
i
o
n
l
a
n
a
t
i
o
n
o
o
n
n
Status
Explanation
On
The router is powered on.
Off
The router is powered off.
On/Blinking
The system is active.
Off
The system is hanged.
On
The VPN tunnel is launched.
Off
The VPN tunnel is closed.
On
The Firewall function is active.
Off
The Firewall function is inactive.
On
The QoS function is active.
Off
The QoS function is inactive.
On
The Ethernet link is established on corresponding port.
Off
No Ethernet link is established.
On
It means that a normal 100 Mbps connection is through
its corresponding port.
Off
It means that a normal 10 Mbps connection is through its
corresponding port.
On
It means a full duplex connection on corresponding port.
Off
It means a half duplex connection on corresponding port.
On
The Ethernet link is established.
Blinking
The data transmission is done through the corresponding
port.
Off
No Ethernet link is established.
On
It means that a normal 100Mbps connection is through its
corresponding port.
Off
It means that a normal 10Mbps connection is through its
corresponding port.
On
It means a full duplex connection on corresponding port.
Off
It means a half duplex connection on corresponding port.
