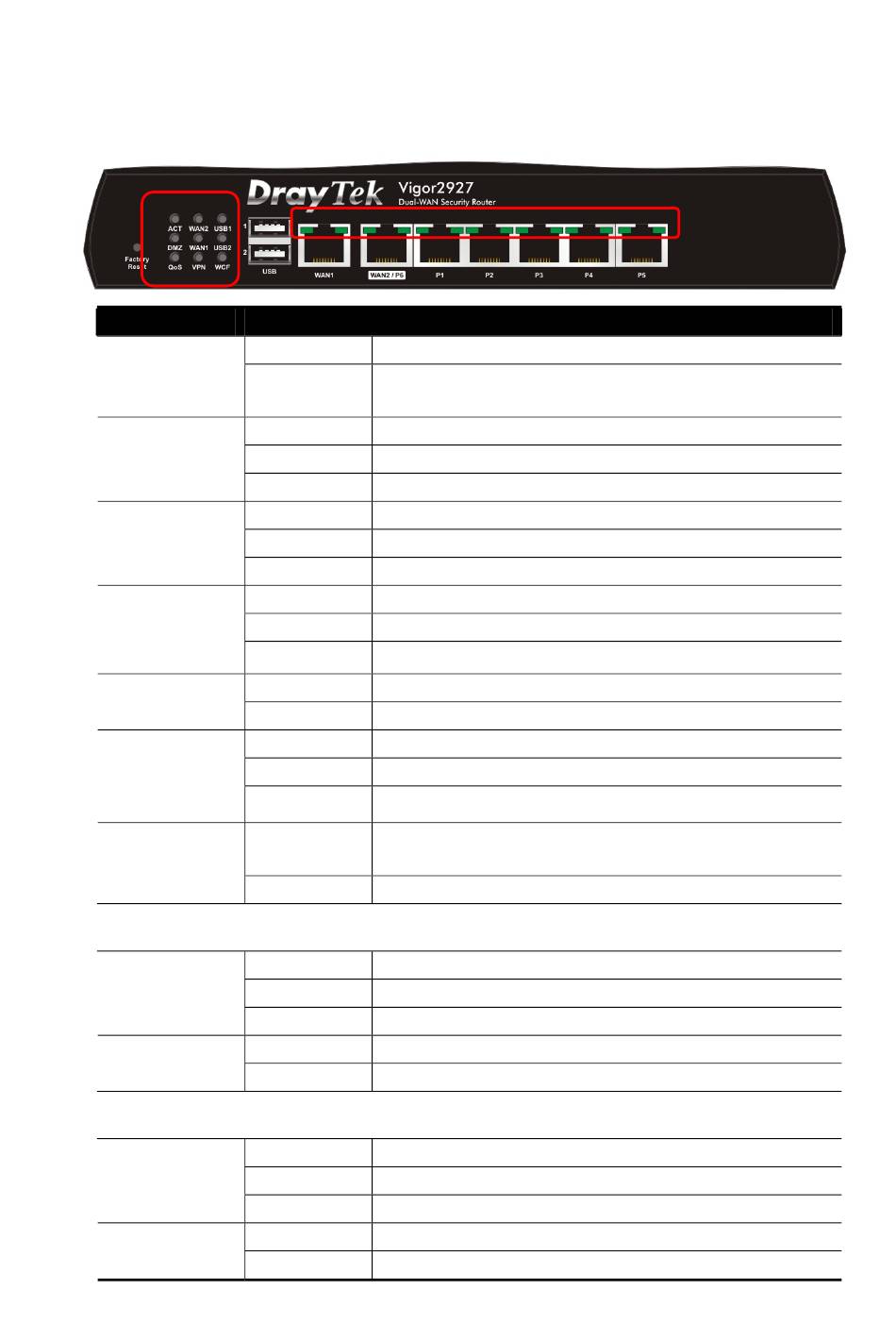

Panel Explanation; Vigor2927 - Draytek Vigor2927 Quick Start Manual

2 . P a n e l E
2 . P a n e l E
2 . 1 V i g o r 2
2 . 1 V i g o r 2
LED
ACT
WAN2/WAN1
USB1/USB2
DMZ
QoS
VPN
WCF
WAN1,WAN2 / P6
Left LED
Right LED
LAN P1-P5
Left LED
Right LED
x p l a n a t i o
x p l a n a t i o
9 2 7
9 2 7
Status Explanation
Off The router is powered off.
The router is powered on and running
Blinking
normally.
On Internet connection is ready.
Off Internet connection is not ready.
Blinking The data is transmitting.
On USB device is connected and ready for use.
Off No USB device is connected.
Blinking The data is transmitting.
On The DMZ function is enabled.
Off The DMZ function is disabled.
Blinking The data is transmitting.
On The QoS function is active.
Off The QoS function is inactive.
On The VPN tunnel is active.
Off VPN services are disabled
Traffic is passing through VPN tunnel.
Blinking
The Web Content Filter is active. (It is enabled
On
from Firewall >> General Setup).
Off WCF is disabled.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps
