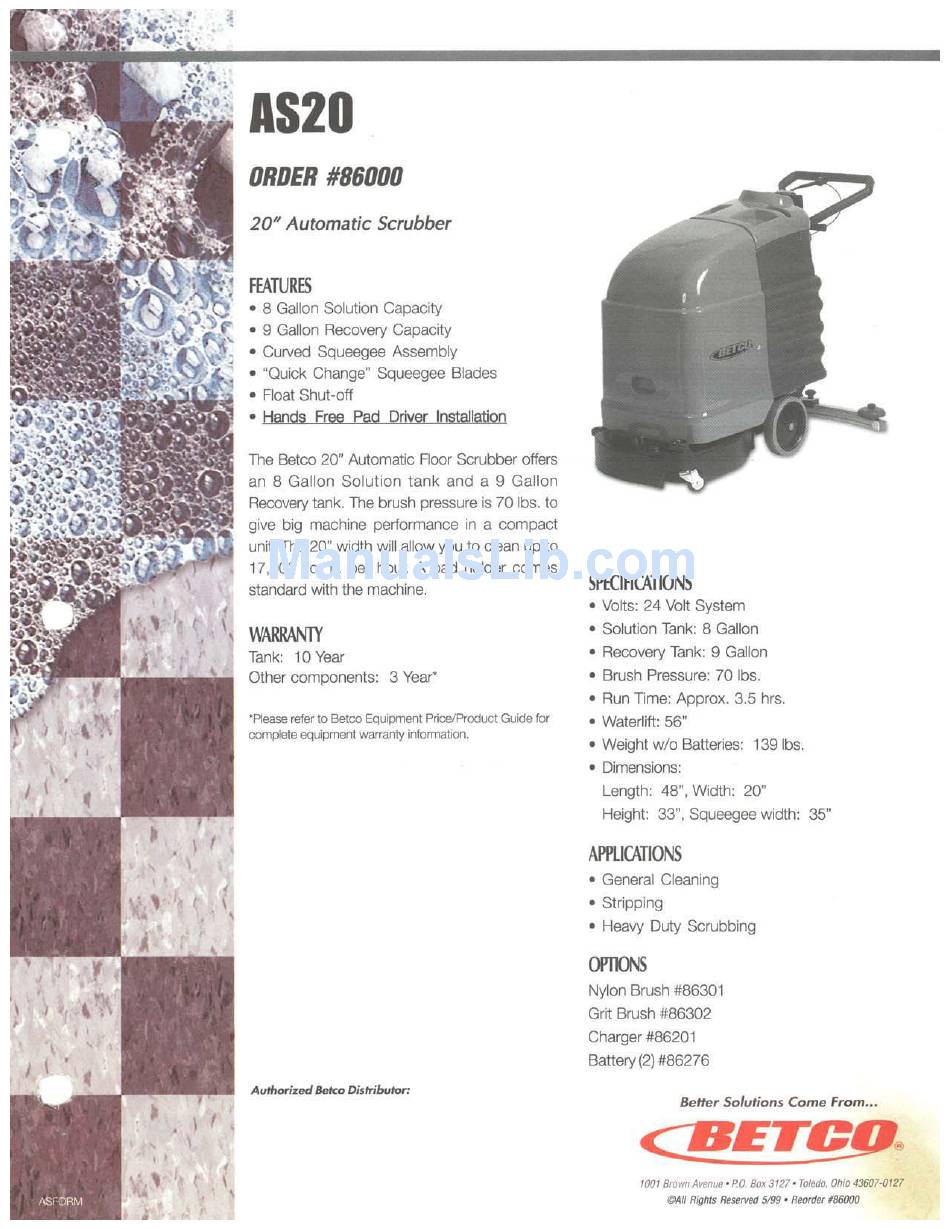

- Page 22 CODE: PF02216BC-2 ab SN from 98L10 DESCRIPTION: REF. CODE DESCRIPTION 1 PL1195WS TANK-HOOD 2 PL1197WS HANDGRIP UNIT 3 PL1199K TANK 4 PL1009 SQUEEGEE 800 5 PL1114 SQUEEGEE SUPPORT 6 PL1201 ELECTRIC UNIT 7 PL1202WS FRAME 8 PL1156 AXLE-PULLEY 9 PL1161K MOTOR 10 PL1163 SMALL WHEEL...
- Page 23 SQUEEGEE 800 SQUEEGEE 800 SQUEEGEE 800 CODE DESCRIPTION GR1503 SQUEEGEE UNIT 1 E89458 Squeegee Knob 2 E89511 Suction Point for AS20 3 E86427 Washer for AS20 4 E86499 Hex Bolt M6x55 SS 5 E86959 Gasket 6 E86850 Knob 7 E86452...
- Page 24 SN from 98E908 DESCRIPTION: SQUEEGEE SUPPORT SAUGFUSSHALTERUNG SUPPORT SUCEUR SOPORTE BOQUILLA SUPPORTO SQUEEGEE REF. CODE DESCRIPTION 1 E86455 AS20 Spring 2 E86887 Squeegee Spring Coupler 3 E86880 Grooveless Shaft Washer 4 E86865 Squeegee Handle 5 E86871 Screw 6 E86873...
- Page 25 ASPIRAZIONE 24V REF. CODE DESCRIPTION SL04282 SCREW E86427 Washer for AS20 SL06030 WASHER E89408 Stop Ring E86449 AS20 Bushing for Vac Motor E86470 18" Hose SL07290 BEARING E86873 E86875 Self-Locking Nut E86460 Cable tie 12" E86485 Hose D80-270 mm E86403...
- Page 26 DESCRIPTION: AXLE-PULLEY ACHSE-RIEMENSCHEIBE ESSIEU-POULIE EJE-POLEA ASSE PULEGGIA REF. CODE DESCRIPTION E86534 E86409 Bearing, 6005 2RS E86533 Bearing spacer E86532 Conveyor E86469 AS20 Cap E86812 Seegeer E86724 Pulley, pipe E86716 Cham Washer E86427 Washer for AS20 E86737 Screw E86468 AS20 Nut...
- Page 27 3 E86667 Bearing, 6001 2RS 4 E86727 Neutral Pulley 5 E89485 Spacer 6 E86666 AS28 Pin 7 E86427 Washer for AS20 8 E86716 Cham Washer 9 E86873 10 E86537 Ring 11 E86499 Hex Bolt M6x55 SS 12 E83310 Bearing, 6203 2RS...
- Page 28 ROUE RUEDA / RUEDECILLA RUOTINO PRESSIONE REF. CODE DESCRIPTION 1 E89486 Screw 2 E86873 3 MP19201 SHEATH 4 E86455 AS20 Spring 5 SL07199 SPRING COUPLING 6 E86758 Washer 7 SL20047 KNOB (o HANDWHEEL) 8 E89464 Screw 9 E86879 Washer 10 SL06053...
- Page 29 8 E86689 AS28 Gasket 9 E86849 Sleeve 10 SL14237 11 E86427 Washer for AS20 12 E86475 AS20 Screw TE M .6-20 13 E86470 18" Hose 14 E86480 Double Wire Clamp 15 E86476 AS20 Membrane Valve - Polyur. 20 SL17140 LEVER / CURSOR...
- Page 30 Terminal D.5,5-2 L7 with Dowel 18 E86869 Screw 20 SL09410 LEVER 21 E86450 Tank Support Handle 22 E86477 AS20 Tie Rod SQ/ECO 450-530 BT 23 E86875 Self-Locking Nut 24 E86486 Screw TE M8-45 25 E86853 Nyloc Hex Nut, M8 Zinc...
- Page 31 11 E86459 AS20 Knob 12 E86689 AS28 Gasket 13 SL14237 14 E86427 Washer for AS20 15 E86475 AS20 Screw TE M .6-20 16 SL07120 CROSS 19 E86759 Plaque 20 E86476 AS20 Membrane Valve - Polyur. 21 E86480 Double Wire Clamp...
- Page 32 REF. CODE DESCRIPTION 2 E86421 Reflector 3 E86423 Bipolar Switch 4 E86989 Control Panel 5 E86496 Circuit Board 6 E89226 Control panel base AS20 7 E89118 Washer 8 SL04177 SCREW 9 SL04176 SCREW 10 E86420 Relay 11 E86702 Cham Washer D8...
- Page 33 RAHMEN CADRE CHASÍS TELAIO REF. CODE DESCRIPTION 1 E89486 Screw 2 E86716 Cham Washer 3 E86427 Washer for AS20 4 SL04145 SCREW 5 E86726 Washer 6 E86853 Nyloc Hex Nut, M8 Zinc 7 E86742 Support 8 E86539 AS20 Axle 9 E86878...
- Page 34 Bearing 7 E86492 AS20 Washer 8 E86853 Nyloc Hex Nut, M8 Zinc 9 E86878 Washer 10 E86431 Silent Blok for AS20 11 E86487 Wheel - Silent Block 12 E86467 AS20 Black Handle 224 13 E86493 AS20 Screw 15 E86494 AS20 Screw...
- Page 35 CODE: pl1206BC ab SN from 01A000 DESCRIPTION: EXTERNAL PARTS EXTERNE TEILE EXTERNES PARTIES EXTERNAS PARTES PARTI ESTERNE REF. CODE DESCRIPTION E86437 HOOD E86436 3 SL0416 SCREW 4 E86424 BRUSH COVER 5 SL1713 TANK 6 E86715 LEVER 7 E89263 HANDGRIP 8 SL0720 CROSS 9 E86328 TANK 11 E86463 WASHER 12 SL0752 SPACER...
- Page 36 CODE: wd27020 ab SN from 02F500 DESCRIPTION: WIRING DIAGRAM SCHALTPLAN SCHEMA ELECTRIQUE ESQUEMA ELECTRICO SCHEMA ELETT. FUNZIONALE WH 1mm² VT 1mm² RD 2.5mm² BK/RD BLACK BROWN WH 1mm² ORANGE YELLOW VT 1mm² VT 1mm² GREEN BLUE YE/RD 1mm² VIOLET GREY BU 1mm²...
